LP1D40008GD - IEC contactor, TeSys Deca, nonreversing, 60A resistive, 4 pole, 2 NO and 2 NC, 125VDC coil, open style

LP1D40008GD

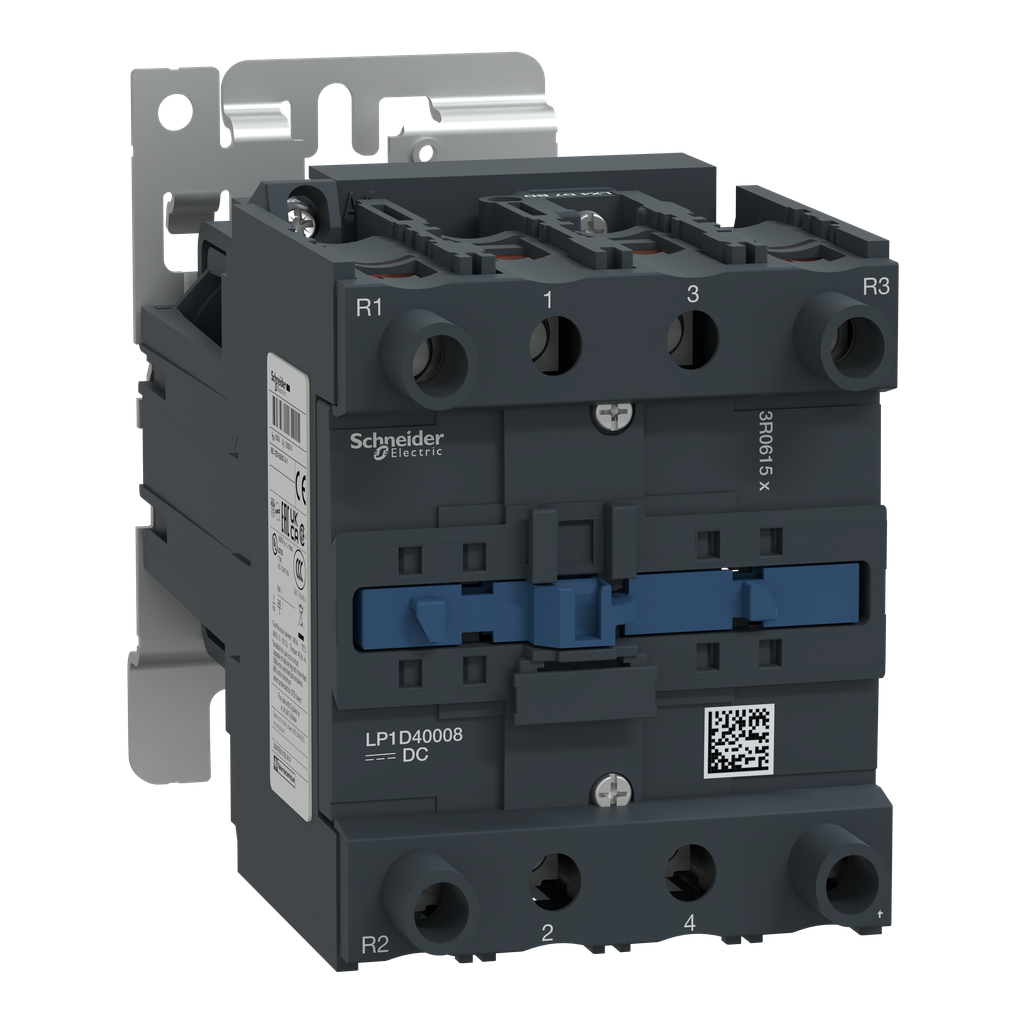

IEC contactor, TeSys Deca, nonreversing, 60A resistive, 4 pole, 2 NO and 2 NC, 125VDC coil, open style

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has two normally open and two normally closed power contacts. Power contacts have a 60A resistive load rating. Contactor is supplied with a 125 VDC coil with transient suppressor module. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 7.17 inches deep. It weighs 4.87 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

[Uc] Control Circuit Voltage	125 V DC
[Ue] Rated Operational Voltage	power circuit <= 1000 V AC 25...400 Hz
Range Of Product	TeSys Deca
Contactor Application	resistive load
Product Or Component Type	contactor
Range	TeSys
Utilisation Category	AC-1
[Ie] Rated Operational Current	60 A 60 °C) <= 440 V AC AC-1 power circuit
Poles Description	4P
Device Short Name	LP1D
Warranty	18 months
Power Dissipation Per Pole	5.4 W AC-1
Average Impedance	1.5 mOhm - Ith 60 A 50 Hz power circuit
[Ith] Conventional Free Air Thermal Current	60 A 60 °C power circuit
Control Circuit Voltage Limits	0.1...0.3 Uc -40-55 °C drop-out DC 0.85...1.1 Uc -40-55 °C operational DC
Mounting Support	rail plate
Contact Compatibility	M3
Control Circuit Type	DC DC standard
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Pollution Degree	3
Hold-In Power Consumption In W	22-22 W 20 °C
Rated Breaking Capacity	800 A 440 V power circuit IEC 60947
Irms Rated Making Capacity	800 A 440 V power circuit IEC 60947
Associated Fuse Rating	80 A gG <= 690 V type 1 power circuit 80 A gG <= 690 V type 2 power circuit
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Pole Contact Composition	2 NO + 2 NC
Connections - Terminals	power circuit screw clamp terminals 1 2.5-25 mm² flexible without cable end power circuit screw clamp terminals 2 2.5-16 mm² flexible without cable end power circuit screw clamp terminals 1 2.5-25 mm² flexible with cable end power circuit screw clamp terminals 2 2.5-10 mm² flexible with cable end power circuit screw clamp terminals 1 2.5-25 mm² solid power circuit screw clamp terminals 2 2.5-16 mm² solid control circuit screw clamp terminals 1 1-4 mm² flexible without cable end control circuit screw clamp terminals 2 1-4 mm² flexible without cable end control circuit screw clamp terminals 1 1-4 mm² flexible with cable end control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end control circuit screw clamp terminals 1 1-4 mm² solid control circuit screw clamp terminals 2 1-4 mm² solid
Coil Technology	built-in bidirectional peak limiting diode suppressor
Time Constant	75 ms
Operating Time	4...19 ms opening 12...26 ms closing
Maximum Operating Rate	3600 cyc/h 60 °C
Tightening Torque	power circuit 8 N.m screw clamp terminals 25-35 mm² hexagonal 4 mm control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm control circuit 1.7 N.m screw clamp terminals Philips No 2 power circuit 5 N.m screw clamp terminals 1-25 mm² hexagonal 4 mm control circuit 1.7 N.m screw clamp terminals pozidriv No 2
Electrical Durability	1.4 Mcycles 60 A AC-1 <= 440 V
Mechanical Durability	10 Mcycles
Inrush Power In W	22-22 W 20 °C)
Compatibility Code	LP1D
Overvoltage Category	III
[Ui] Rated Insulation Voltage	power circuit 690 V IEC 60947-4-1 power circuit 600 V CSA power circuit 600 V UL
[Icw] Rated Short-Time Withstand Current	72 A 40 °C - 10 min power circuit 165 A 40 °C - 1 min power circuit 320 A 40 °C - 10 s power circuit 720 A 40 °C - 1 s power circuit
Protective Cover	without
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1503009EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI1503009EN
Eu Rohs Directive	Compliant
Product Certifications	UL CSA CCC EAC UKCA CB DNV-GL RINA BV LROS (Lloyds register of shipping)
Height	127 mm
Standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
Net Weight	2.21 kg
Flame Retardance	V1 conforming to UL 94
Ip Degree Of Protection	IP20 front face IEC 60529
Mechanical Robustness	shocks contactor open 8 Gn for 11 ms) shocks contactor closed 10 Gn for 11 ms) vibrations contactor opened 2 Gn, 5...300 Hz) vibrations contactor closed 4 Gn, 5...300 Hz)
Operating Altitude	0...9842.52 ft (0...3000 m)
Fire Resistance	850 °C IEC 60695-2-1
Width	85 mm
Depth	182 mm
Permissible Ambient Air Temperature Around The Device	-40-60 °C 60-70 °C with derating
