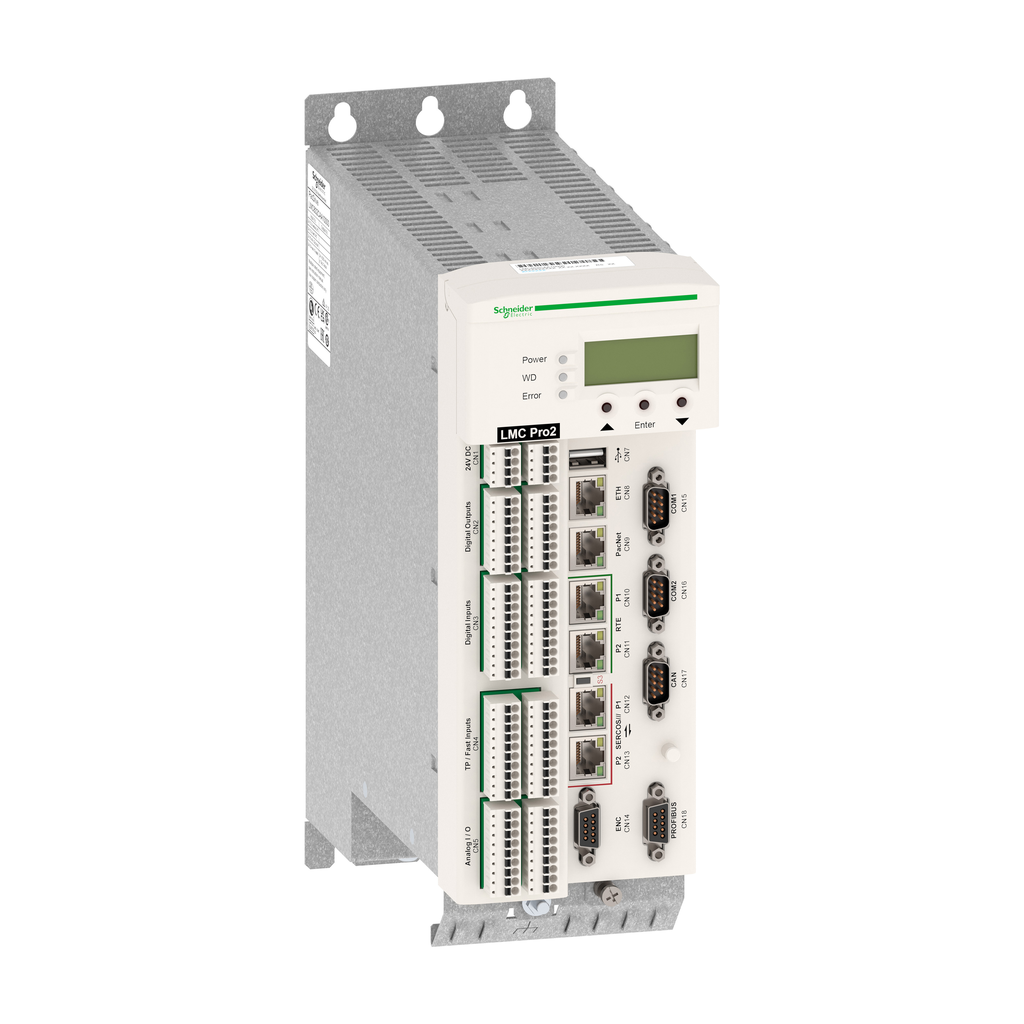

This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 130 axis, 20 discrete inputs, 4 for interrupt input and 16 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 250mA and a power consumption of 36W. It is an IP20 rated product. Its dimensions are 100mm (width) x 243mm (depth) x 310mm (height). It weighs 3.5kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | PacDrive 3 |
---|---|
Product Or Component Type | motion controller |
Input Impedance |
|
Anti Bounce Filtering |
|
Height | 310 mm |
Discrete Input Voltage |
|
Programming Language |
|
Discrete Input Voltage Type | DC |
Power Consumption In W | 36 W |
Discrete Output Number |
|
Net Weight | 3.5 kg |
Discrete Output Current | 250 mA digital output |
Analogue Input Number | 2 |
[Us] Rated Supply Voltage | 24 V DC |
Memory Type |
|
Integrated Connection Type |
|
Discrete Input Current |
|
Analogue Input Resolution | 12 bits |
Width | 100 mm |
Depth | 243 mm |
Product Compatibility | LMC802 |
Analogue Input Type |
|
Supply | power supply 24 VDC, <1 A |
Number Of Axis | 130 |
Maximum Leakage Current | 0.4 mA |
Discrete Input Number |
|
Maximum Number Of I/O Expansion Module | 2 |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1411004EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1411004EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Standards |
|
Ambient Air Temperature For Operation | 5-55 °C |
Ip Degree Of Protection | IP20EN/IEC 60529 |
Vibration Resistance |
|
Shock Resistance | 150 m/s² 6 ms operation)EN/IEC 60721-3-3 |
Pollution Degree | 2 IEC 61131-2 |
Relative Humidity | 5-95 % without condensation |
