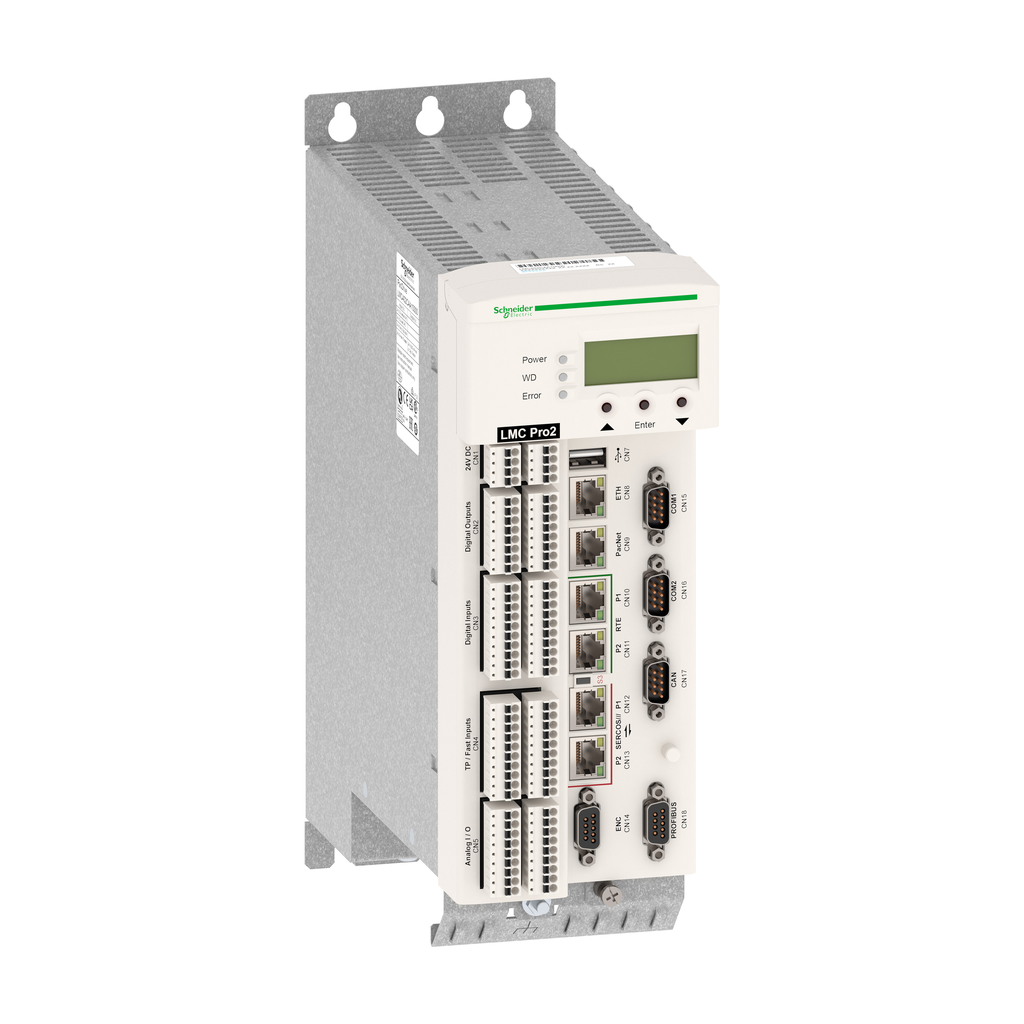

Motion controller LMC402 16 axis - Acc kit - Basic
This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 16 axis, 20 discrete inputs, 4 for interrupt input and 16 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 250mA and a power consumption of 36W. It is an IP20 rated product. Its dimensions are 100mm (width) x 243mm (depth) x 310mm (height). It weighs 3.5kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | PacDrive 3 |
|---|---|
| Product Or Component Type | motion controller |
| Input Impedance |
|
| Anti Bounce Filtering |
|
| Height | 310 mm |
| Discrete Input Voltage |
|
| Programming Language |
|
| Discrete Input Voltage Type | DC |
| Power Consumption In W | 36 W |
| Discrete Output Number |
|
| Net Weight | 3.5 kg |
| Discrete Output Current | 250 mA digital output |
| Analogue Input Number | 2 |
| [Us] Rated Supply Voltage | 24 V DC |
| Memory Type |
|
| Integrated Connection Type |
|
| Discrete Input Current |
|
| Analogue Input Resolution | 12 bits |
| Width | 100 mm |
| Depth | 243 mm |
| Product Compatibility | LMC402 |
| Analogue Input Type |
|
| Supply | power supply 24 VDC, <1 A |
| Number Of Axis | 16 |
| Maximum Leakage Current | 0.4 mA |
| Discrete Input Number |
|
| Maximum Number Of I/O Expansion Module | 2 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1411004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1411004EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Standards |
|
| Ambient Air Temperature For Operation | 5-55 °C |
| Ip Degree Of Protection | IP20EN/IEC 60529 |
| Vibration Resistance |
|
| Shock Resistance | 150 m/s² 6 ms operation)EN/IEC 60721-3-3 |
| Pollution Degree | 2 IEC 61131-2 |
| Relative Humidity | 5-95 % without condensation |
