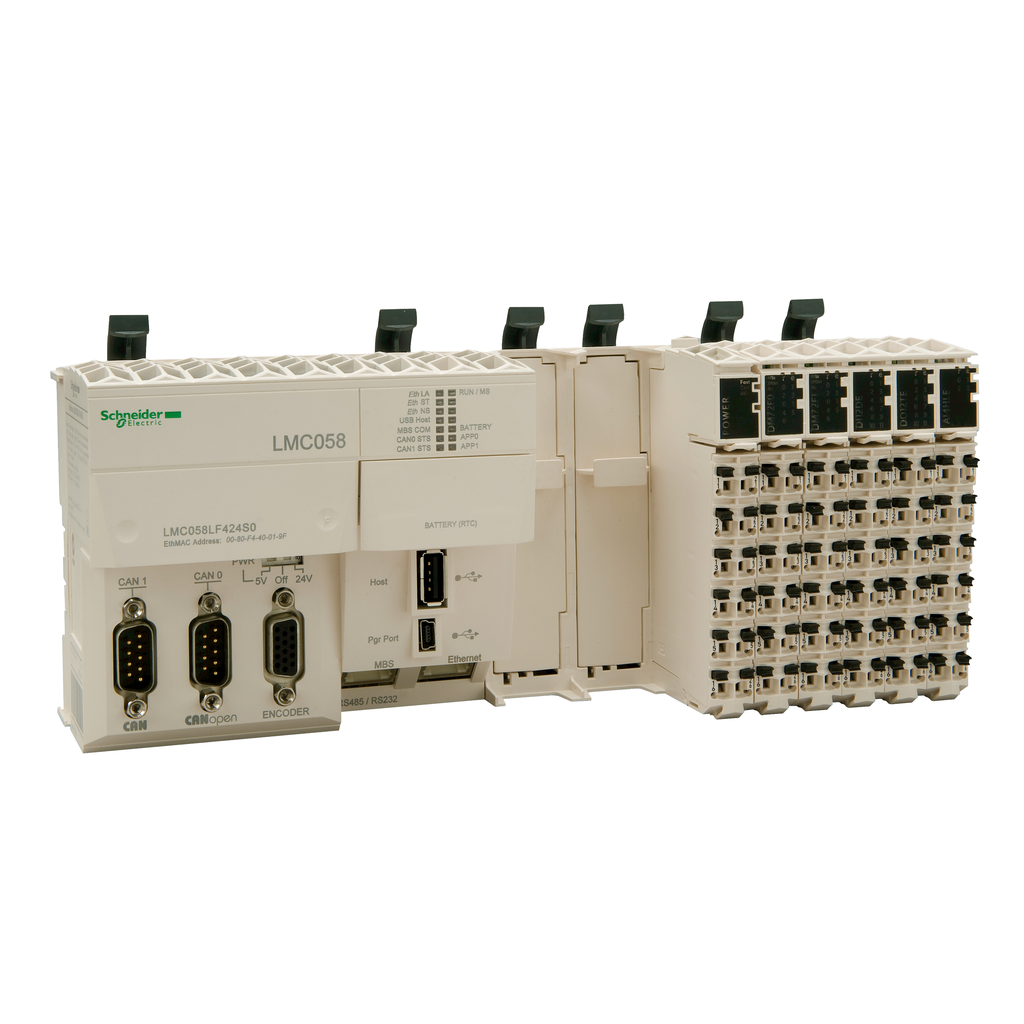

LMC058LF424 – compact base – 42 4 I/O – 24 V DC supply – 2 slots for PCI
LMC058LF424
compact base - 42 + 4 I/O - 24 V DC supply - 2 slots for PCI

This product is part of the Modicon LMC058 range, an offer of motion controllers for coordinated, synchronised and interpolated motion control. This motion controller provides 42 discrete + 4 analogue I/Os and 3V CR2477M lithium battery. It is a compact base with a rated supply voltage of 24V DC and a rated current of 0.04A for embedded expert modules power, 10A for I/O power segment, 0.3A for main supply. It provides 26 totally discrete inputs, 16 totally discrete outputs, and 4 totally analogue inputs. It supports 128MB flash and 64MB RAM memory. It is an IP20 rated product. Its dimensions are 237.5mm (Width) x 85mm (Depth) x 99mm (Height). It weighs 0.77kg. This product is certified by CE, CULus, CSA, C-Tick and GOST-R. It meets UL 508, IEC 61131-2, CSA C22.2 No 213 and CSA C22.2 No 142 standards. Compact and totally expandable, the Modicon Motion Controllers offer performant solutions in terms of motion control for synchronized axis, speed control, high speed counting and communication networks for machine builders. A full range of scalable controllers to design all your applications, thanks to a single software suite, SoMachine, including the same Motion Libraries based on PLCopen, Embedded I/O and numerous field buses.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product Modicon LMC058
Product Or Component Type motion controller
Discrete I/O Number 42
Battery Type 3 V CR2477M lithium
Warranty 18 months
Discrete Input Logic
  • sink fast input
  • sink regular input
  • source input
Data Backed Up battery variables of type retain and retain persistent
Input Impedance
  • 6 kOhm fast input
  • 6 kOhm regular input
Anti Bounce Filtering 2 µs...4 ms configurable fast input/regular input and fast output
Line Rated Current
  • 0.04 A embedded expert modules power
  • 10 A I/O power segment
  • 0.3 A main supply
Maximum Cable Distance Between Devices <30 m fast input
Height 99 mm
Discrete Output Logic source
Discrete Input Voltage 24 V
Integrated Connection Type
  • 1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps
  • 1 CAN port male SUB-D 9 CANmotion bus or CANopen master
  • 1 CAN port male SUB-D 9 CANopen master
  • 1 encoder female SUB-D 15
  • 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX
  • 1 isolated serial link mini B USB 480 Mbit/s
  • 1 isolated serial link USB type A 480 Mbit/s
  • 2 free slots PCI
Mounting Support symmetrical DIN rail
Discrete Input Voltage Type DC
Power Consumption In W 14.14 W
Transmission Rate
  • 10 kbit/s 5000-5000 m CANopen
  • 1000 kbit/s 4-4 m CANopen
  • 125 kbit/s 500-500 m CANopen
  • 20 kbit/s 2500-2500 m CANopen
  • 250 kbit/s 250-250 m CANopen
  • 50 kbit/s 1000-1000 m CANopen
  • 500 kbit/s 100-100 m CANopen
  • 800 kbit/s 25-25 m CANopen
Discrete Output Number
  • 12 output
  • 4 fast output
Marking CE
Local Signalling
  • 1 LED CAN0 STS
  • 1 LED green/red CAN1 STS
  • 1 LED green/yellow MBS COM
  • 1 LED per channel APP0
  • 1 LED red APP1
Net Weight 0.77 kg
Discrete Output Current 4 mA fast output
Voltage State 0 Guaranteed
  • <= 5 V fast input
  • <= 5 V fast output
  • <= 5 V regular input
Configurable Filtering Time
  • 0 ms fast input/regular input and fast output
  • 1.5 ms fast input/regular input and fast output
  • 12 ms fast input/regular input and fast output
  • 4 ms fast input/regular input and fast output
Discrete Output Voltage 24 V DC
Analogue Input Number 4
Voltage State 1 Guaranteed
  • >= 15 V fast input
  • >= 15 V fast output
  • >= 15 V regular input
Memory Type
  • 128 MB flash
  • 64 MB RAM
Supply Voltage Limits 20.4-28.8 V
Battery Life 1.5 year(s)
Output Voltage Limits 19.2...28.8 V
Peak Current
  • 100 kA <= 70 s)main supply
  • 25 kA <= 500 s)I/O power segment
  • 50 kA <= 150 s)embedded expert modules power
  • 1.2 A > 70 s)main supply
Discrete Input Current
  • 4 mA fast input
  • 4 mA regular input
Analogue Input Resolution 12 bits
Realtime Clock
  • without any user calibration < 30 s/month 25-25 °C
  • with user calibration <= 6 s/month
Width 237.5 mm
Depth 85 mm
Analogue Input Type
  • current 0...20 mA
  • current 4...20 mA
  • voltage +/- 10 V
[Us] Rated Supply Voltage 24 V DC embedded expert modules power
Insulation
  • between channels and internal logic 500 V AC
  • non-insulated between channels
Discrete Input Number
  • 10 fast input
  • 12 input
  • 4 regular input
Counting Input Number 8 200 kHz
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP110507EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
Toxic Heavy Metal Free Yes
Reach Regulation Free of Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1105007EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • cULus
  • CSA
  • C-tick
  • GOST-R
Standards
  • UL 508
  • IEC 61131-2
  • CSA C22.2 No 213
  • CSA C22.2 No 142
Storage Altitude 0-3000 m
Electromagnetic Compatibility
  • electrostatic discharge immunity test 8 kV on contact) EN/IEC 61000-4-2
  • conducted RF disturbances EN/IEC 61000-4-6
  • conducted and radiated emissions CISPR 11
  • electrostatic discharge immunity test 4 kV on air) EN/IEC 61000-4-2
  • susceptibility to electromagnetic fields 1 V/m 2...2.7 GHz) EN/IEC 61000-4-3
  • susceptibility to electromagnetic fields 10 V/m 80...2000 MHz) EN/IEC 61000-4-3
  • electrical fast transient/burst immunity test 1 kV I/O) EN/IEC 61000-4-4
  • electrical fast transient/burst immunity test 1 kV shielded cable) EN/IEC 61000-4-4
  • electrical fast transient/burst immunity test 2 kV power lines) EN/IEC 61000-4-4
  • surge immunity test 0.5 kV differential mode) EN/IEC 61000-4-5
  • surge immunity test 1 kV common mode) EN/IEC 61000-4-5
Ambient Air Temperature For Operation
  • 0-55 °C without derating horizontal installation)
  • 0-60 °C with derating factor horizontal installation)
  • 0-50 °C vertical installation)
Ip Degree Of Protection IP20IEC 61131-2
Vibration Resistance
  • 1 gn 8.4-150 Hz DIN rail
  • 3.5 mm 5-8.4 Hz DIN rail
Shock Resistance 15 gn 11 ms
Disturbance Radiated/Conducted CISPR 11
Pollution Degree 2 IEC 60664
Ambient Air Temperature For Storage -25-70 °C
Relative Humidity 5-95 % without condensation
Operating Altitude 0...6561.68 ft (0...2000 m)
