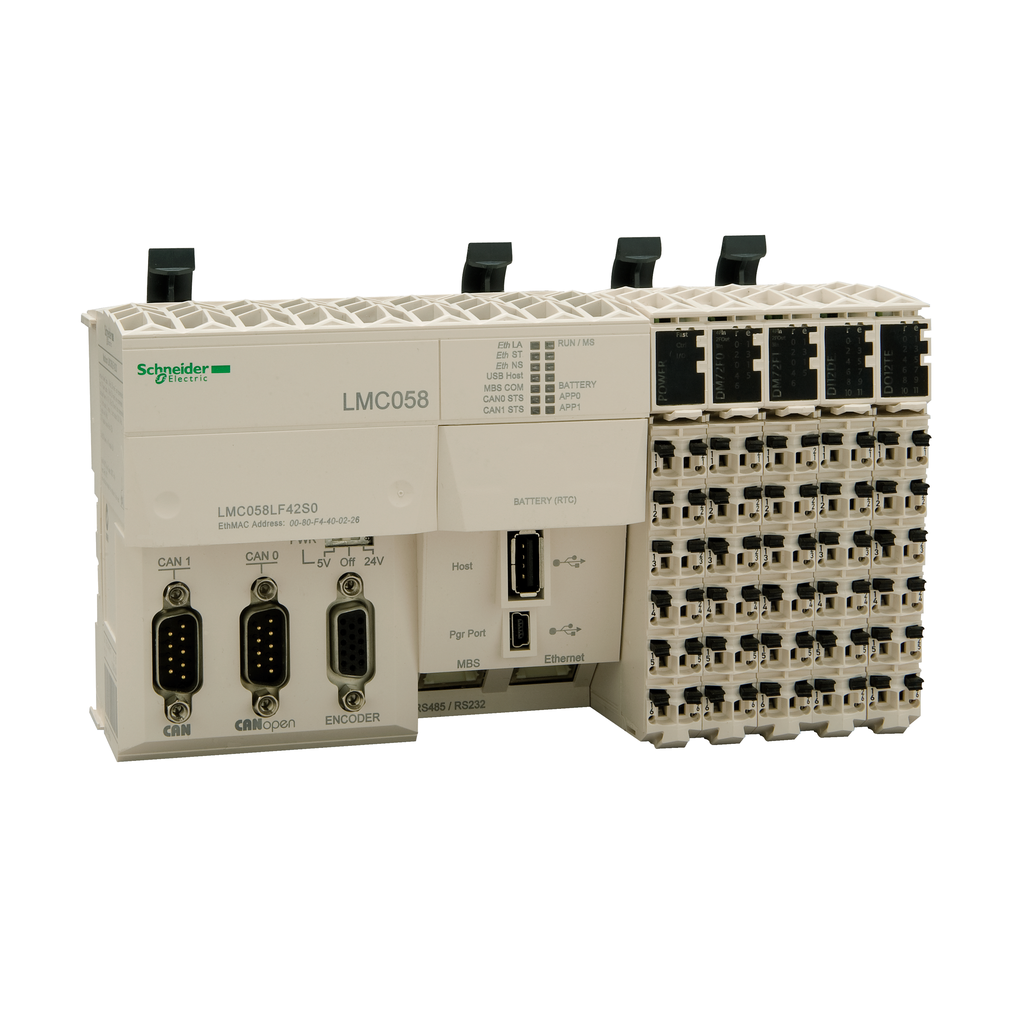

This product is part of the Modicon LMC058 range, an offer of motion controllers for coordinated, synchronised and interpolated motion control. This motion controller provides 42 discrete I/Os and 3V CR2477M lithium battery. It is a compact base with a rated supply voltage of 24V DC and a rated current of 0.04A for embedded expert modules power, 10A for I/O power segment, 0.28A for main supply. It provides 26 totally discrete inputs, 10 for fast input, 12 for input, 4 for regular input and 16 totally discrete outputs, 12 for outputs, 4 for fast outputs. It supports 128MB flash and 64MB RAM memory. It is an IP20 rated product. Its dimensions are 175mm (Width) x 85mm (Depth) x 99mm (Height). It weighs 0.55kg. This product is certified by CE, CULus, CSA, C-Tick and GOST-R. It meets UL 508, IEC 61131-2, CSA C22.2 No 213 and CSA C22.2 No 142 standards. Compact and totally expandable, the Modicon Motion Controllers offer performant solutions in terms of motion control for synchronized axis, speed control, high speed counting and communication networks for machine builders. A full range of scalable controllers to design all your applications, thanks to a single software suite, SoMachine, including the same Motion Libraries based on PLCopen, Embedded I/O and numerous field buses.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon LMC058 |
---|---|
Product Or Component Type | motion controller |
Discrete I/O Number | 42 |
Battery Type | 3 V CR2477M lithium |
Warranty | 18 months |
Discrete Input Logic |
|
Data Backed Up | battery variables of type retain and retain persistent |
Input Impedance |
|
Anti Bounce Filtering | 2 µs...4 ms configurable fast input/regular input and fast output |
Line Rated Current |
|
Maximum Cable Distance Between Devices | <30 m fast input |
Height | 99 mm |
Discrete Output Logic | source |
Discrete Input Voltage | 24 V |
Integrated Connection Type |
|
Mounting Support | symmetrical DIN rail |
Discrete Input Voltage Type | DC |
Power Consumption In W | 13.03 W |
Transmission Rate |
|
Discrete Output Number |
|
Marking | CE |
Local Signalling |
|
Net Weight | 0.55 kg |
Discrete Output Current | 4 mA fast output |
Voltage State 0 Guaranteed |
|
Configurable Filtering Time |
|
Discrete Output Voltage | 24 V DC |
Voltage State 1 Guaranteed |
|
Memory Type |
|
Supply Voltage Limits | 20.4-28.8 V |
Battery Life | 1.5 year(s) |
Output Voltage Limits | 19.2...28.8 V |
Peak Current |
|
Discrete Input Current |
|
Realtime Clock |
|
Width | 175 mm |
Depth | 85 mm |
[Us] Rated Supply Voltage | 24 V DC embedded expert modules power |
Insulation |
|
Discrete Input Number |
|
Counting Input Number | 8 200 kHz |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110507EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1105007EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Standards |
|
Storage Altitude | 0-3000 m |
Electromagnetic Compatibility |
|
Ambient Air Temperature For Operation |
|
Ip Degree Of Protection | IP20IEC 61131-2 |
Vibration Resistance |
|
Shock Resistance | 15 gn 11 ms |
Disturbance Radiated/Conducted | CISPR 11 |
Pollution Degree | 2 IEC 60664 |
Ambient Air Temperature For Storage | -25-70 °C |
Relative Humidity | 5-95 % without condensation |
Operating Altitude | 0...6561.68 ft (0...2000 m) |
