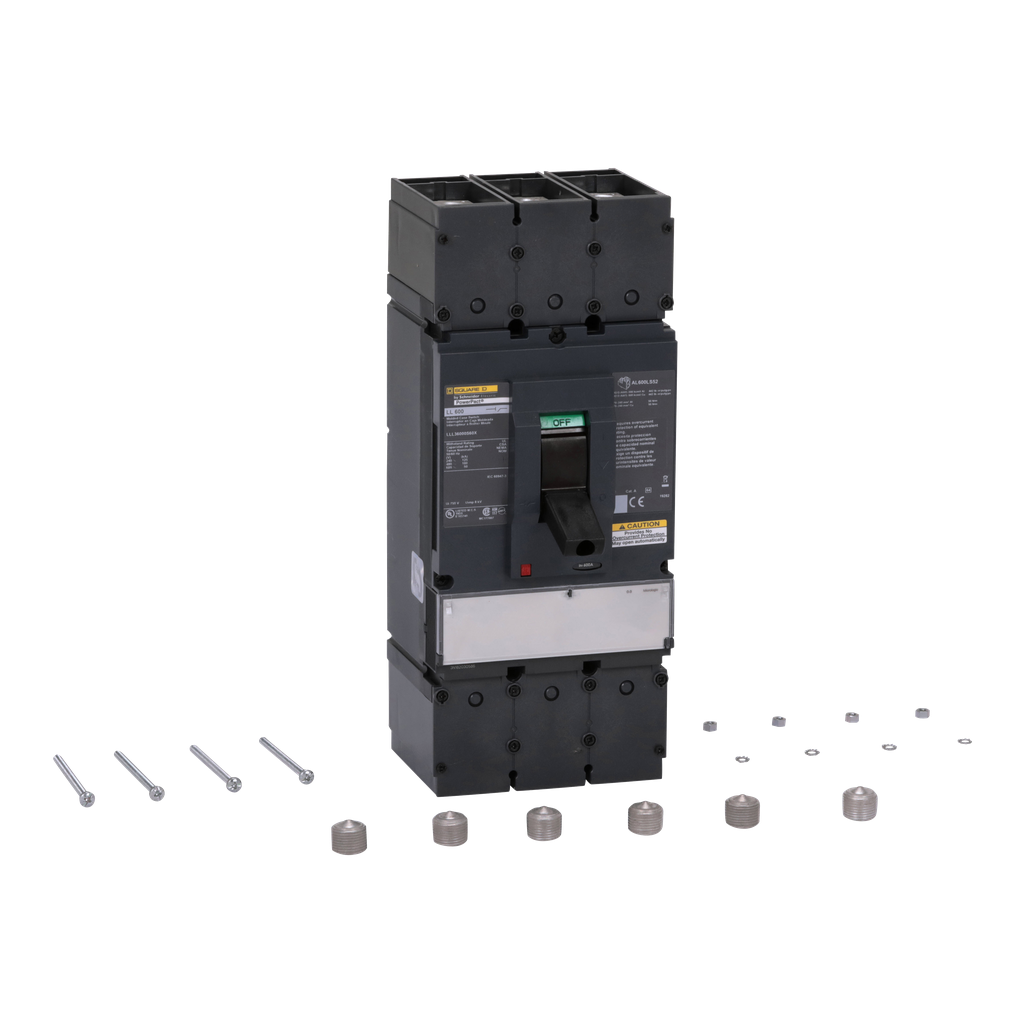

LLL36000S60X
Automatic switch, PowerPact L, 600A, 3 pole, 600VAC, 50kA, lugs, magnetic
The automatic switches are similar in construction to, use the same accessories, and offer the same connection possibilities as the L-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. PowerPacT L-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This unit has lugs on both the line and load sides. This PowerPacT L, 600A, 3 pole, automatic switch has a withstand current rating of 50kA at 600VAC. PowerPacT L automatic switches comply to UL and CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | PowerPact L |
|---|---|
| Circuit Breaker Type | L-Frame |
| Product Or Component Type | automatic switch |
| Trip Unit Technology | magnetic |
| Warranty | 18 months |
| Terminal Identifier | AL600LS52K3 |
| Height | 13.38 in |
| Tightening Torque | 50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil) |
| Breaking Capacity Code | L |
| Magnetic Tripping Current | 6600-6600 A |
| Electrical Connection |
|
| Mounting Mode | unit mount |
| Short-Circuit Withstand |
|
| Poles Description | 3P |
| Line Rated Current | 600 A |
| Width | 5.51 in |
| Depth | 6.61 in |
| [Ue] Rated Operational Voltage | 600 V AC |
| Awg Gauge | x AWG 2/0...500 kcmil ( aluminium/copper ) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2206029EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2206029EN |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
