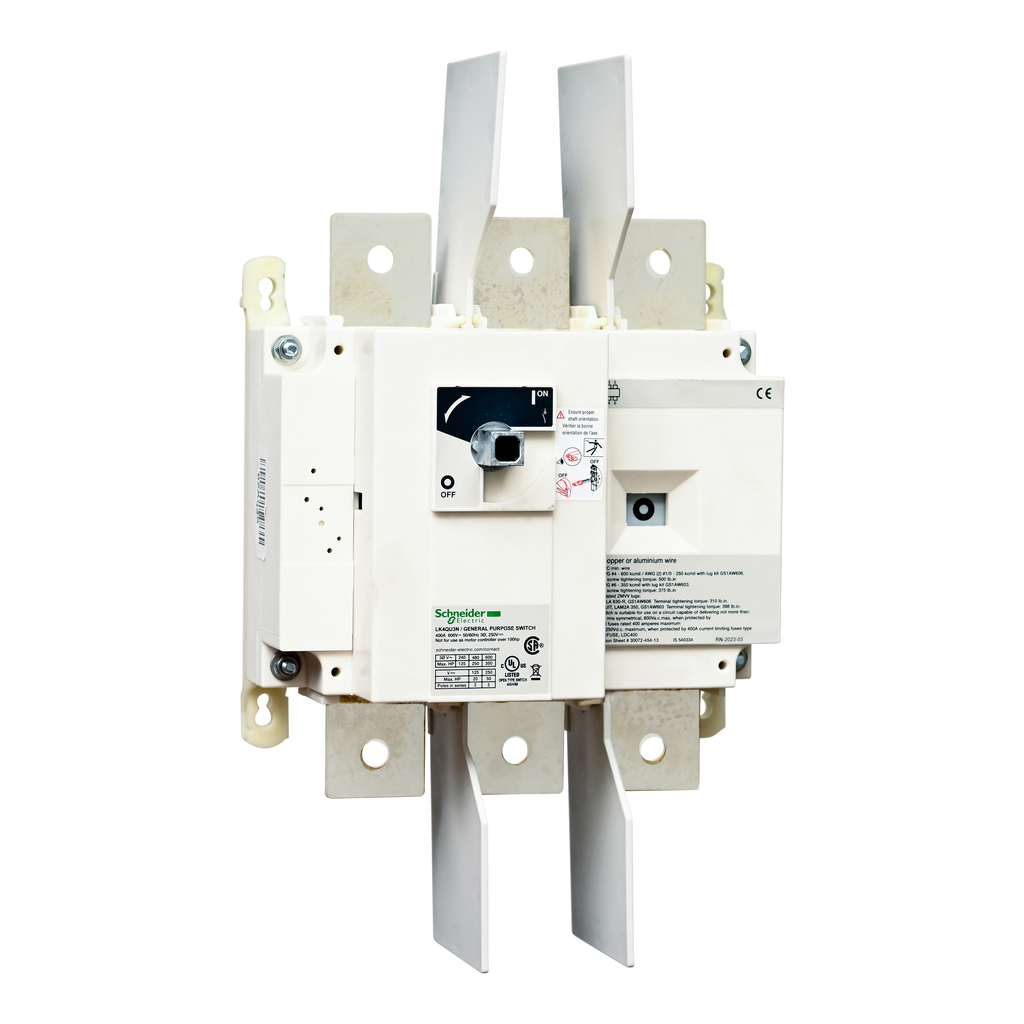

Disconnect Switch, TeSys LK, nonfusible, 400A, 600 V, HP rated, 3 pole, rotary handle, up to 200kA SCCR
TeSys LK4 non fusible disconnect switches are compact or standard sized switches that break and make power circuits, on and off loads, and provide safety isolation. This 3 pole non fusible disconnect switch has a 400 ampere rating. It can be used in applications up to 600 VAC or VDC. This nonfusible disconnect switch has a 125 HP rating at 240 VAC, a 250 HP rating at 480 VAC, a 350 HP rating at 600 VAC, a 20 HP rating at 125 VDC and a 50 HP rating at 240 VDC. This disconnect switch is operated with a rotary handle. This 400A disconnect switch has a 200kA short circuit current rating (SCCR) when used with Type J fuses. Each terminal has a lug that will accept one 4 AWG to 600 kcmil copper or aluminum wire. The disconnect switch is 10.20 inches tall, 9.05 inches wide and 4.92 inches deep. TeSys LK his motor circuit protector is UL Listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Disconnector Device Type | non-fusible disconnect switch |
|---|---|
| Product Or Component Type | Disconnect Switch |
| Product Name | TeSys LK |
| Range | TeSys |
| Suitability For Isolation | yes |
| Warranty | 18 months |
| [Icw] Rated Short-Time Withstand Current | 48 kA |
| Network Frequency | 50/60 Hz |
| Rated Power In W |
|
| [Ue] Rated Operational Voltage | 600 V AC 50/60 Hz |
| Height | 260 mm |
| Type Of Operating Handle |
|
| Mounting Support | plate |
| Network Type |
|
| [Ui] Rated Insulation Voltage | 1000 V |
| [Uimp] Rated Impulse Withstand Voltage | 12 kV IEC |
| Control Type | rotary handle |
| Connections - Terminals | lugs-ring terminals 1 16-16 mm² |
| Electrical Durability | 1000 cycles |
| Mechanical Durability | 6000 cycles |
| Poles Description | 3P |
| Rated Power In Hp |
|
| [Ie] Rated Operational Current |
|
| Width | 230 mm |
| Depth | 128 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Standards |
|
