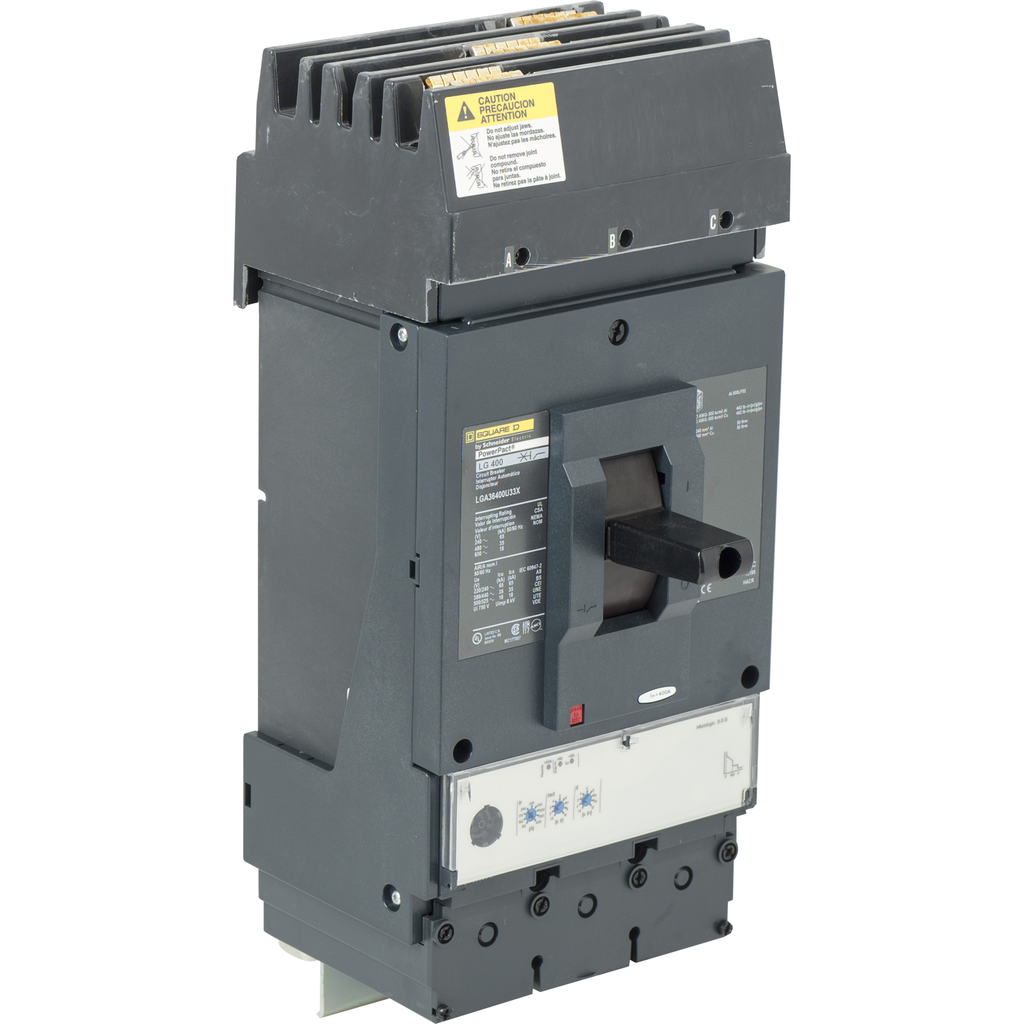

Product Or Component Type | circuit breaker |
---|---|
Product Name | PowerPact L |
Range | PowerPact |
Device Application | distribution |
Device Short Name | L-Frame |
Warranty | 18 months |
Mounting Mode | I-Line bracket) |
Network Frequency | 50/60 Hz |
Terminal Identifier | AL600LS52K3 |
[Ics] Rated Service Breaking Capacity |
|
Trip Unit Technology | electronic, standard, MicroLogic 3.3 S, LSI |
Trip Unit Name | MicroLogic 3.3 S |
Height | 340 mm |
[Ue] Rated Operational Voltage | 480/277 V AC 50/60 Hz IEC 60947-3 |
Tightening Torque |
|
Mounting Support | bracket |
Breaking Capacity Code | J |
Local Signalling |
|
Number Of Slots |
|
Protection Technology | current limiter |
Electrical Connection |
|
Mounting Height | 6 in |
Net Weight | 6.2 kg |
[Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
Control Type | toggle |
Circuit Breaker Application | HACR rated |
Wire Stripping Length |
|
Line Rated Current | 600-600 A |
Utilisation Category | category A |
Long Time Pick-Up Adjustment Range | 0.25...1 x In |
Continuous Current Rating | 80 % |
Breaking Capacity |
|
[Ui] Rated Insulation Voltage | 750 V IEC 60947-2 |
Suitability For Isolation | yes IEC 60947-2 |
Communication Interface |
|
Poles Description | 3P |
Awg Gauge | 2 x AWG 2/0...500 kcmil aluminium/copper |
Color | Black |
Width | 140 mm |
Depth | 110 mm |
Phase Connection | ABC |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1406010EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI1406010EN |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | -2-70 °C |
Standards |
|
Product Certifications |
|
Ip Degree Of Protection | front cover IP40 |
Pollution Degree | 3 IEC 60947-1 |
Ambient Air Temperature For Storage | -50-85 °C |
Operating Altitude |
|
