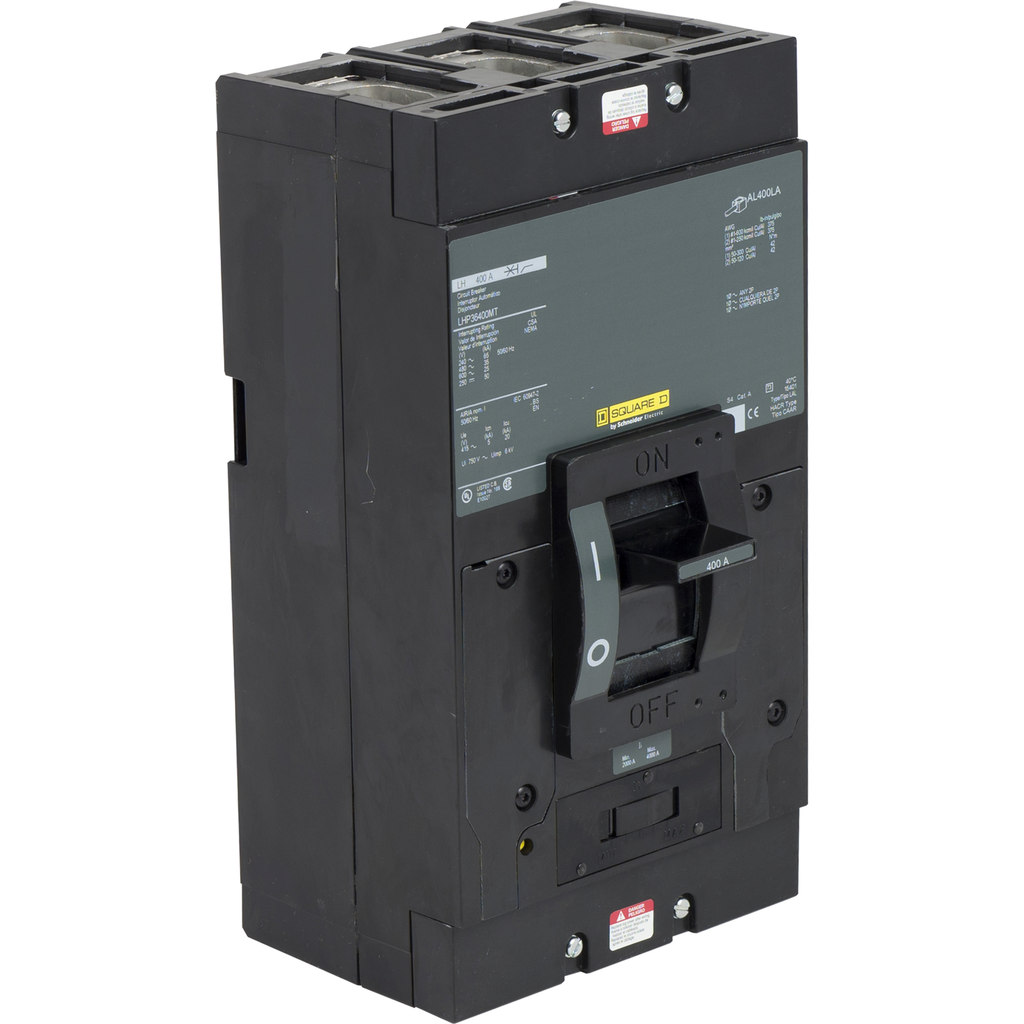

LHP36400MT
Circuit breaker, LH, unit mount, 400A, 3 pole, 25kA, 600VAC, 50kA, 250VDC, plug on shroud
Specifications
| Trip Unit Technology | thermal-magnetic |
|---|---|
| Product Or Component Type | circuit breaker |
| Warranty | 18 months |
| Circuit Breaker Application | HACR rated |
| Terminal Identifier | AL400LA |
| Height | 12.5 in |
| Mounting Mode | unit mount |
| Tightening Torque |
|
| Breaking Capacity Code | H |
| Magnetic Tripping Current | 4000-4000 A |
| Poles Description | 3P |
| Line Rated Current | 400 A |
| Width | 6 in |
| Electrical Connection |
|
| Depth | 4 in |
| Magnetic Hold Current | 2000 A |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1410004EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Compliant |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications |
|
