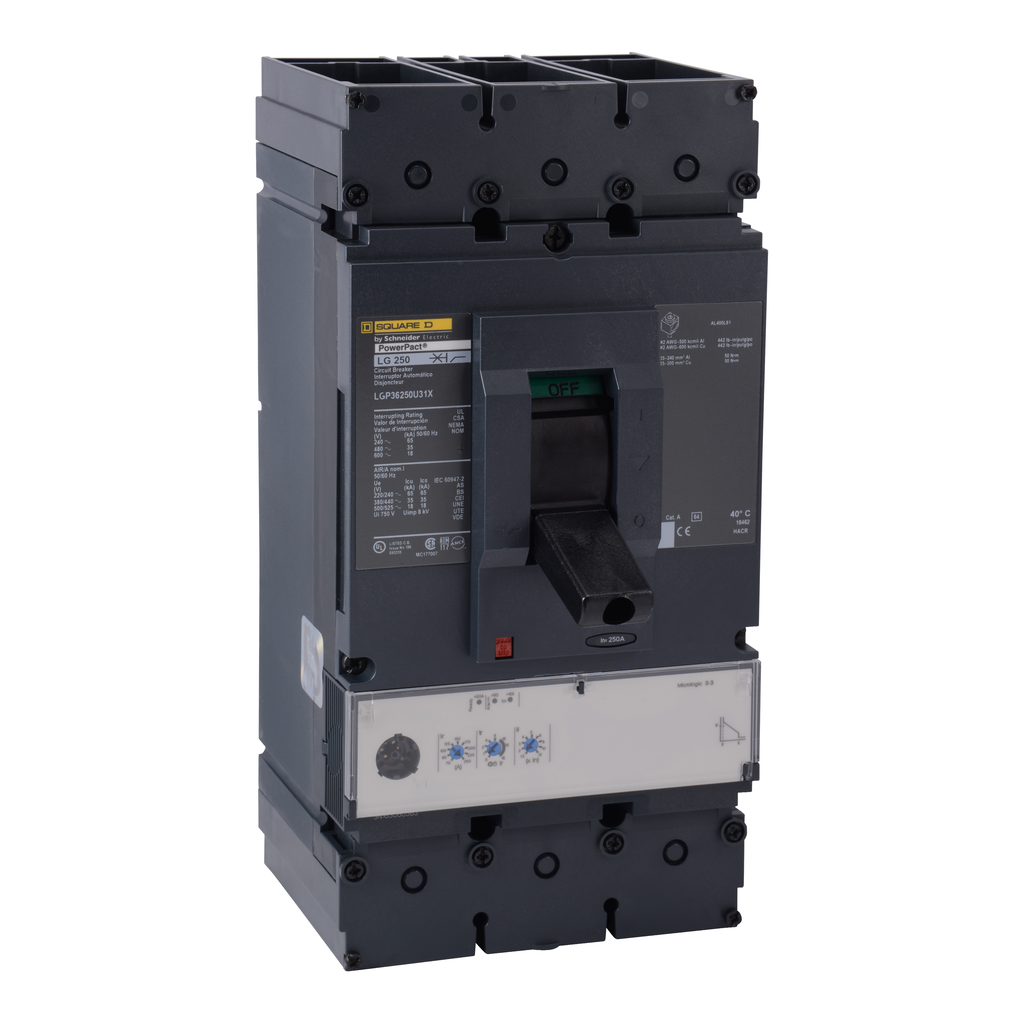

Product Or Component Type | circuit breaker |
---|---|
Product Name | PowerPact L |
Device Application | distribution |
Device Short Name | L-Frame |
Range | PowerPact |
Warranty | 18 months |
Circuit Breaker Application | HACR rated |
Mounting Mode | unit mount lug) |
Network Frequency | 50/60 Hz |
Wire Stripping Length | 31 mm |
Terminal Identifier | AL400L61K3 |
Line Rated Current | 250-250 A |
Utilisation Category | category A |
[Ics] Rated Service Breaking Capacity |
|
Long Time Pick-Up Adjustment Range | 0.25...1 x In |
Trip Unit Technology | electronic, standard, MicroLogic 3.3, LI |
Trip Unit Name | MicroLogic 3.3 |
Height | 340 mm |
Continuous Current Rating | 80 % |
Breaking Capacity |
|
[Ui] Rated Insulation Voltage | 750 V IEC 60947-2 |
Suitability For Isolation | yes IEC 60947-2 |
[Ue] Rated Operational Voltage | 600 V AC 50/60 Hz IEC 60947-3 |
Communication Interface |
|
Tightening Torque |
|
Mounting Support | lug |
Breaking Capacity Code | G |
Poles Description | 3P |
Local Signalling |
|
Number Of Slots |
|
Awg Gauge |
|
Color | Black |
Width | 140 mm |
Protection Technology | current limiter |
Electrical Connection |
|
Depth | 110 mm |
Net Weight | 6.2 kg |
[Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947-2 |
Control Type | toggle |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI2206029EN |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2206029EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Ambient Air Temperature For Operation | -2-70 °C |
Pollution Degree | 3 IEC 60947-1 |
Ambient Air Temperature For Storage | -50-85 °C |
Standards |
|
Product Certifications |
|
Operating Altitude |
|
Ip Degree Of Protection | front cover IP40 |
