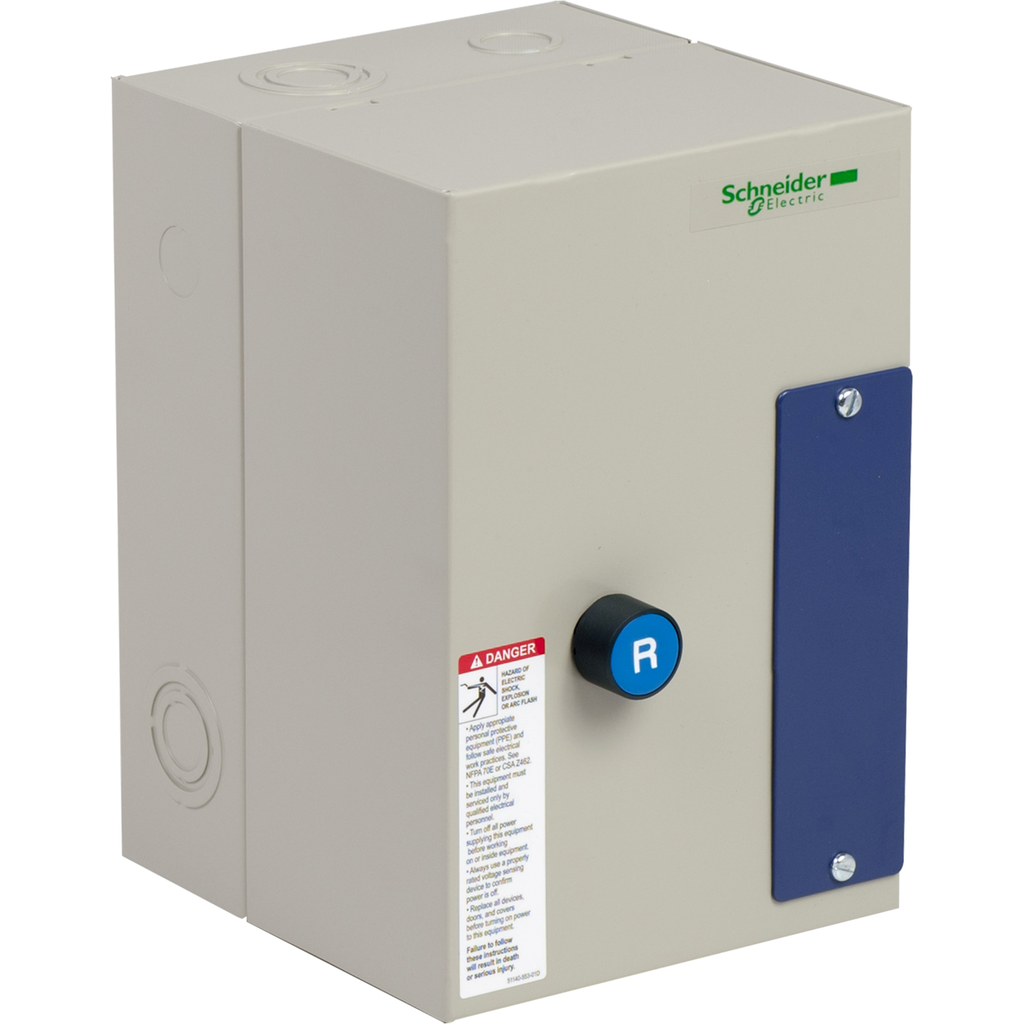

IEC Starter, TeSys LE1, full voltage non reversing, unfused, 12A, 5HP at 460VAC, 120VAC 50/60Hz coil, NEMA 1
TeSys LE1 enclosed IEC full voltage starters are available in Type 1 and Type 12/3R enclosures. The enclosed TeSys LE1 starters use TeSys D contactors and standard TeSys D accessories and all Insta-Kits control units and control power transformer kits. This enclosed IEC full voltage starter has a LC1D12G7 contactor. This enclosed IEC starter is without an line protection. Contactor has a 3HP at 208VAC, 3HP at 230VAC, 7.5HP at 460VAC and 10HP at 600VAC 3 phase ratings. Contactor has a 1/2HP at 120VAC and 2HP at 240VAC single phase ratings. Contactor has a 120VAC 50/60Hz coil. Contactor has one normally open and one normally closed auxiliary contact. Enclosed starter is not supplied with an overload relay or control transformer. Enclosure is a general purpose sheet steel that is rated NEMA Type 1. This TeSys LE1 IEC encosed starter is UL Listed, CSA certified and IEC certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Motor Starter Type | non reversing |
|---|---|
| Range Of Product | Instakits |
| Product Or Component Type | full voltage starter |
| Warranty | 18 months |
| [Uc] Control Circuit Voltage | 600 V AC |
| [Ue] Rated Operational Voltage | 120 V AC 50/60 Hz |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Maximum Horse Power Rating |
|
| Location Of Connection | line |
| [Ie] Rated Operational Current Ac | 12 A |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111273EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications |
|
| Nema Degree Of Protection | NEMA 1 steel |
