LDB410KO

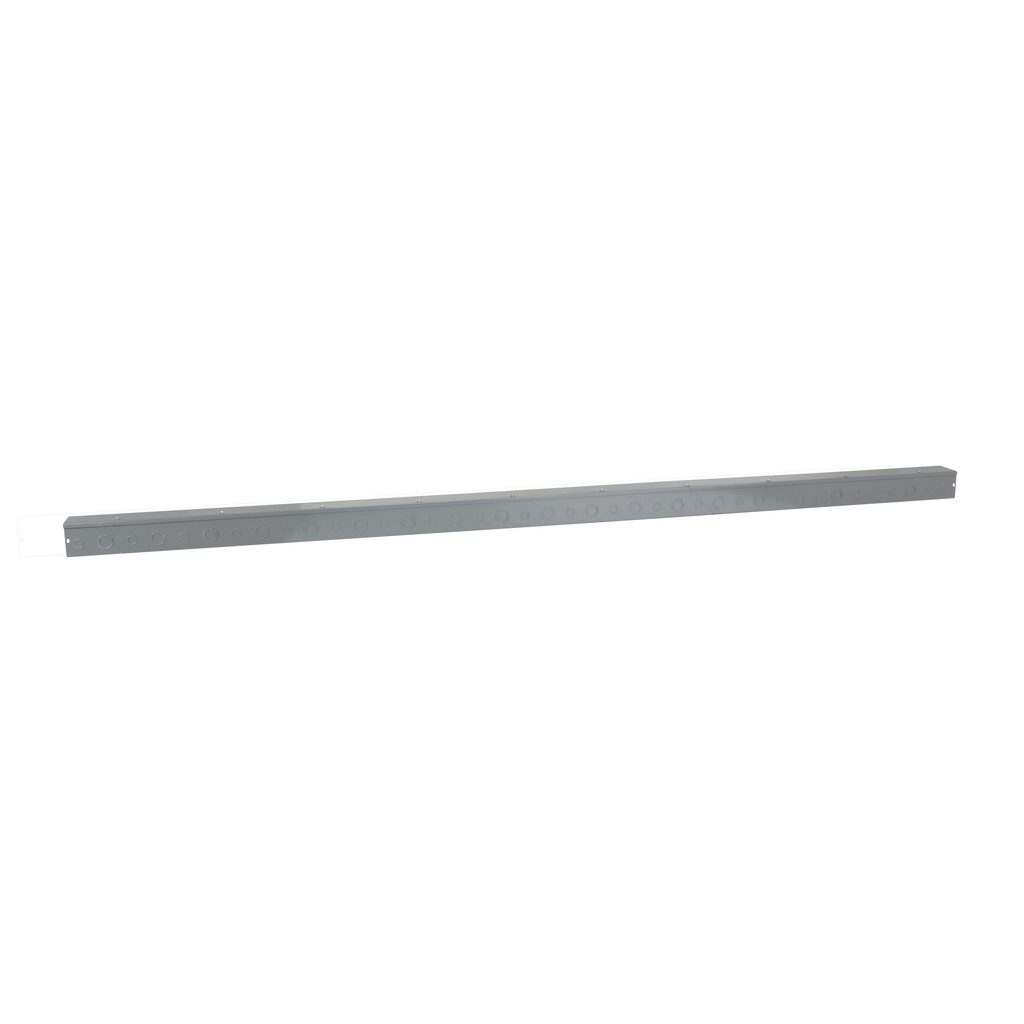

Wireway, Square-Duct, 4 inch by 4 inch, 10 feet long, with knock outs, hinged cover, N1 paint, NEMA 1
Square-Duct outdoor raintight wireway is used to protect electrical wiring against rain, sleet, and physical damage. Raintight troughs are designed for ganging meter devices, panelboards, switches, and circuit breaker enclosures. Each length is a completely enclosed section with a removable cover that has provisions for sealing. This Square-Duct raintight trough is 4 inches by 4 inches and 10 feet long. This wireway is constructed of 16 gauge galvanized steel and is rated NEMA Type 3R. Square-Duct wireway is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications |
|
|---|---|
| Cover Type | hinged cover |
| Range Of Product | SQUARE-Duct |
| Enclosure Material | steel 16 gauge with knock-outs |
| Nema Degree Of Protection | NEMA 1 |
| Surface Finish | Gray polyester powder ANSI 49 |
| Trunking Length | 10 ft |
| Product Or Component Type | straight length |
| Trunking Dimension | 4 x 4 in |
| Warranty | 18 months |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Free Of Svhc | Yes |
