LC7K0910M7 - Contactor, TeSys K, 3P, AC-3, lt or eq to 440V 9A, 1 NO aux., 220 to 230VAC coil

LC7K0910M7

Contactor, TeSys K, 3P, AC-3, lt or eq to 440V 9A, 1 NO aux., 220 to 230VAC coil

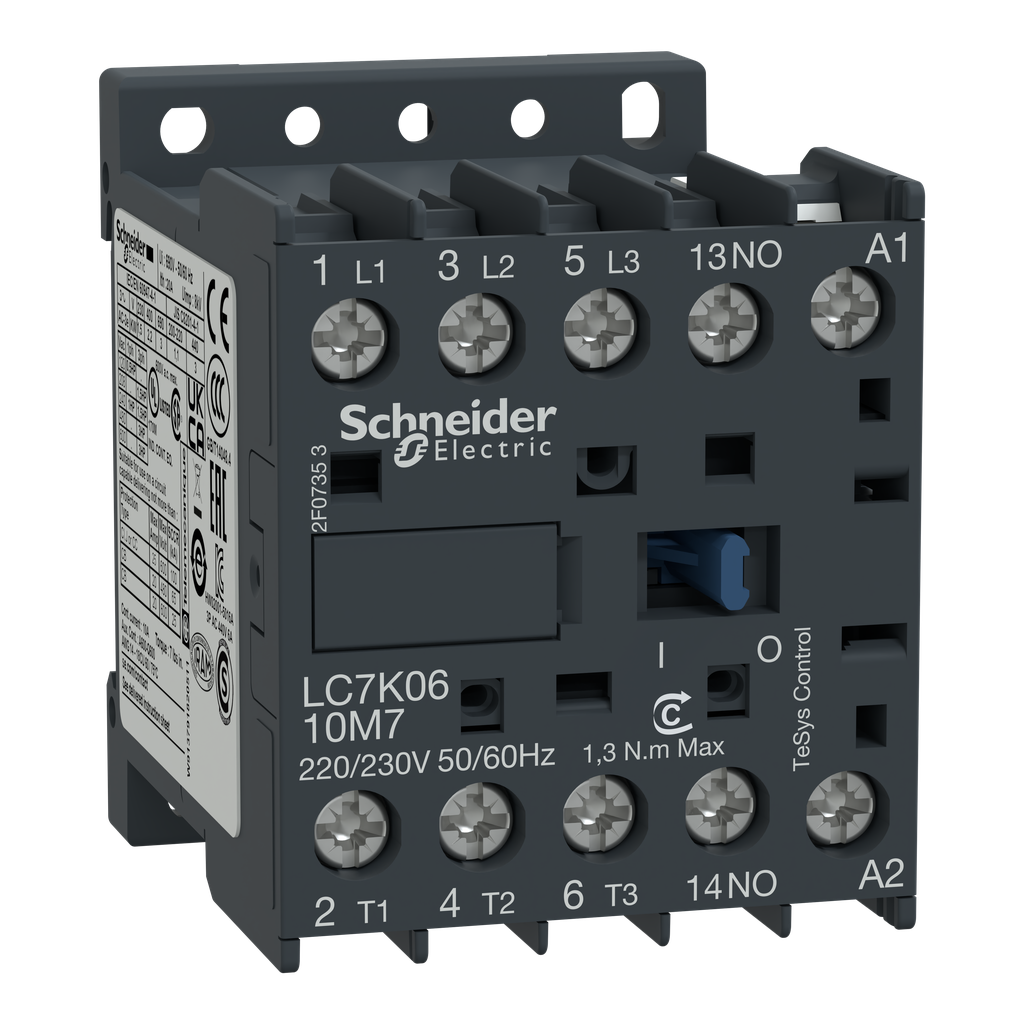

TeSys K contactor, 3 poles (3NO), 9A/690V AC-3, for motor applications up to 4kW@400V. It provides a 220-230V 50/60Hz AC coil with rectifier incorporated and surge suppressor, 1NO built-in auxiliary contact, connection by screw clamp terminals. Silent contactor recommended for use in areas sensitive to noise and high interference mains supplies. Very compact, DIN-rail mounting and screw fixing, it procures reliability and durability to standard applications. Multi-standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Contactor Application	resistive load motor control
Product Or Component Type	contactor
Range	TeSys
Device Application	control
Device Short Name	LC7K
Warranty	18 months
Minimum Switching Current	5 mA signalling circuit
Mechanical Robustness	shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27 shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27 shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27 shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27 shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
[Uc] Control Circuit Voltage	220...230 V AC 50/60 Hz
[Ue] Rated Operational Voltage	power circuit <= 690 V AC <= 400 Hz signalling circuit <= 690 V AC <= 400 Hz
Height	58 mm
Average Impedance	3 mOhm - Ith 20 A 50 Hz power circuit
Auxiliary Contact Composition	1 NO
Control Circuit Voltage Limits	operational 0.85...1.1 Uc 50 °C) drop-out >= 0.10 Uc 50 °C)
Non Overlap Distance	0.5 mm
[Ith] Conventional Free Air Thermal Current	20 A 60 °C power circuit 10 A 50 °C signalling circuit
Mounting Support	rail plate
Control Circuit Type	AC 50/60 Hz silent
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Insulation Resistance	> 10 MOhm signalling circuit
Rated Breaking Capacity	110 A 220...230 V IEC 60947 110 A 380...400 V IEC 60947 110 A 415 V IEC 60947 110 A 440 V IEC 60947 80 A 500 V IEC 60947 70 A 660...690 V IEC 60947
Irms Rated Making Capacity	110 A AC power circuit IEC 60947 110 A AC signalling circuit IEC 60947
Motor Power Kw	2.2 kW 220...230 V AC 50/60 Hz AC-3 4 kW 380...415 V AC 50/60 Hz AC-3 4 kW 440/690 V AC 50/60 Hz AC-3 2.2 kW 220...230 V AC 50/60 Hz AC-3e 4 kW 380...415 V AC 50/60 Hz AC-3e 4 kW 440/690 V AC 50/60 Hz AC-3e 2.2 kW 220...230 V AC 50/60 Hz AC-4 4 kW 380...415 V AC 50/60 Hz AC-4 4 kW 440/690 V AC 50/60 Hz AC-4
Associated Fuse Rating	25 A gG <= 440 V power circuit 25 A aM power circuit 10 A gG signalling circuit IEC 60947 10 A gG signalling circuit VDE 0660
Net Weight	0.225 kg
[Uimp] Rated Impulse Withstand Voltage	8 kV
Inrush Power In Va	3-3 VA 20 °C)
Connections - Terminals	screw clamp terminals 1 1.5-4 mm²solid screw clamp terminals 1 0.75-4 mm²flexible without cable end screw clamp terminals 1 0.34-2.5 mm²flexible with cable end screw clamp terminals 2 1.5-4 mm²solid screw clamp terminals 2 0.75-4 mm²flexible without cable end screw clamp terminals 2 0.34-1.5 mm²flexible with cable end
Pole Contact Composition	3 NO
Utilisation Category	AC-3 AC-3e AC-1 AC-4
[Ie] Rated Operational Current	9 A 60 °C) <= 440 V AC AC-3 power circuit 9 A 60 °C) <= 440 V AC AC-3e power circuit 20 A 60 °C) <= 690 V AC AC-1 power circuit
Minimum Switching Voltage	17 V signalling circuit
Maximum Operating Rate	3600 cyc/h
Signalling Circuit Frequency	<= 400 Hz
Electrical Durability	1.3 Mcycles 9 A AC-3 <= 440 V 1.3 Mcycles 9 A AC-3e <= 440 V 0.16 Mcycles 20 A AC-1 <= 690 V 0.02 Mcycles 54 A AC-4 <= 440 V
Mechanical Durability	10 Mcycles
Auxiliary Contacts Type	instantaneous 1 NO
Poles Description	3P
Hold-In Power Consumption In Va	3-3 VA 20 °C)
Operating Time	30...40 ms coil energisation and NO closing 30 ms coil de-energisation and NO opening
Width	45 mm
Tightening Torque	0.8-1.3 N.m screw clamp terminals Philips No 2 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm 0.8-1.3 N.m screw clamp terminals pozidriv No 2
Overvoltage Category	III
Depth	57 mm
[Ui] Rated Insulation Voltage	power circuit 600 V UL 508 power circuit 690 V IEC 60947-4-1 signalling circuit 690 V IEC 60947-4-1 signalling circuit 690 V IEC 60947-5-1 signalling circuit 600 V UL 508 power circuit 600 V CSA C22.2 No 14 signalling circuit 600 V CSA C22.2 No 14
[Icw] Rated Short-Time Withstand Current	90 A 50 °C - 1 s power circuit 85 A 50 °C - 5 s power circuit 80 A 50 °C - 10 s power circuit 60 A 50 °C - 30 s power circuit 45 A 50 °C - 1 min power circuit 40 A 50 °C - 3 min power circuit 20 A 50 °C - >= 15 min power circuit 80 A - 1 s signalling circuit 90 A - 500 ms signalling circuit 110 A - 100 ms signalling circuit
Heat Dissipation	3-3 W
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1503003EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1503003EN
Eu Rohs Directive	Compliant
Product Certifications	CB Scheme CCC UL CSA EAC CE UKCA
Standards	EN/IEC 60947-4-1 GB/T 14048.4 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1
Flame Retardance	V1 conforming to UL 94 requirement 2 conforming to NF F 16-101 requirement 2 conforming to NF F 16-102
Ambient Air Temperature For Storage	-50-80 °C
Protective Treatment	TC IEC 60068 TC DIN 50016
Ip Degree Of Protection	IP2X VDE 0106
Operating Altitude	6561.68 ft (2000 m) without derating
