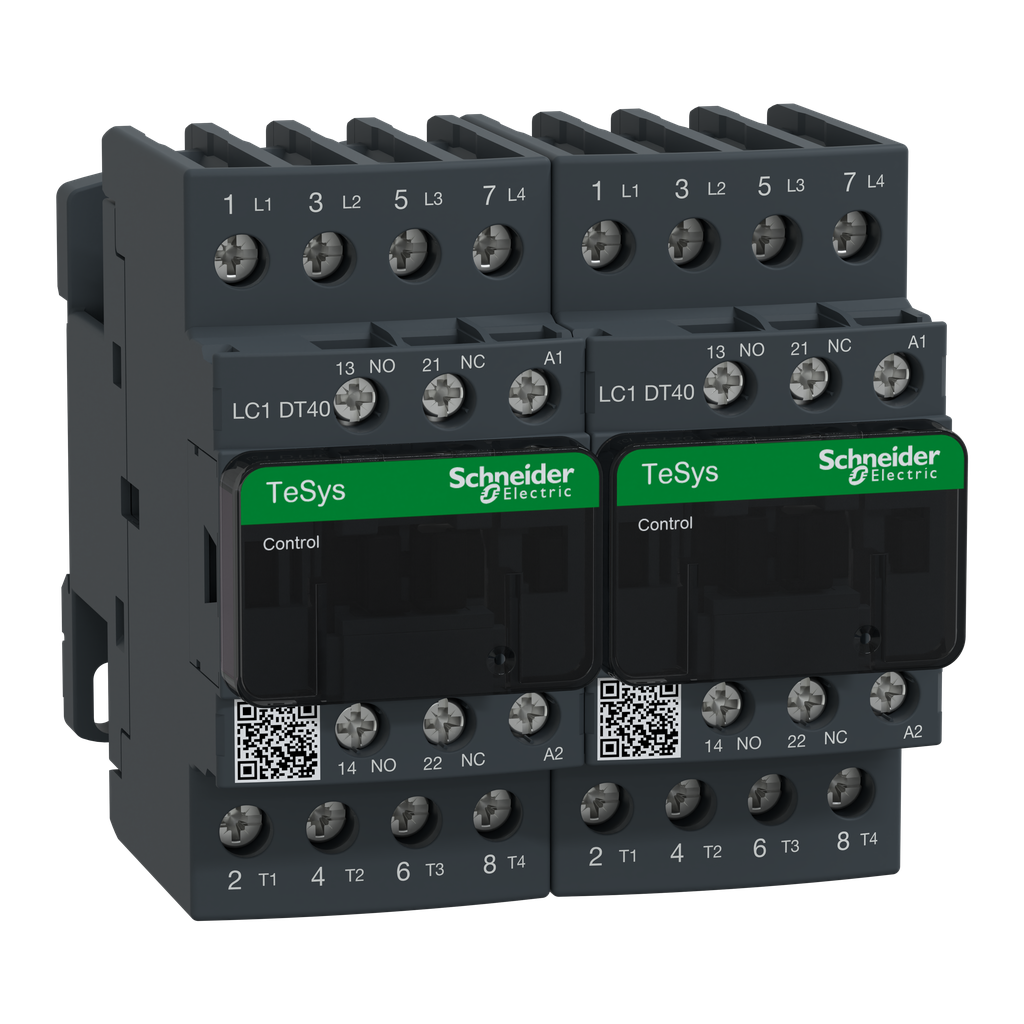

TeSys D changeover contactor, 4 poles (4NO), for non-inductive load applications up to 40A/690V AC-1. It provides 230V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired changeover power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueInterlocking Type | mechanical |
---|---|
[Uc] Control Circuit Voltage | 220 V AC 50/60 Hz |
[Ue] Rated Operational Voltage |
|
Power Dissipation Per Pole | 3.2 W AC-1 |
Average Impedance | 2 mOhm - Ith 40 A 50 Hz power circuit |
Auxiliary Contact Composition | 1 NO + 1 NC |
[Ith] Conventional Free Air Thermal Current |
|
Mounting Support |
|
Control Circuit Type | AC 50/60 Hz |
Standards |
|
Safety Reliability Level |
|
Contactor Application | resistive load |
Rated Breaking Capacity | 450 A 440 V power circuit IEC 60947 |
Product Or Component Type | changeover contactor |
Product Certifications |
|
Irms Rated Making Capacity |
|
Product Name | TeSys Deca |
Associated Fuse Rating |
|
[Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
Connections - Terminals |
|
Range |
|
Pole Contact Composition | 4 NO |
Device Presentation | preassembled with reversing power busbar |
Utilisation Category |
|
Operating Time |
|
[Ie] Rated Operational Current | 40 A 60 °C) <= 440 V AC AC-1 power circuit |
Maximum Operating Rate | 3600 cyc/h 60 °C |
Electrical Durability | 1.4 Mcycles 40 A AC-1 <= 440 V |
Tightening Torque |
|
Poles Description | 4P |
Overvoltage Category | III |
[Ui] Rated Insulation Voltage |
|
Mechanical Durability | 15 Mcycles |
Device Short Name | LC2D |
[Icw] Rated Short-Time Withstand Current |
|
Protective Cover | with |
Warranty | 18 months |
Non-Overlap Time |
|
Minimum Switching Current | 5 mA signalling circuit |
Control Circuit Voltage Limits |
|
Insulation Resistance | > 10 MOhm signalling circuit |
Inrush Power In Va |
|
Coil Technology | without built-in suppressor module |
Minimum Switching Voltage | 17 V signalling circuit |
Signalling Circuit Frequency | 25...400 Hz |
Heat Dissipation | 2-3 W 50/60 Hz |
Auxiliary Contacts Type |
|
Hold-In Power Consumption In Va |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110229EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Circularity Profile | ENVEOLI1102029EN |
Eu Rohs Directive | Compliant |
Mechanical Robustness |
|
Ambient Air Temperature For Operation |
|
Height | 91 mm |
Climatic Withstand |
|
Pollution Degree | 3 |
Net Weight | 0.85 kg |
Flame Retardance | V1 conforming to UL 94 |
Ambient Air Temperature For Storage | -60-80 °C |
Protective Treatment | TH IEC 60068-2-30 |
Ip Degree Of Protection | IP20 front face IEC 60529 |
Operating Altitude | 0...9842.52 ft (0...3000 m) |
Fire Resistance | 850 °C IEC 60695-2-1 |
Width | 90 mm |
Depth | 98 mm |
