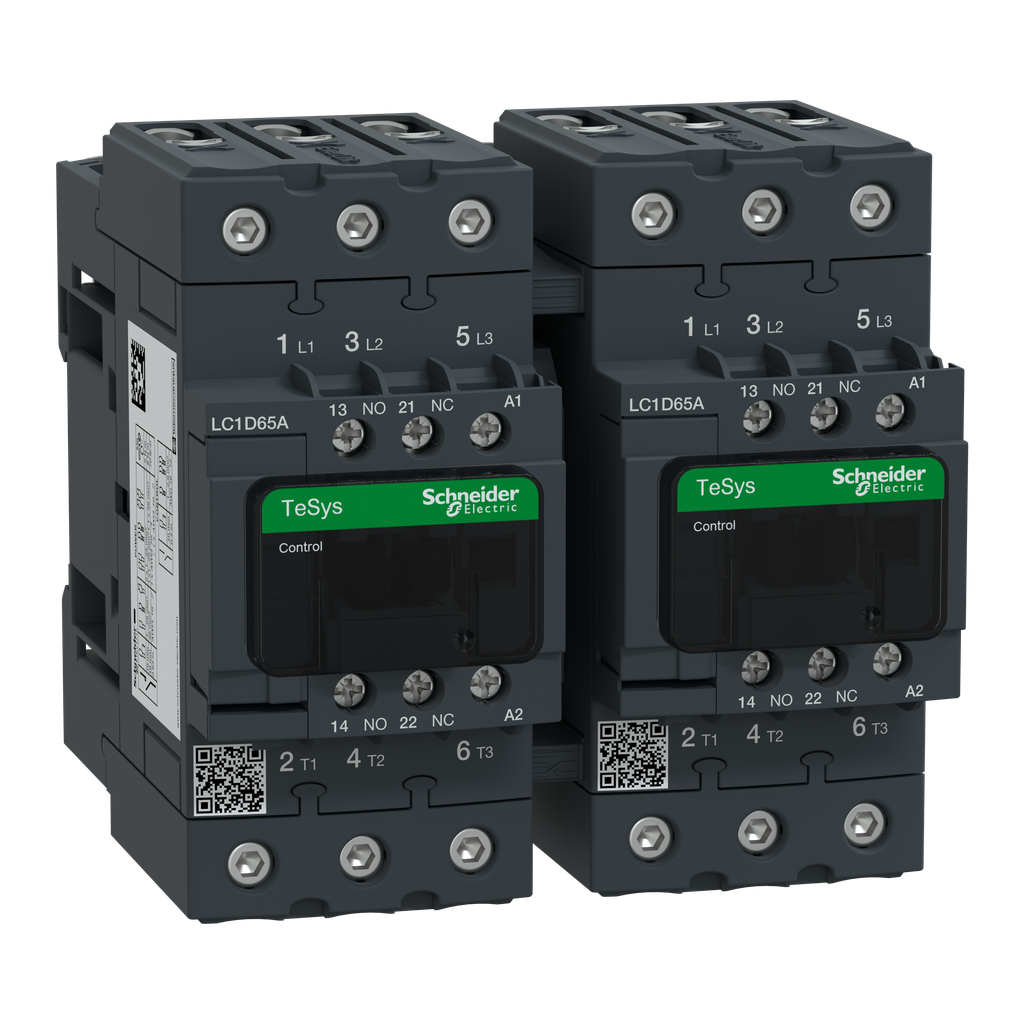

LC2D65AU7 - TeSys Deca reversing contactor - 3P(3 NO) - AC-3

LC2D65AU7

TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 240 V AC coil

LC2D65AU7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 65A AC-3 30kW@400V, it includes a 240V 50/60Hz AC coil, 2NO+2NC aux contacts, a mechanical interlock. LC2D65AU7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 30kW@400V. It includes a 240V 50/60Hz AC coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 119mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 240V AC coil that can be supplied at 50Hz or 60Hz. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 1.6 million cycles at 65A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Power connections by EverLink BTR screw terminals providing constant tightening pressure.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	UL CSA RINA GOST CCC DNV LROS (Lloyds register of shipping) GL BV UKCA
Interlocking Type	mechanical
[Uc] Control Circuit Voltage	240 V AC 50/60 Hz
[Ue] Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hz power circuit <= 300 V DC
Power Dissipation Per Pole	9.6 W AC-1 6.3 W AC-3 6.3 W AC-3e
Average Impedance	1.5 mOhm - Ith 80 A 50 Hz power circuit
Auxiliary Contact Composition	1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current	10 A 60 °C signalling circuit 80 A 60 °C power circuit
Mounting Support	rail plate
Control Circuit Type	AC 50/60 Hz
Standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 IEC 60335-1
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Contactor Application	motor control resistive load
Rated Breaking Capacity	1000 A 440 V power circuit IEC 60947
Product Or Component Type	reversing contactor
Irms Rated Making Capacity	140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 1000 A 440 V power circuit IEC 60947
Product Name	TeSys D TeSys Deca
Associated Fuse Rating	10 A gG signalling circuit IEC 60947-5-1 125 A gG <= 690 V type 1 power circuit 125 A gG <= 690 V type 2 power circuit
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Connections - Terminals	control circuit screw clamp terminals 1 1-4 mm²flexible without cable end control circuit screw clamp terminals 2 1-4 mm²flexible without cable end control circuit screw clamp terminals 1 1-4 mm²flexible with cable end control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end control circuit screw clamp terminals 1 1-4 mm²solid control circuit screw clamp terminals 2 1-4 mm²solid power circuit EverLink BTR screw connectors 1 1-35 mm²flexible without cable end power circuit EverLink BTR screw connectors 2 1-25 mm²flexible without cable end power circuit EverLink BTR screw connectors 1 1-35 mm²flexible with cable end power circuit EverLink BTR screw connectors 2 1-25 mm²flexible with cable end power circuit EverLink BTR screw connectors 1 1-35 mm²solid power circuit EverLink BTR screw connectors 2 1-25 mm²solid
Range	TeSys TeSys Deca
Pole Contact Composition	3 NO
Device Presentation	preassembled with reversing power busbar
Utilisation Category	AC-3 AC-1 AC-3e
[Ie] Rated Operational Current	80 A 60 °C) <= 440 V AC AC-1 power circuit 65 A 60 °C) <= 440 V AC AC-3 power circuit
Maximum Operating Rate	3600 cyc/h 60 °C
Tightening Torque	control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm control circuit 1.7 N.m screw clamp terminals Philips No 2 power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mm power circuit 5 N.m EverLink BTR screw connectors 1-25 mm² hexagonal 4 mm control circuit 1.7 N.m screw clamp terminals pozidriv No 2 power circuit 2.5 N.m screw clamp terminals pozidriv No 2
Electrical Durability	1.45 Mcycles 65 A AC-3 <= 440 V 1.4 Mcycles 80 A AC-1 <= 440 V 1.45 Mcycles 65 A AC-3e <= 440 V
Mechanical Durability	6 Mcycles
Poles Description	3P
Operating Time	4...19 ms opening 12...26 ms closing
Overvoltage Category	III
Motor Power Kw	18.5 kW 220...230 V AC 50 Hz 30 kW 380...400 V AC 50 Hz 37 kW 415...440 V AC 50 Hz 37 kW 500 V AC 50 Hz 37 kW 660...690 V AC 50 Hz
Maximum Horse Power Rating	40 hp 460/480 V at AC 60 Hz for 3 phase 5 hp 115 V at AC 60 Hz for 1 phase 10 hp 230/240 V at AC 60 Hz for 1 phase 20 hp 200/208 V at AC 60 Hz for 3 phase 20 hp 230/240 V at AC 60 Hz for 3 phase 50 hp 575/600 V at AC 60 Hz for 3 phase
[Ui] Rated Insulation Voltage	power circuit 690 V IEC 60947-4-1 power circuit 600 V CSA power circuit 600 V UL signalling circuit 690 V IEC 60947-1 signalling circuit 600 V CSA signalling circuit 600 V UL
Device Short Name	LC2D
[Icw] Rated Short-Time Withstand Current	520 A 40 °C - 10 s power circuit 900 A 40 °C - 1 s power circuit 110 A 40 °C - 10 min power circuit 260 A 40 °C - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circuit 140 A - 100 ms signalling circuit
Protective Cover	with
Warranty	18 months
Non-Overlap Time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Minimum Switching Current	5 mA signalling circuit
Control Circuit Voltage Limits	0.3...0.6 Uc -40-70 °C drop-out AC 50/60 Hz 0.8...1.1 Uc -40-60 °C operational AC 50 Hz 0.85...1.1 Uc -40-60 °C operational AC 60 Hz 1...1.1 Uc 60-70 °C operational AC 50/60 Hz
Insulation Resistance	> 10 MOhm signalling circuit
Inrush Power In Va	140-140 VA 60 Hz 0.75 20 °C) 160-160 VA 50 Hz 0.75 20 °C)
Coil Technology	without built-in suppressor module
Minimum Switching Voltage	17 V signalling circuit
Signalling Circuit Frequency	25...400 Hz
Auxiliary Contacts Type	mechanically linked 1 NO + 1 NC IEC 60947-5-1 mirror contact 1 NC IEC 60947-4-1
Hold-In Power Consumption In Va	13-13 VA 60 Hz 0.3 20 °C) 15-15 VA 50 Hz 0.3 20 °C)
Heat Dissipation	4-5 W 50/60 Hz
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1503009EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Circularity Profile	ENVEOLI1503009EN
Eu Rohs Directive	Compliant
Mechanical Robustness	vibrations contactor open2 Gn, 5...300 Hz vibrations contactor closed4 Gn, 5...300 Hz shocks contactor open10 Gn for 11 ms shocks contactor closed15 Gn for 11 ms
Ambient Air Temperature For Operation	-40-60 °C 60-70 °C with derating
Height	122 mm
Climatic Withstand	IACS E10 IEC 60947-1 Annex Q category D
Pollution Degree	3
Net Weight	1.89 kg
Flame Retardance	V1 conforming to UL 94
Ambient Air Temperature For Storage	-60-80 °C
Protective Treatment	TH IEC 60068-2-30
Ip Degree Of Protection	IP20 front face IEC 60529
Operating Altitude	0...9842.52 ft (0...3000 m)
Fire Resistance	850 °C IEC 60695-2-1
Width	119 mm
Depth	120 mm
