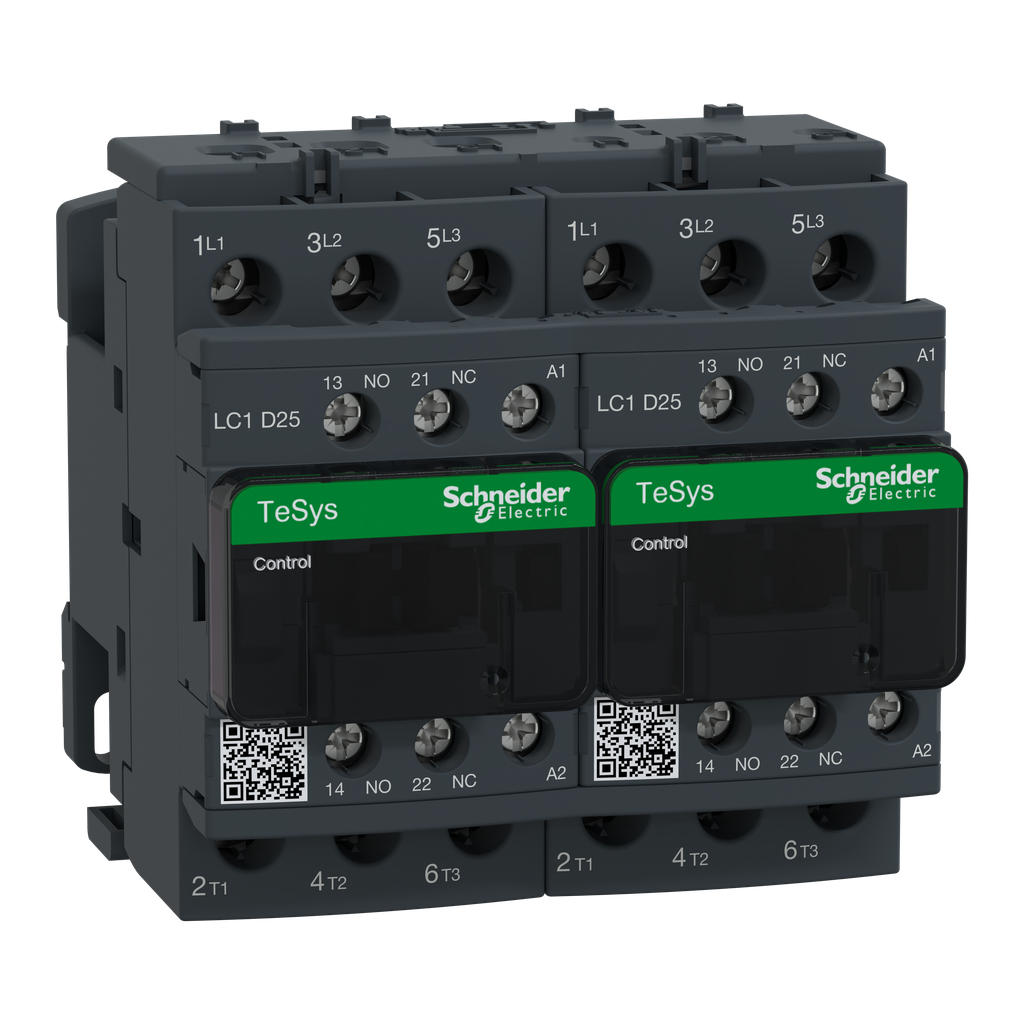

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for any type of application. They can be used to create motor starters for almost any type of application. TeSys D contactors offer quick simple setup, while maintaining a compact size. Contactors have both Horsepower and Kw motor rating for international acceptance. An extennsive line of accessories makes it easy to meet the requirements of most applications. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueProduct Certifications |
|
---|---|
Interlocking Type | mechanical |
[Uc] Control Circuit Voltage | 120 V AC 50/60 Hz |
[Ue] Rated Operational Voltage |
|
Power Dissipation Per Pole |
|
Average Impedance | 2 mOhm - Ith 40 A 50 Hz power circuit |
Auxiliary Contact Composition | 1 NO + 1 NC |
[Ith] Conventional Free Air Thermal Current |
|
Mounting Support |
|
Control Circuit Type | AC 50/60 Hz |
Standards |
|
Safety Reliability Level |
|
Contactor Application |
|
Rated Breaking Capacity | 450 A 440 V power circuit IEC 60947 |
Product Or Component Type | reversing contactor |
Irms Rated Making Capacity |
|
Product Name | TeSys Deca |
Associated Fuse Rating |
|
[Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
Connections - Terminals |
|
Range |
|
Pole Contact Composition | 3 NO |
Device Presentation | preassembled with reversing power busbar |
Utilisation Category |
|
[Ie] Rated Operational Current |
|
Maximum Operating Rate | 3600 cyc/h 60 °C |
Tightening Torque |
|
Electrical Durability |
|
Mechanical Durability | 15 Mcycles |
Poles Description | 3P |
Operating Time |
|
Overvoltage Category | III |
Motor Power Kw |
|
Maximum Horse Power Rating |
|
[Ui] Rated Insulation Voltage |
|
Device Short Name | LC2D |
[Icw] Rated Short-Time Withstand Current |
|
Protective Cover | with |
Warranty | 18 months |
Non-Overlap Time |
|
Minimum Switching Current | 5 mA signalling circuit |
Control Circuit Voltage Limits |
|
Insulation Resistance | > 10 MOhm signalling circuit |
Inrush Power In Va |
|
Coil Technology | without built-in suppressor module |
Minimum Switching Voltage | 17 V signalling circuit |
Signalling Circuit Frequency | 25...400 Hz |
Auxiliary Contacts Type |
|
Hold-In Power Consumption In Va |
|
Heat Dissipation | 2-3 W 50/60 Hz |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110229EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Circularity Profile | ENVEOLI1102029EN |
Eu Rohs Directive | Compliant |
Mechanical Robustness |
|
Ambient Air Temperature For Operation |
|
Height | 85 mm |
Climatic Withstand |
|
Pollution Degree | 3 |
Net Weight | 0.787 kg |
Flame Retardance | V1 conforming to UL 94 |
Ambient Air Temperature For Storage | -60-80 °C |
Protective Treatment | TH IEC 60068-2-30 |
Ip Degree Of Protection | IP20 front face IEC 60529 |
Operating Altitude | 0...9842.52 ft (0...3000 m) |
Fire Resistance | 850 °C IEC 60695-2-1 |
Width | 90 mm |
Depth | 92 mm |
