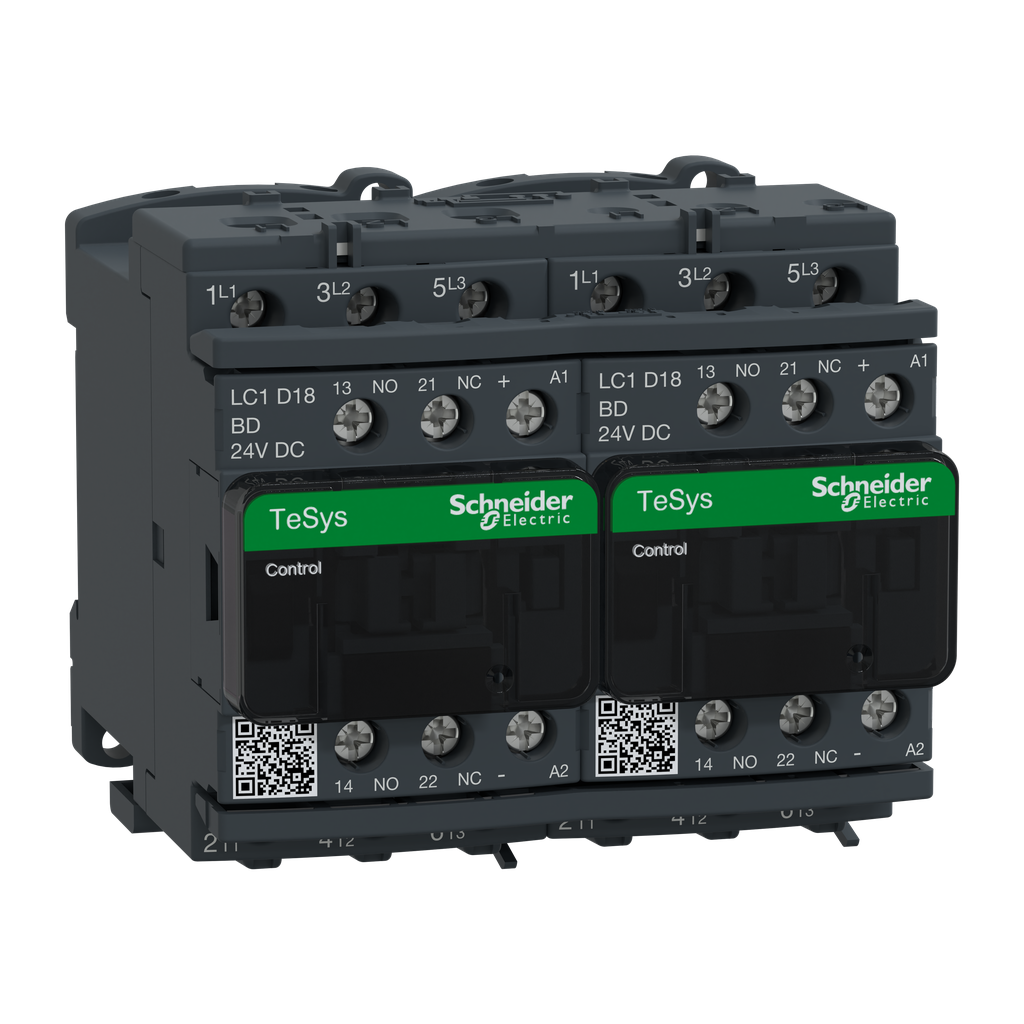

LC2D18BD is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 18A AC-3 7.5kW@400V, it includes a 24V DC coil, 2NO+2NC aux contacts, a mechanical interlock. LC2D18BD is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 7.5kW@400V. It includes a 24V DC coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 90mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 24V DC coil for easy integration to all control systems. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 2 million cycles at 18A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals.
Brand: Schneider Electric
Add to Quote CatalogueProduct Certifications |
|
---|---|
Interlocking Type | mechanical |
[Uc] Control Circuit Voltage | 24 V DC |
[Ue] Rated Operational Voltage |
|
Power Dissipation Per Pole |
|
Average Impedance | 2.5 mOhm - Ith 32 A 50 Hz power circuit |
Auxiliary Contact Composition | 1 NO + 1 NC |
[Ith] Conventional Free Air Thermal Current |
|
Mounting Support |
|
Control Circuit Type | DC standard |
Standards |
|
Safety Reliability Level |
|
Contactor Application |
|
Rated Breaking Capacity | 300 A 440 V power circuit IEC 60947 |
Product Or Component Type | reversing contactor |
Irms Rated Making Capacity |
|
Product Name |
|
Associated Fuse Rating |
|
[Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
Connections - Terminals |
|
Range |
|
Pole Contact Composition | 3 NO |
Device Presentation | preassembled with reversing power busbar |
Utilisation Category |
|
[Ie] Rated Operational Current |
|
Maximum Operating Rate | 3600 cyc/h 60 °C |
Tightening Torque |
|
Electrical Durability |
|
Mechanical Durability | 30 Mcycles |
Poles Description | 3P |
Operating Time |
|
Overvoltage Category | III |
Motor Power Kw |
|
Maximum Horse Power Rating |
|
[Ui] Rated Insulation Voltage |
|
Device Short Name | LC2D |
[Icw] Rated Short-Time Withstand Current |
|
Protective Cover | with |
Warranty | 18 months |
Non-Overlap Time |
|
Minimum Switching Current | 5 mA signalling circuit |
Control Circuit Voltage Limits |
|
Hold-In Power Consumption In W | 5.4-5.4 W 20 °C |
Insulation Resistance | > 10 MOhm signalling circuit |
Coil Technology | built-in bidirectional peak limiting diode suppressor |
Time Constant | 28 ms |
Minimum Switching Voltage | 17 V signalling circuit |
Signalling Circuit Frequency | 25...400 Hz |
Inrush Power In W | 5.4-5.4 W 20 °C) |
Auxiliary Contacts Type |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110230EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI1102030EN |
Eu Rohs Directive | Compliant |
Mechanical Robustness |
|
Ambient Air Temperature For Operation |
|
Height | 77 mm |
Climatic Withstand |
|
Pollution Degree | 3 |
Net Weight | 1.037 kg |
Flame Retardance | V1 conforming to UL 94 |
Ambient Air Temperature For Storage | -60-80 °C |
Protective Treatment | TH IEC 60068-2-30 |
Ip Degree Of Protection | IP20 front face IEC 60529 |
Operating Altitude | 0...9842.52 ft (0...3000 m) |
Fire Resistance | 850 °C IEC 60695-2-1 |
Width | 90 mm |
Depth | 95 mm |
