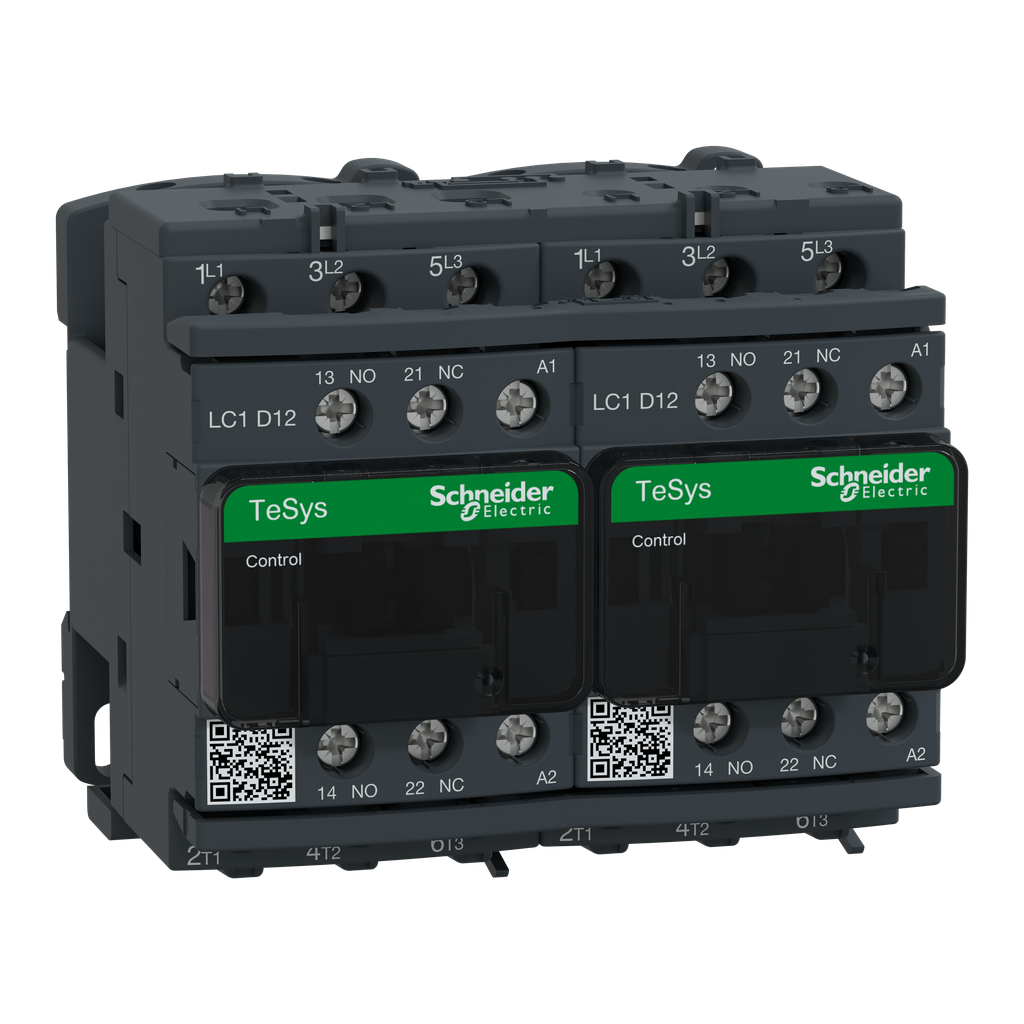

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 12A reversing inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 3HP at 200-208VAC, 3HP at 240VAC, 7.5HP at 480VAC and 10HP at 600VAC three phase. Contactor is also rated for 1HP at 115VAC and 2HP at 240VAC single phase. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.03 inches tall, 3.54 inches wide and 3.39 inches deep. It weighs 1.54 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
Brand: Schneider Electric
Add to Quote CatalogueProduct Certifications |
|
---|---|
Interlocking Type | electrical and mechanical |
[Uc] Control Circuit Voltage | 120 V AC 50/60 Hz |
[Ue] Rated Operational Voltage |
|
Power Dissipation Per Pole |
|
Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz power circuit |
Auxiliary Contact Composition | 1 NO + 1 NC |
[Ith] Conventional Free Air Thermal Current |
|
Mounting Support |
|
Control Circuit Type | AC 50/60 Hz |
Standards |
|
Safety Reliability Level |
|
Contactor Application |
|
Rated Breaking Capacity | 250 A 440 V power circuit IEC 60947 |
Product Or Component Type | reversing contactor |
Irms Rated Making Capacity |
|
Product Name |
|
Associated Fuse Rating |
|
[Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
Connections - Terminals |
|
Range |
|
Pole Contact Composition | 3 NO |
Device Presentation | preassembled with reversing power busbar |
Utilisation Category |
|
[Ie] Rated Operational Current |
|
Maximum Operating Rate | 3600 cyc/h 60 °C |
Tightening Torque |
|
Electrical Durability |
|
Mechanical Durability | 15 Mcycles |
Poles Description | 3P |
Operating Time |
|
Overvoltage Category | III |
Motor Power Kw |
|
Maximum Horse Power Rating |
|
[Ui] Rated Insulation Voltage |
|
Device Short Name | LC2D |
[Icw] Rated Short-Time Withstand Current |
|
Protective Cover | with |
Warranty | 18 months |
Non-Overlap Time |
|
Minimum Switching Current | 5 mA signalling circuit |
Control Circuit Voltage Limits |
|
Insulation Resistance | > 10 MOhm signalling circuit |
Inrush Power In Va |
|
Coil Technology | without built-in suppressor module |
Minimum Switching Voltage | 17 V signalling circuit |
Signalling Circuit Frequency | 25...400 Hz |
Auxiliary Contacts Type |
|
Hold-In Power Consumption In Va |
|
Heat Dissipation | 2-3 W 50/60 Hz |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1501004 |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Circularity Profile | ENVEOLI1501004 |
Eu Rohs Directive | Compliant |
Mechanical Robustness |
|
Ambient Air Temperature For Operation |
|
Height | 77 mm |
Climatic Withstand |
|
Pollution Degree | 3 |
Net Weight | 0.697 kg |
Flame Retardance | V1 conforming to UL 94 |
Ambient Air Temperature For Storage | -60-80 °C |
Protective Treatment | TH IEC 60068-2-30 |
Ip Degree Of Protection | IP20 front face IEC 60529 |
Operating Altitude | 0...9842.52 ft (0...3000 m) |
Fire Resistance | 850 °C IEC 60695-2-1 |
Width | 90 mm |
Depth | 86 mm |
