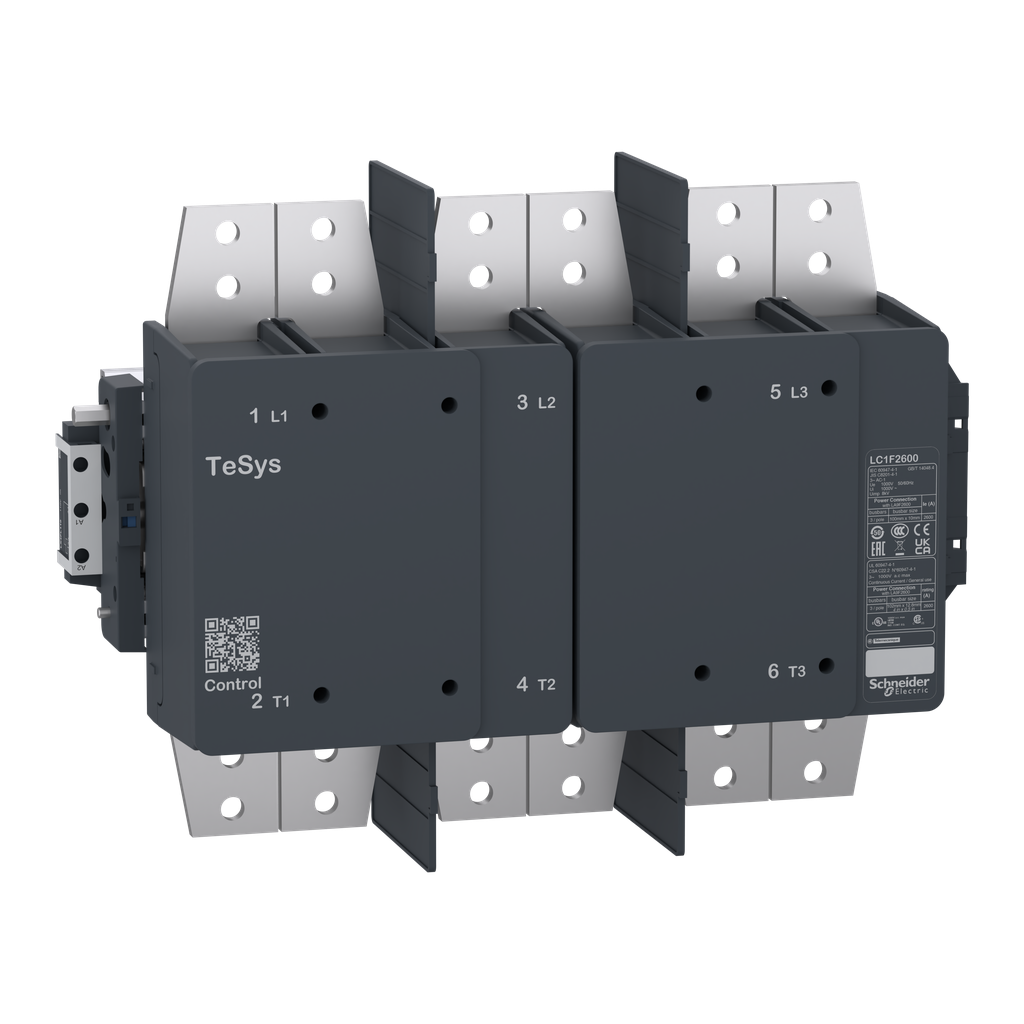

LC1F2600MD
contactor, TeSys F, 3P(3NO), AC1, <=1000V AC 2600 A, coil 220V DC
TeSys F contactor, 3 poles (3NO), 2600A/1000V AC-1, for non-inductive load applications. It provides a low sealed consumption 220/230V DC coil, bolt terminals for bars or cables with lugs. For high operating rates until 600 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Uc] Control Circuit Voltage | 220 V DC |
|---|---|
| Range Of Product | TeSys F |
| [Ue] Rated Operational Voltage | <= 1000 V AC 50/60 Hz |
| Contactor Application | resistive load |
| Product Or Component Type | contactor |
| Range | TeSys |
| Utilisation Category | AC-1 |
| [Ie] Rated Operational Current | 2600 A 60 °C) AC AC-1 |
| Poles Description | 3P |
| Device Short Name | LC1F |
| Product Certifications |
|
| Power Dissipation Per Pole | 250 W AC-1 |
| Average Impedance | 0.1 mOhm - Ith 2600 A 50 Hz |
| [Ith] Conventional Free Air Thermal Current | 2600 A 60 °C |
| Control Circuit Voltage Limits |
|
| Standards |
|
| Mounting Support | plate |
| Control Circuit Type | DC standard |
| Hold-In Power Consumption In W | 18-18 W 20 °C |
| Rated Breaking Capacity | 3900 A IEC 60947-4-1 |
| Associated Fuse Rating | 2500 A gG <= 440 V |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Connections - Terminals |
|
| Pole Contact Composition | 3 NO |
| Operating Time |
|
| Maximum Operating Rate | 600 cyc/h 55 °C |
| Tightening Torque |
|
| Inrush Power In W | 2600-2600 W 20 °C) |
| Compatibility Code | LC1F |
| Overvoltage Category | III |
| [Ui] Rated Insulation Voltage |
|
| [Icw] Rated Short-Time Withstand Current |
|
| Heat Dissipation | 40-40 W |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110206EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1102006EN |
| Eu Rohs Directive | Compliant |
| Ambient Air Temperature For Operation | -5-40 °C |
| Height | 382 mm |
| Net Weight | 36 kg |
| Ambient Air Temperature For Storage | -60-80 °C |
| Protective Treatment | TH |
| Ip Degree Of Protection |
|
| Operating Altitude | 9842.52 ft (3000 m) without derating |
| Width | 519 mm |
| Depth | 251 mm |
| Permissible Ambient Air Temperature Around The Device | -40-60 °C |
