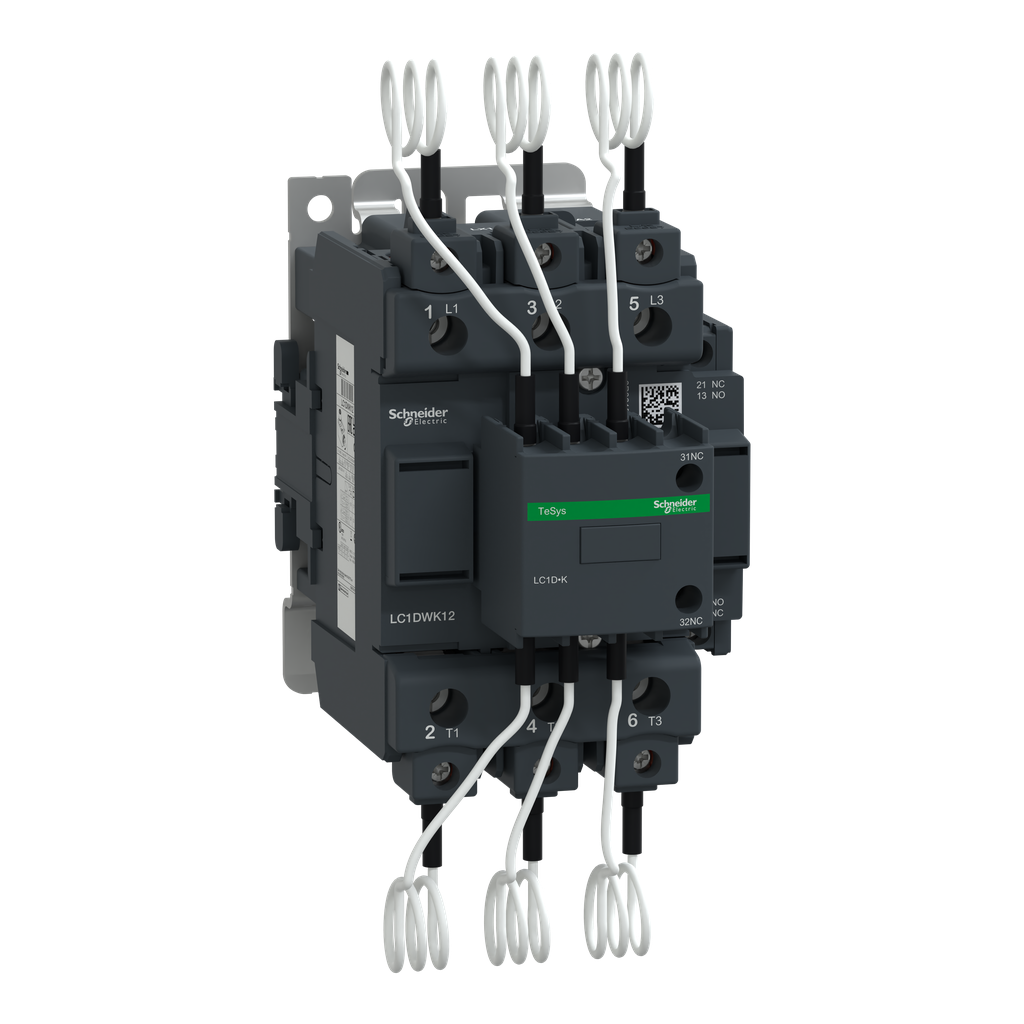

TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 63kVAR@400V 50Hz (104kVAR@690V). It provides a 230V 50/60 Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueProduct Certifications |
|
---|---|
[Uc] Control Circuit Voltage | 230 V AC 50/60 Hz |
[Ue] Rated Operational Voltage | power circuit 690 V AC 50/60 Hz |
Reactive Power Rating |
|
Standards |
|
Mounting Support |
|
Control Circuit Type | AC 50/60 Hz |
Contactor Application | power factor correction |
Product Or Component Type | capacitor duty contactor |
Product Name |
|
Range | TeSys |
Pole Contact Composition | 3 NO |
Connections - Terminals |
|
Utilisation Category | AC-6b |
Maximum Operating Rate | 240 cyc/h |
Auxiliary Contact Composition | 1 NO + 2 NC instantaneous |
Tightening Torque |
|
Electrical Durability |
|
Poles Description | 3P |
Device Application | control |
Device Short Name | LC1DWK |
Warranty | 18 months |
Auxiliary Contacts Type | mechanically linked 1 NO + 2 NC IEC 60947-5-1 |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP111274EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | -5-60 °C |
Height | 180 mm |
Net Weight | 1.65 kg |
Ambient Air Temperature For Storage | -60-80 °C |
Ip Degree Of Protection | IP20 front face IEC 60529 |
Operating Altitude | 0...9842.52 ft (0...3000 m) |
Width | 85 mm |
Depth | 154 mm |
