LC1DFKM7 - Capacitor contactor, TeSys Deca, 12.5 kVAR at 400 V/50 Hz, coil 220 V AC 50/60 Hz

LC1DFKM7

Capacitor contactor, TeSys Deca, 12.5 kVAR at 400 V/50 Hz, coil 220 V AC 50/60 Hz

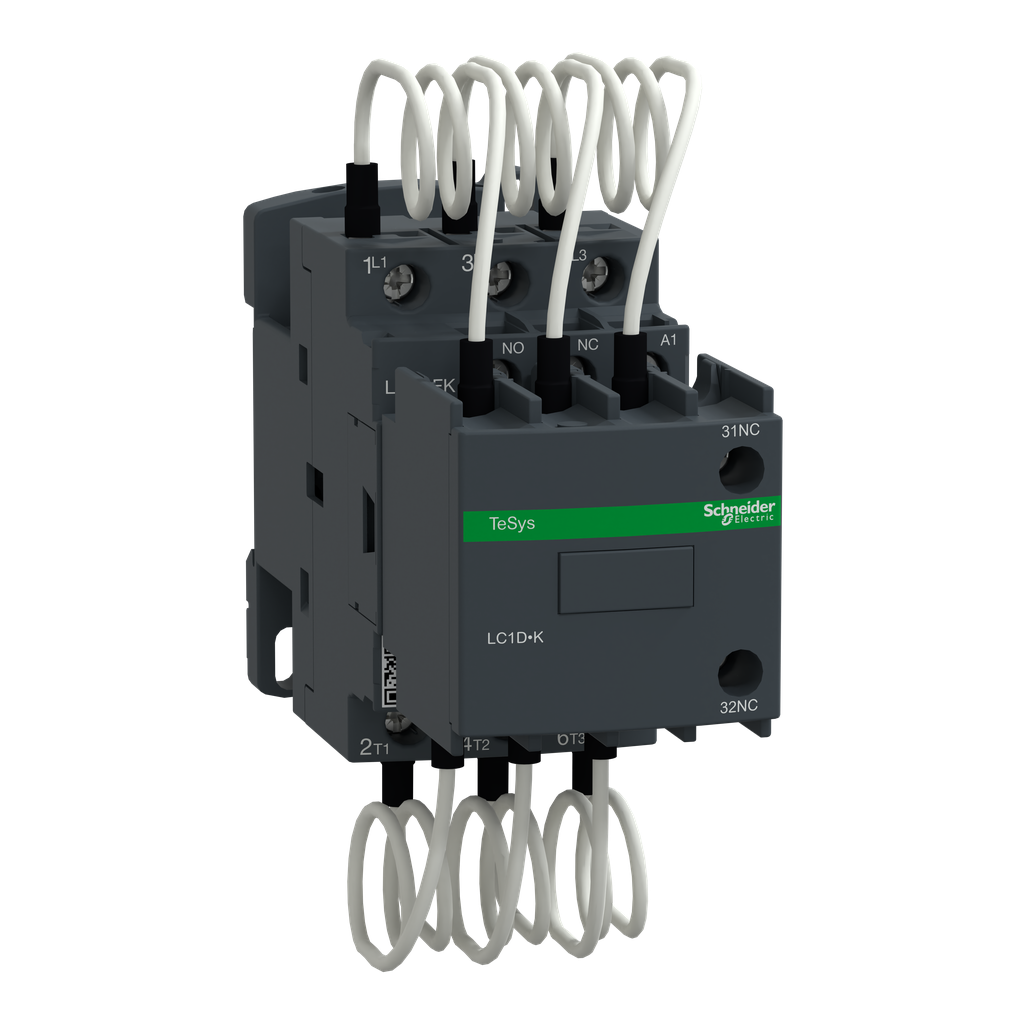

TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 12.5kVAR@400V 50Hz (21kVAR@690V). It provides a 220V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	IECEE CB Scheme UKCA
[Uc] Control Circuit Voltage	220 V AC 50/60 Hz
[Ue] Rated Operational Voltage	power circuit 690 V AC 50/60 Hz
Reactive Power Rating	7 kvar 230-230 V AC 50 Hz 60 °C 12.5 kvar 400-400 V AC 50 Hz 60 °C 13 kvar 440-440 V AC 50 Hz 60 °C 21 kvar 690-690 V AC 50 Hz 60 °C
Standards	EN/IEC 60947-1 EN/IEC 60947-4-1 IEC 60335-1
Mounting Support	DIN rail plate
Control Circuit Type	AC 50/60 Hz
Contactor Application	power factor correction
Product Or Component Type	capacitor duty contactor
Product Name	TeSys LC1D.K TeSys Deca
Range	TeSys TeSys Deca
Pole Contact Composition	3 NO
Connections - Terminals	control circuit screw clamp terminals 1 1-4 mm² solid control circuit screw clamp terminals 2 1-4 mm² solid control circuit screw clamp terminals 1 1-4 mm² flexible without cable end control circuit screw clamp terminals 2 1-4 mm² flexible without cable end control circuit screw clamp terminals 1 1-4 mm² flexible with cable end control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end power circuit screw clamp terminals 1 1.5-6 mm² solid power circuit screw clamp terminals 2 1.5-4 mm² solid power circuit screw clamp terminals 1 1.5-6 mm² flexible without cable end power circuit screw clamp terminals 2 1.5-6 mm² flexible without cable end power circuit screw clamp terminals 1 1.5-6 mm² flexible with cable end power circuit screw clamp terminals 2 1.5-4 mm² flexible with cable end
Utilisation Category	AC-6b
Maximum Operating Rate	240 cyc/h
Auxiliary Contact Composition	1 NO + 2 NC instantaneous
Tightening Torque	control circuit 1.7 N.m screw clamp terminals power circuit 1.7 N.m screw clamp terminals
Electrical Durability	300000 cycles 400 V 200000 cycles 690 V
Poles Description	3P
Device Application	control
Device Short Name	LC1DFK
Warranty	18 months
Auxiliary Contacts Type	mechanically linked 1 NO + 2 NC IEC 60947-5-1
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP111274EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive	Compliant
Ambient Air Temperature For Operation	-5-60 °C
Height	115 mm
Net Weight	0.53 kg
Ambient Air Temperature For Storage	-60-80 °C
Ip Degree Of Protection	IP20 front face IEC 60529
Operating Altitude	0...9842.52 ft (0...3000 m)
Width	45 mm
Depth	121 mm
