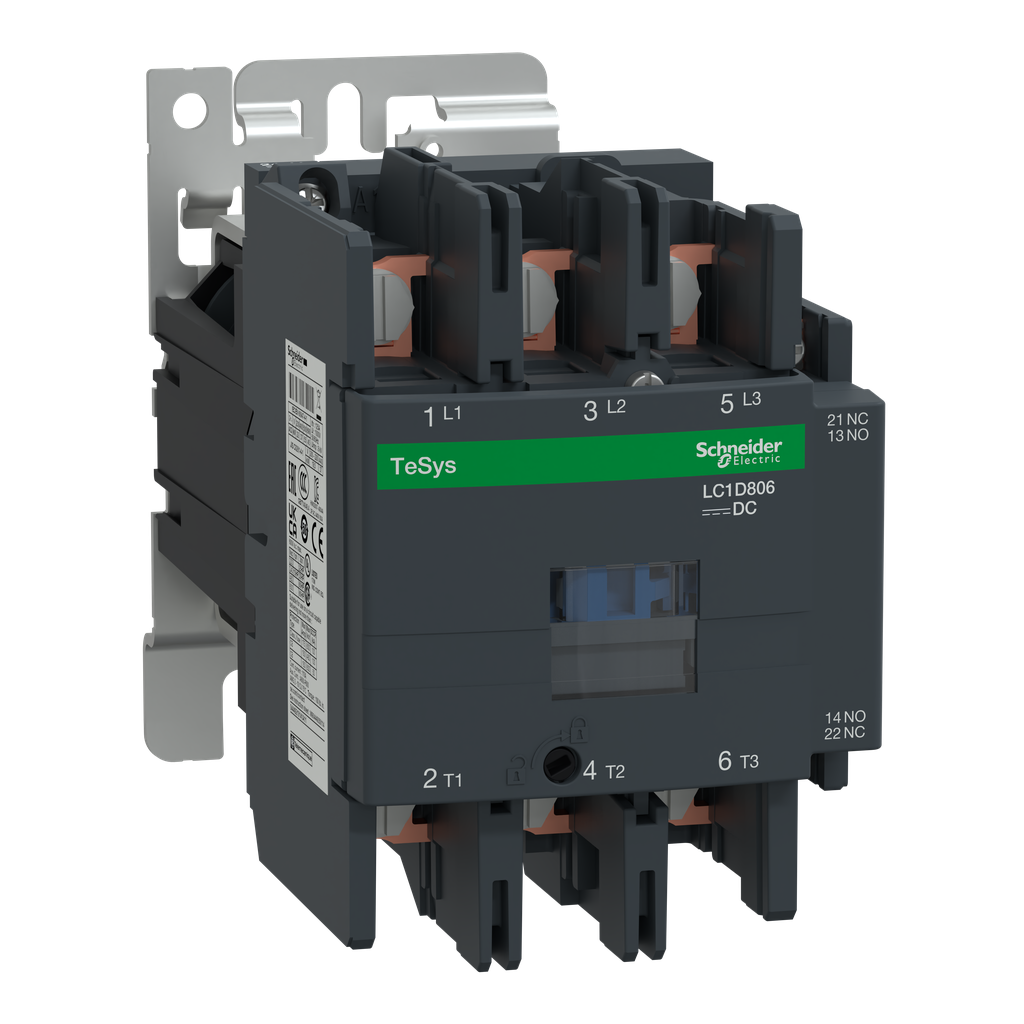

LC1D806BD - IEC contactor, TeSys Deca, nonreversing, 80A, 60HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style

LC1D806BD

IEC contactor, TeSys Deca, nonreversing, 80A, 60HP at 480VAC, 3 phase, 3 pole, 3 NO, 24VDC coil, open style

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 80A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 25HP at 200 to 208VAC, 30HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Contactor is also rated for 7.5HP at 115VAC and 15HP at 240VAC single phase. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Ring-lug screw terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 7.32 inches deep. It weighs 5.71 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

[Uc] Control Circuit Voltage	24 V DC
[Ue] Rated Operational Voltage	power circuit <= 300 V DC 25...400 Hz power circuit <= 690 V AC
Range Of Product	TeSys Deca
Contactor Application	resistive load motor control
Product Or Component Type	contactor
Range	TeSys
Utilisation Category	AC-3 AC-3e AC-4 AC-1
[Ie] Rated Operational Current	125 A 60 °C) <= 440 V AC AC-1 power circuit 80 A 60 °C) <= 440 V AC AC-3 power circuit 80 A 60 °C) <= 440 V AC AC-3e power circuit
Poles Description	3P
Device Short Name	LC1D
Warranty	18 months
Non-Overlap Time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Minimum Switching Current	5 mA signalling circuit
Power Dissipation Per Pole	5.1 W AC-3 12.5 W AC-1 5.1 W AC-3e
Average Impedance	0.8 mOhm - Ith 125 A 50 Hz power circuit
Auxiliary Contact Composition	1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current	10 A 60 °C signalling circuit 125 A 60 °C power circuit
Control Circuit Voltage Limits	0.1...0.3 Uc -40-70 °C drop-out DC 0.85...1.1 Uc -40-55 °C operational DC 1...1.1 Uc 55-70 °C operational DC
Mounting Support	rail plate
Contact Compatibility	M9
Control Circuit Type	DC standard
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Pollution Degree	3
Hold-In Power Consumption In W	22-22 W 20 °C
Insulation Resistance	> 10 MOhm signalling circuit
Rated Breaking Capacity	1100 A 440 V power circuit IEC 60947
Irms Rated Making Capacity	140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 1100 A 440 V power circuit IEC 60947
Associated Fuse Rating	10 A gG signalling circuit IEC 60947-5-1 200 A gG <= 690 V type 1 power circuit 160 A gG <= 690 V type 2 power circuit
[Uimp] Rated Impulse Withstand Voltage	8 kV IEC 60947
Pole Contact Composition	3 NO
Connections - Terminals	control circuit lugs-ring terminals 8 mm power circuit bars 1 3 x 16 mm power circuit lugs-ring terminals 17 mm
Coil Technology	without built-in suppressor module
Time Constant	75 ms
Operating Time	95...130 ms closing 20...35 ms opening
Minimum Switching Voltage	17 V signalling circuit
Maximum Operating Rate	3600 cyc/h 60 °C
Signalling Circuit Frequency	25...400 Hz
Tightening Torque	control circuit 1.2 N.m lugs-ring terminals flat Ø 6 mm M3.5 control circuit 1.2 N.m lugs-ring terminals Philips No 2 M3.5 power circuit 5 N.m lugs-ring terminals flat Ø 8 mm M6 power circuit 5 N.m lugs-ring terminals hexagonal 10 mm M6 power circuit 5 N.m bars flat Ø 8 mm M6 power circuit 5 N.m bars hexagonal 10 mm M6 control circuit 1.2 N.m lugs-ring terminals pozidriv No 2 M3.5
Electrical Durability	0.8 Mcycles 125 A AC-1 <= 440 V 1.5 Mcycles 80 A AC-3 <= 440 V 1.5 Mcycles 80 A AC-3e <= 440 V
Mechanical Durability	10 Mcycles
Inrush Power In W	22-22 W 20 °C)
Auxiliary Contacts Type	mechanically linked 1 NO + 1 NC IEC 60947-5-1 mirror contact 1 NC IEC 60947-4-1
Compatibility Code	LC1D
Overvoltage Category	III
Maximum Horse Power Rating	7.5 hp 120 V at AC 50/60 Hz for 1 phase 15 hp 230/240 V at AC 50/60 Hz for 1 phase 30 hp 200/208 V at AC 50/60 Hz for 3 phase 30 hp 230/240 V at AC 50/60 Hz for 3 phase 60 hp 460/480 V at AC 50/60 Hz for 3 phase 60 hp 575/600 V at AC 50/60 Hz for 3 phase
Motor Power Kw	22 kW 220...230 V AC 50/60 Hz AC-3) 37 kW 380...400 V AC 50/60 Hz AC-3) 45 kW 415...440 V AC 50/60 Hz AC-3) 55 kW 500 V AC 50/60 Hz AC-3) 45 kW 660...690 V AC 50/60 Hz AC-3) 15 kW 400 V AC 50/60 Hz AC-4) 22 kW 220...230 V AC 50/60 Hz AC-3e) 37 kW 380...400 V AC 50/60 Hz AC-3e) 45 kW 415...440 V AC 50/60 Hz AC-3e) 55 kW 500 V AC 50/60 Hz AC-3e) 45 kW 660...690 V AC 50/60 Hz AC-3e)
[Ui] Rated Insulation Voltage	power circuit 600 V CSA power circuit 600 V UL power circuit 1000 V IEC 60947-4-1 signalling circuit 690 V IEC 60947-1 signalling circuit 600 V CSA signalling circuit 600 V UL
[Icw] Rated Short-Time Withstand Current	640 A 40 °C - 10 s power circuit 990 A 40 °C - 1 s power circuit 135 A 40 °C - 10 min power circuit 320 A 40 °C - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circuit 140 A - 100 ms signalling circuit
Protective Cover	with
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110205EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive	Compliant
Product Certifications	LROS (Lloyds register of shipping) CCC DNV GL GOST RINA BV UL CSA
Height	127 mm
Standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
Climatic Withstand	IACS E10 exposure to damp heat
Net Weight	2.59 kg
Flame Retardance	V1 conforming to UL 94
Protective Treatment	THIEC 60068-2-30
Ip Degree Of Protection	IP20 front face IEC 60529
Mechanical Robustness	vibrations contactor open 2 Gn, 5...300 Hz) shocks contactor open 8 Gn for 11 ms) vibrations contactor closed 3 Gn, 5...300 Hz) shocks contactor closed 10 Gn for 11 ms)
Operating Altitude	0...9842.52 ft (0...3000 m)
Fire Resistance	850 °C IEC 60695-2-1
Width	85 mm
Depth	186 mm
Permissible Ambient Air Temperature Around The Device	-40-60 °C 60-70 °C with derating
