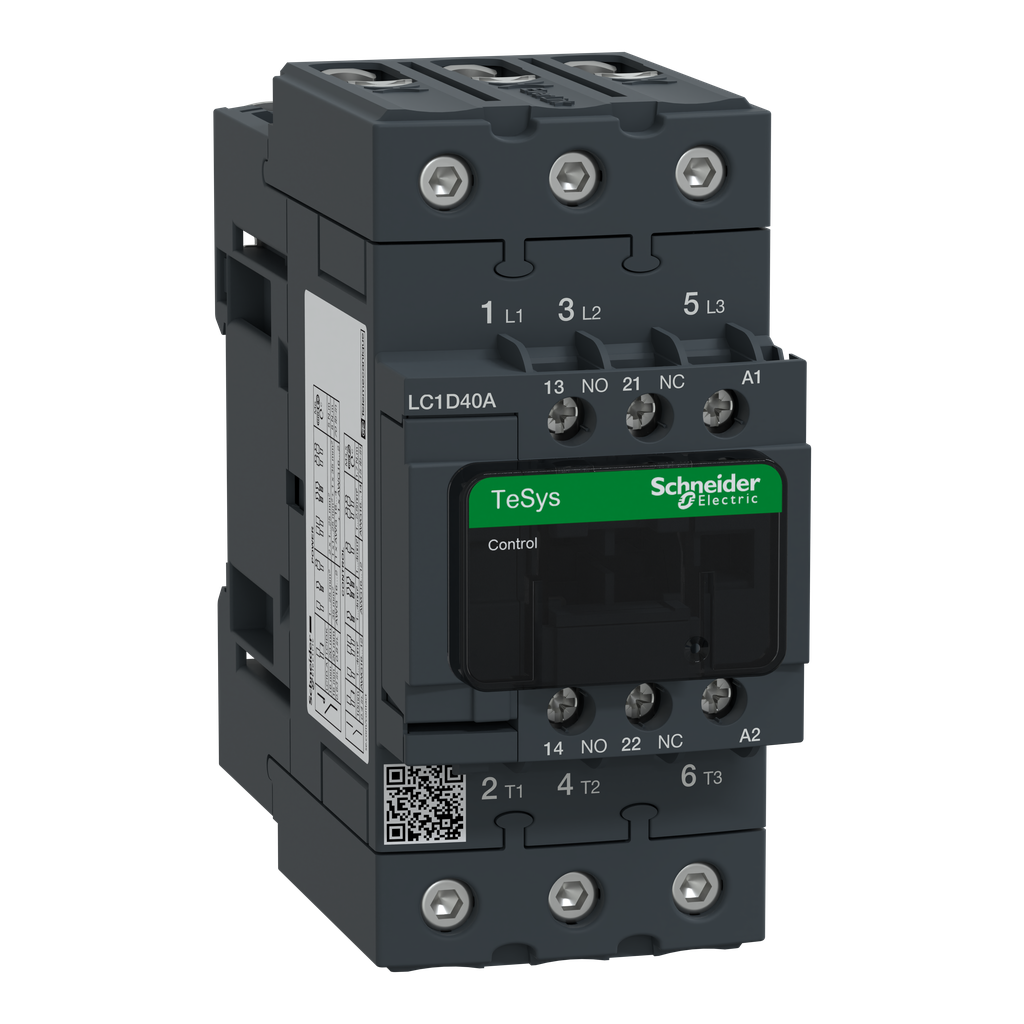

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 40A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 10HP at 200 to 208VAC, 10HP at 240VAC, 30HP at 480VAC and 30HP at 600VAC three phase. Contactor is also rated for 3HP at 115VAC and 5HP at 240VAC single phase. When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 90A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 115 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.87 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
Brand: Schneider Electric
Add to Quote Catalogue[Uc] Control Circuit Voltage | 115 V AC 50/60 Hz |
---|---|
[Ue] Rated Operational Voltage |
|
Range Of Product | TeSys Deca |
Contactor Application |
|
Product Or Component Type | contactor |
Range |
|
Utilisation Category |
|
[Ie] Rated Operational Current |
|
Poles Description | 3P |
Device Short Name | LC1D |
Warranty | 18 months |
Non-Overlap Time |
|
Minimum Switching Current | 5 mA signalling circuit |
Power Dissipation Per Pole |
|
Average Impedance | 1.5 mOhm - Ith 60 A 50 Hz power circuit |
Auxiliary Contact Composition | 1 NO + 1 NC |
[Ith] Conventional Free Air Thermal Current |
|
Control Circuit Voltage Limits |
|
Mounting Support |
|
Contact Compatibility | M2 |
Control Circuit Type | AC 50/60 Hz standard |
Safety Reliability Level |
|
Pollution Degree | 3 |
Insulation Resistance | > 10 MOhm signalling circuit |
Rated Breaking Capacity | 800 A 440 V power circuit IEC 60947 |
Irms Rated Making Capacity |
|
Associated Fuse Rating |
|
[Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
Inrush Power In Va |
|
Pole Contact Composition | 3 NO |
Connections - Terminals |
|
Coil Technology | without built-in suppressor module |
Operating Time |
|
Minimum Switching Voltage | 17 V signalling circuit |
Maximum Operating Rate | 3600 cyc/h 60 °C |
Signalling Circuit Frequency | 25...400 Hz |
Tightening Torque |
|
Electrical Durability |
|
Mechanical Durability | 6 Mcycles |
Auxiliary Contacts Type |
|
Compatibility Code | LC1D |
Hold-In Power Consumption In Va |
|
Overvoltage Category | III |
Maximum Horse Power Rating |
|
Motor Power Kw |
|
[Ui] Rated Insulation Voltage |
|
[Icw] Rated Short-Time Withstand Current |
|
Heat Dissipation | 4-5 W 50/60 Hz |
Protective Cover | with |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1503009EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Circularity Profile | ENVEOLI1503009EN |
Eu Rohs Directive | Compliant |
Product Certifications |
|
Height | 122 mm |
Standards |
|
Climatic Withstand |
|
Net Weight | 0.85 kg |
Flame Retardance | V1 conforming to UL 94 |
Protective Treatment | THIEC 60068-2-30 |
Ip Degree Of Protection | IP20 front face IEC 60529 |
Mechanical Robustness |
|
Operating Altitude | 0...9842.52 ft (0...3000 m) |
Fire Resistance | 850 °C IEC 60695-2-1 |
Width | 55 mm |
Depth | 120 mm |
Permissible Ambient Air Temperature Around The Device |
|
