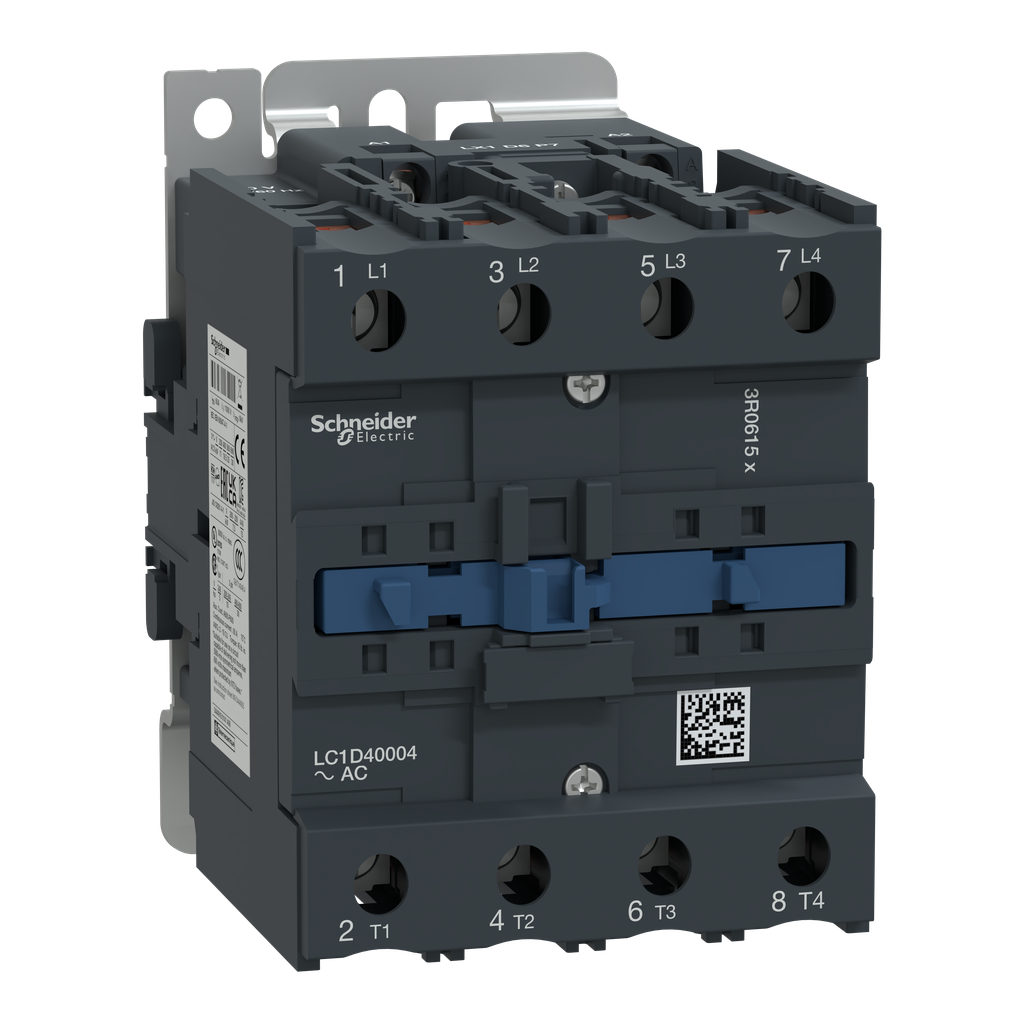

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 60A resistive load rating. Contactor is supplied with a 120 VAC 60 Hz coil. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 4.92 inches deep. It weighs 3.17 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
Brand: Schneider Electric
Add to Quote Catalogue[Uc] Control Circuit Voltage | 120 V AC 60 Hz |
---|---|
[Ue] Rated Operational Voltage | power circuit 690 V AC 25...400 Hz |
Range Of Product | TeSys Deca |
Contactor Application | resistive load |
Product Or Component Type | contactor |
Utilisation Category |
|
[Ie] Rated Operational Current | 60 A 60 °C) 440 V AC AC-1 power circuit |
Poles Description | 4P |
Device Short Name | LC1D |
Warranty | 18 months |
Non-Overlap Time |
|
Minimum Switching Current | 5 mA control circuit |
Power Dissipation Per Pole |
|
Average Impedance | 1.5 mOhm - Ith 60 A 50 Hz power circuit |
[Ith] Conventional Free Air Thermal Current |
|
Control Circuit Voltage Limits |
|
Mounting Support |
|
Control Circuit Type | AC 60 Hz standard |
Safety Reliability Level |
|
Insulation Resistance | > 10 MOhm control circuit |
Rated Breaking Capacity | 800 kA 440 V power circuit IEC 60947 |
Irms Rated Making Capacity |
|
Associated Fuse Rating |
|
[Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
Inrush Power In Va | 140-140 VA 0.75 20 °C) |
Pole Contact Composition | 4 NO |
Connections - Terminals |
|
Coil Technology | without built-in bidirectional peak limiting diode suppressor |
Operating Time |
|
Minimum Switching Voltage | 17 V control circuit |
Maximum Operating Rate | 3600 cyc/h 60 °C |
Tightening Torque |
|
Mechanical Durability | 15000000 cycles |
Auxiliary Contacts Type |
|
Compatibility Code | LC1D |
Overvoltage Category | III |
[Ui] Rated Insulation Voltage |
|
Heat Dissipation | 2-3 W 50/60 Hz control circuit |
Protective Cover | with |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1503009EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Circularity Profile | ENVEOLI1503009EN |
Eu Rohs Directive | Compliant |
Product Certifications |
|
Standards |
|
Flame Retardance | V1 conforming to UL 94 |
Protective Treatment | THIEC 60068-2-30 |
Ip Degree Of Protection | IP2X VDE 0106 |
Mechanical Robustness |
|
Operating Altitude | 9842.52 ft (3000 m) without derating |
Fire Resistance | 850 °C IEC 60695-2-1 |
Permissible Ambient Air Temperature Around The Device |
|
