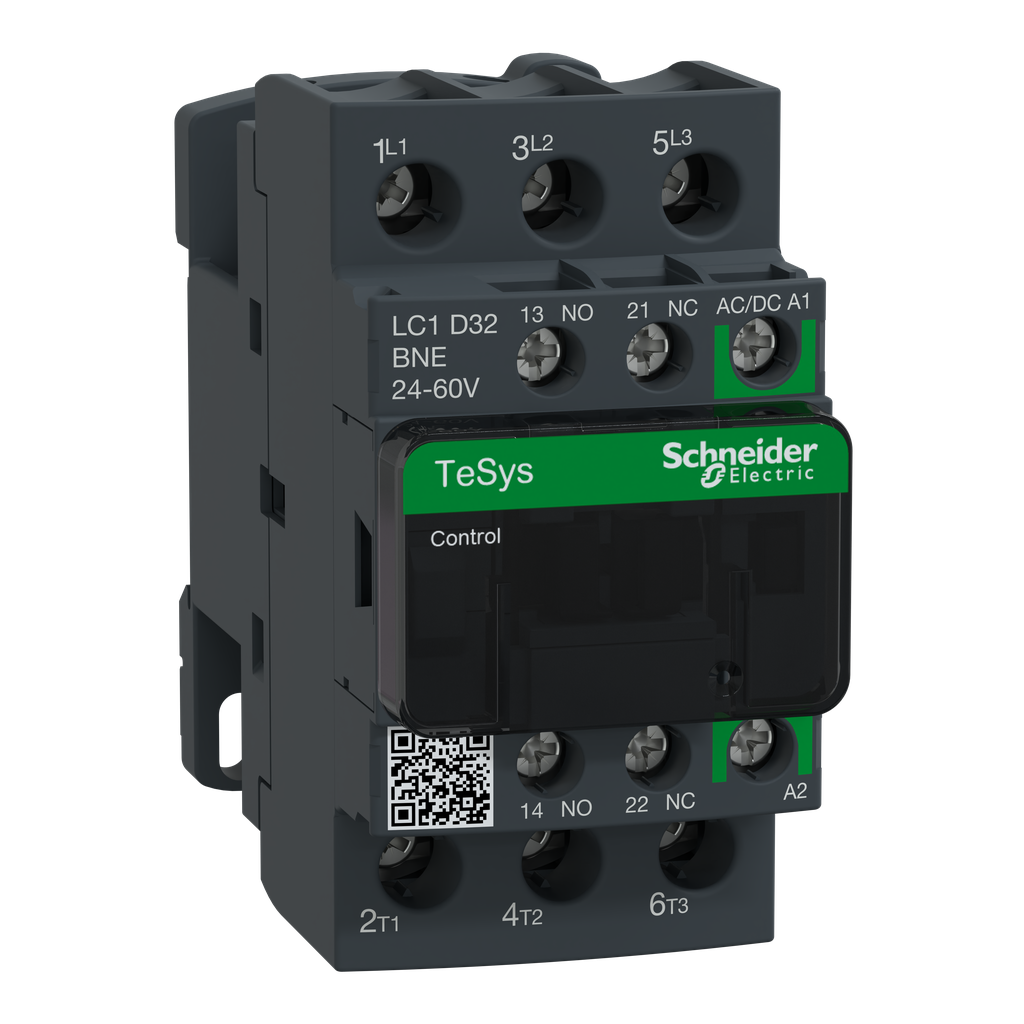

LC1D32BNE - IEC contactor, TeSys Deca Green, nonreversing, 32A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24/60VAC/VDC coil, open

LC1D32BNE

IEC contactor, TeSys Deca Green, nonreversing, 32A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24/60VAC/VDC coil, open

TeSys D Green contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 32A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 7.5HP at 200 to 208VAC, 10HP at 240VAC, 20HP at 480VAC and 30HP at 600VAC three phase. Contactor is also rated for 2HP at 115VAC and 5HP at 240VAC single phase. When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 80A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Equipped with an electronic coil, wide band voltage 24-60V, AC/DC compatible, low consumption. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.97 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

[Uc] Control Circuit Voltage	24...60 V AC 50/60 Hz 24...60 V DC
[Ue] Rated Operational Voltage	power circuit <= 690 V AC 25...400 Hz
Range Of Product	TeSys Deca
Contactor Application	motor control resistive load
Product Or Component Type	contactor
Range	TeSys TeSys Deca
Utilisation Category	AC-1 AC-3 AC-3e
[Ie] Rated Operational Current	32 A 60 °C) <= 440 V AC-3 power circuit 50 A 60 °C) <= 440 V AC-1 power circuit 32 A 60 °C) <= 440 V AC-3e power circuit
Poles Description	3P
Device Short Name	LC1D
Warranty	18 months
Non-Overlap Time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Minimum Switching Current	5 mA signalling circuit
Power Dissipation Per Pole	2 W AC-3 5 W AC-1 2 W AC-3e
Average Impedance	2 mOhm - Ith 50 A 50 Hz power circuit
Auxiliary Contact Composition	1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current	10 A 60 °C signalling circuit 50 A 60 °C power circuit
Control Circuit Voltage Limits	<= 0.1 Uc -40-70 °C drop-out AC/DC 0.85...1.1 Uc -40-60 °C operational AC 0.8...1.1 Uc -40-60 °C operational DC 1...1.1 Uc 60-70 °C operational AC/DC
Mounting Support	rail plate
Control Circuit Type	AC/DC 50/60 Hz AC/DC electronic
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Pollution Degree	3
Hold-In Power Consumption In W	0.6-0.6 W 20 °C
Insulation Resistance	> 10 MOhm signalling circuit
Rated Breaking Capacity	550 A 440 V power circuit IEC 60947
Irms Rated Making Capacity	140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 550 A 440 V power circuit IEC 60947
Associated Fuse Rating	10 A gG signalling circuit IEC 60947-5-1 63 A gG <= 690 V type 1 power circuit 63 A gG <= 690 V type 2 power circuit
Inrush Power In Va	15-15 VA 50/60 Hz 20 °C)
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Pole Contact Composition	3 NO
Connections - Terminals	control circuit screw clamp terminals 1 1-4 mm² flexible without cable end control circuit screw clamp terminals 2 1-4 mm² flexible without cable end control circuit screw clamp terminals 1 1-4 mm² flexible with cable end control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end control circuit screw clamp terminals 1 1-4 mm² solid control circuit screw clamp terminals 2 1-4 mm² solid power circuit screw clamp terminals 1 2.5-10 mm² flexible without cable end power circuit screw clamp terminals 2 2.5-10 mm² flexible without cable end power circuit screw clamp terminals 1 1-10 mm² flexible with cable end power circuit screw clamp terminals 2 1.5-6 mm² flexible with cable end power circuit screw clamp terminals 1 1.5-10 mm² solid power circuit screw clamp terminals 2 2.5-10 mm² solid
Coil Technology	built-in bidirectional peak limiting
Operating Time	45...55 ms closing 20...90 ms opening
Minimum Switching Voltage	17 V signalling circuit
Maximum Operating Rate	3600 cyc/h 60 °C
Signalling Circuit Frequency	25...400 Hz
Tightening Torque	control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm control circuit 1.7 N.m screw clamp terminals Philips No 2 power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm power circuit 2.5 N.m screw clamp terminals Philips No 2 power circuit 2.5 N.m screw clamp terminals pozidriv No 2 M4 control circuit 1.7 N.m screw clamp terminals pozidriv No 2 M3.5
Electrical Durability	2.1 Mcycles 29 A AC-3 <= 440 V 0.9 Mcycles 50 A AC-1 <= 440 V 2.1 Mcycles 29 A AC-3e <= 440 V
Mechanical Durability	15 Mcycles
Inrush Power In W	14-14 W 20 °C)
Auxiliary Contacts Type	mechanically linked 1 NO + 1 NC IEC 60947-5-1 mirror contact 1 NC IEC 60947-4-1
Compatibility Code	LC1D
Hold-In Power Consumption In Va	0.9-0.9 VA 50/60 Hz 20 °C)
Overvoltage Category	III
Maximum Horse Power Rating	2 hp 115 V at AC 50/60 Hz for 1 phase 5 hp 230/240 V at AC 50/60 Hz for 1 phase 10 hp 200/208 V at AC 50/60 Hz for 3 phase 10 hp 230/240 V at AC 50/60 Hz for 3 phase 20 hp 460/480 V at AC 50/60 Hz for 3 phase 25 hp 575/600 V at AC 50/60 Hz for 3 phase
Motor Power Kw	7.5 kW 220...230 V AC 50 Hz AC-3) 15 kW 380...400 V AC 50 Hz AC-3) 15 kW 415 V AC 50 Hz AC-3) 15 kW 440 V AC 50 Hz AC-3) 18.5 kW 500 V AC 50 Hz AC-3) 18.5 kW 660...690 V AC 50 Hz AC-3) 7.5 kW 220...230 V AC 50 Hz AC-3e) 15 kW 380...400 V AC 50 Hz AC-3e) 15 kW 415 V AC 50 Hz AC-3e) 15 kW 440 V AC 50 Hz AC-3e) 18.5 kW 500 V AC 50 Hz AC-3e) 18.5 kW 660...690 V AC 50 Hz AC-3e)
[Ui] Rated Insulation Voltage	power circuit 690 V IEC 60947-4-1 signalling circuit 690 V IEC 60947-1
[Icw] Rated Short-Time Withstand Current	100 A - 1 s signalling circuit 120 A - 500 ms signalling circuit 140 A - 100 ms signalling circuit 60 A 40 °C - 10 min power circuit 138 A 40 °C - 1 min power circuit 260 A 40 °C - 10 s power circuit 430 A 40 °C - 1 s power circuit
Heat Dissipation	0.6-0.6 W 50/60 Hz
Protective Cover	with
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1609002
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1609002EN
Eu Rohs Directive	Compliant
Halogen Content Performance	Halogen free plastic parts & cables product
Product Certifications	CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping) UKCA
Height	85 mm
Standards	EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC 60335-1
Climatic Withstand	IACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat
Net Weight	0.438 kg
Flame Retardance	V1 conforming to UL 94
Ip Degree Of Protection	IP20 front face IEC 60529
Mechanical Robustness	vibrations contactor open 2 Gn, 5...300 Hz) vibrations contactor closed 4 Gn, 5...300 Hz) shocks contactor closed 15 Gn for 11 ms) shocks contactor open 8 Gn for 11 ms)
Operating Altitude	0...9842.52 ft (0...3000 m)
Fire Resistance	850 °C IEC 60695-2-1
Width	45 mm
Depth	92 mm
Permissible Ambient Air Temperature Around The Device	-40-60 °C 60-70 °C with derating
