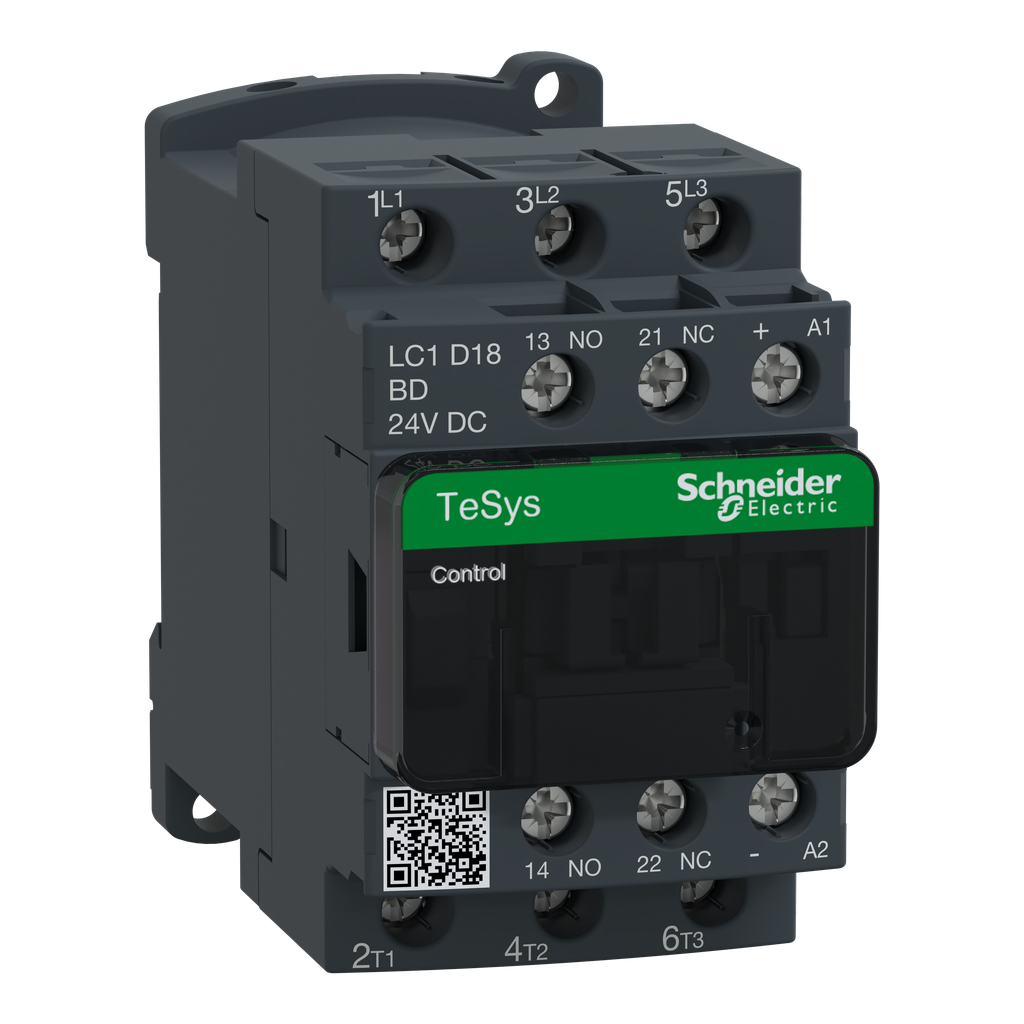

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 18A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 5HP at 200-208VAC, 5HP at 240VAC, 10HP at 480VAC and 15HP at 600VAC three phase. Contactor is also rated for 1HP at 115VAC and 3HP at 240VAC single phase. When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 40A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.03 inches tall, 1.77 inches wide and 3.74 inches deep. It weighs 1.08 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
Brand: Schneider Electric
Add to Quote Catalogue[Uc] Control Circuit Voltage | 24 V DC |
---|---|
[Ue] Rated Operational Voltage |
|
Range Of Product | TeSys Deca |
Contactor Application |
|
Product Or Component Type | contactor |
Utilisation Category |
|
[Ie] Rated Operational Current |
|
Poles Description | 3P |
Device Short Name | LC1D |
Warranty | 18 months |
Non-Overlap Time |
|
Minimum Switching Current | 5 mA signalling circuit |
Power Dissipation Per Pole |
|
Average Impedance | 2.5 mOhm - Ith 32 A 50 Hz power circuit |
Auxiliary Contact Composition | 1 NO + 1 NC |
[Ith] Conventional Free Air Thermal Current |
|
Control Circuit Voltage Limits |
|
Mounting Support |
|
Contact Compatibility | M4 |
Control Circuit Type | DC standard |
Safety Reliability Level |
|
Pollution Degree | 3 |
Hold-In Power Consumption In W | 5.4-5.4 W 20 °C |
Insulation Resistance | > 10 MOhm signalling circuit |
Rated Breaking Capacity | 300 A 440 V power circuit IEC 60947 |
Irms Rated Making Capacity |
|
Associated Fuse Rating |
|
[Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
Pole Contact Composition | 3 NO |
Connections - Terminals |
|
Coil Technology | with integral suppression device |
Time Constant | 28 ms |
Operating Time |
|
Minimum Switching Voltage | 17 V signalling circuit |
Maximum Operating Rate | 3600 cyc/h 60 °C |
Signalling Circuit Frequency | 25...400 Hz |
Tightening Torque |
|
Electrical Durability |
|
Mechanical Durability | 30 Mcycles |
Inrush Power In W | 5.4-5.4 W 20 °C) |
Auxiliary Contacts Type |
|
Compatibility Code | LC1D |
Overvoltage Category | III |
Maximum Horse Power Rating |
|
Motor Power Kw |
|
[Ui] Rated Insulation Voltage |
|
[Icw] Rated Short-Time Withstand Current |
|
Protective Cover | with |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110230EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI1102030EN |
Eu Rohs Directive | Compliant |
Product Certifications |
|
Height | 77 mm |
Standards |
|
Climatic Withstand |
|
Net Weight | 0.49 kg |
Flame Retardance | V1 conforming to UL 94 |
Protective Treatment | THIEC 60068-2-30 |
Ip Degree Of Protection | IP20 front face IEC 60529 |
Mechanical Robustness |
|
Operating Altitude | 0...9842.52 ft (0...3000 m) |
Fire Resistance | 850 °C IEC 60695-2-1 |
Width | 45 mm |
Depth | 95 mm |
Permissible Ambient Air Temperature Around The Device |
|
