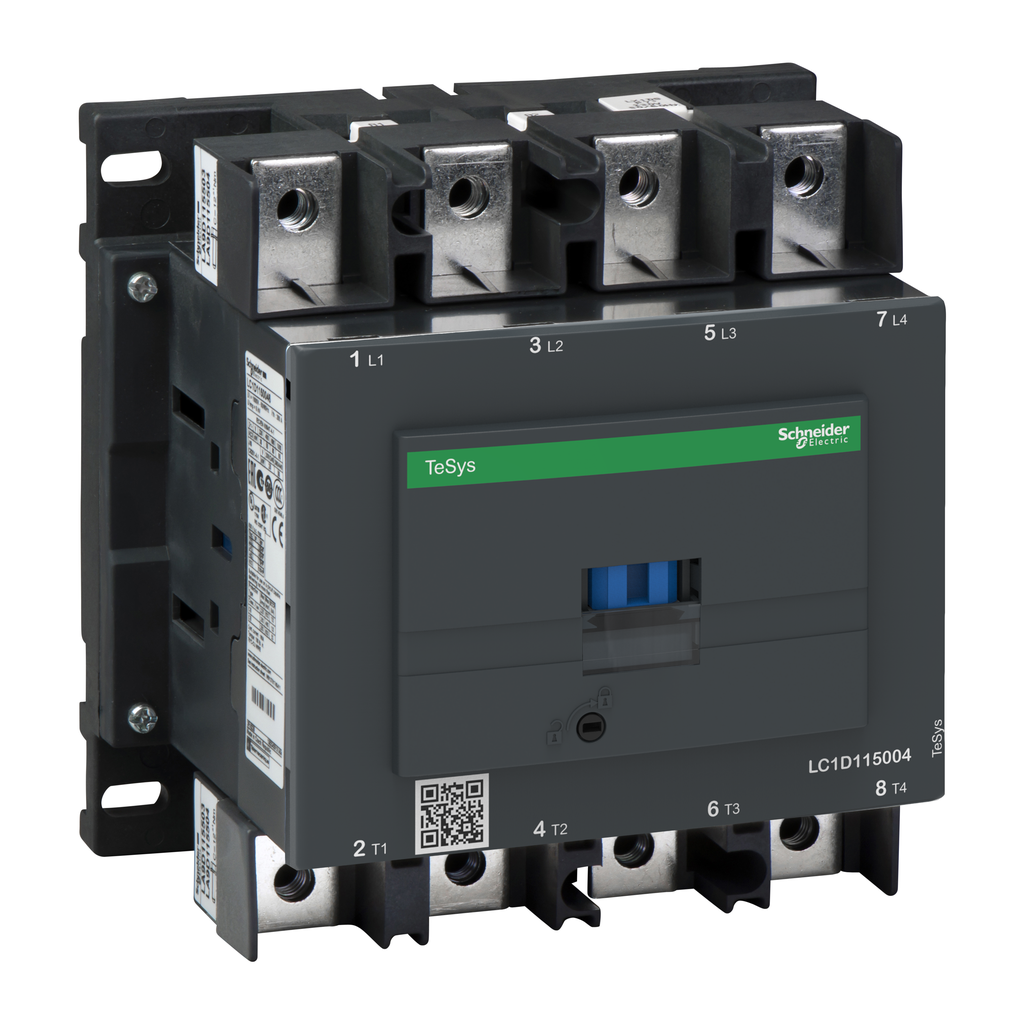

LC1D1150046BD - IEC contactor, TeSys Deca, nonreversing, 200A resistive, 4 pole, 4 NO, 24VDC coil, open style

LC1D1150046BD

IEC contactor, TeSys Deca, nonreversing, 200A resistive, 4 pole, 4 NO, 24VDC coil, open style

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 200A resistive load rating. Contactor is supplied with a 24 VDC coil with integral suppression device. Ring lug connectors are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.22 inches tall, 6.10 inches wide and 4.53 inches deep. It weighs 6.31 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

[Uc] Control Circuit Voltage	24 V DC
[Ue] Rated Operational Voltage	power circuit <= 1000 V AC 25...400 Hz power circuit <= 460 V DC
Range Of Product	TeSys Deca
Contactor Application	resistive load
Product Or Component Type	contactor
Range	TeSys
Utilisation Category	AC-1 AC-3 AC-3e AC-4
[Ie] Rated Operational Current	200 A 60 °C) <= 440 V AC AC-1 power circuit
Poles Description	4P
Device Short Name	LC1D
Warranty	18 months
Power Dissipation Per Pole	24 W AC-1
Average Impedance	0.6 mOhm - Ith 200 A 50 Hz power circuit
[Ith] Conventional Free Air Thermal Current	200 A 60 °C power circuit
Control Circuit Voltage Limits	0.75...1.2 Uc -40-55 °C operational DC 0.15...0.4 Uc -40-70 °C drop-out DC 1...1.2 Uc 55-70 °C operational DC
Mounting Support	plate rail
Contact Compatibility	M8
Control Circuit Type	DC standard
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Pollution Degree	3
Hold-In Power Consumption In W	2.4-5.1 W 20 °C
Rated Breaking Capacity	1100 A 440 V power circuit IEC 60947
Irms Rated Making Capacity	1260 A 440 V power circuit IEC 60947
Associated Fuse Rating	250 A gG <= 690 V type 1 power circuit 200 A gG <= 690 V type 2 power circuit
[Uimp] Rated Impulse Withstand Voltage	8 kV IEC 60947
Pole Contact Composition	4 NO
Connections - Terminals	control circuit lugs-ring terminals 8 mm power circuit lugs-ring terminals 25 mm power circuit bars 1 5 x 25 mm
Coil Technology	with integral suppression device
Time Constant	25 ms
Operating Time	20...35 ms closing 40...75 ms opening
Maximum Operating Rate	1200 cyc/h 60 °C
Tightening Torque	control circuit 1.2 N.m lugs-ring terminals flat Ø 6 mm M3.5 control circuit 1.2 N.m lugs-ring terminals Philips No 2 M3.5 power circuit 12 N.m lugs-ring terminals hexagonal 13 mm M8 power circuit 12 N.m bars hexagonal 13 mm M8 control circuit 1.2 N.m lugs-ring terminals pozidriv No 2 M3.5
Electrical Durability	0.8 Mcycles 200 A AC-1 <= 440 V
Inrush Power In W	270-365 W 20 °C)
Mechanical Durability	8 Mcycles
Compatibility Code	LC1D
Overvoltage Category	III
[Ui] Rated Insulation Voltage	power circuit 600 V CSA power circuit 600 V UL power circuit 1000 V IEC 60947-4-1
[Icw] Rated Short-Time Withstand Current	250 A 40 °C - 10 min power circuit 550 A 40 °C - 1 min power circuit 950 A 40 °C - 10 s power circuit 1100 A 40 °C - 1 s power circuit
Protective Cover	with
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP060301EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI100405
Eu Rohs Directive	Compliant
Product Certifications	LROS (Lloyds register of shipping) RINA CSA DNV GOST CCC UL GL BV UKCA
Height	158 mm
Standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
Climatic Withstand	IACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat
Net Weight	2.86 kg
Flame Retardance	V1 conforming to UL 94
Protective Treatment	THIEC 60068-2-30
Ip Degree Of Protection	IP20 front face IEC 60529
Mechanical Robustness	vibrations contactor open 2 Gn, 5...300 Hz) vibrations contactor closed 4 Gn, 5...300 Hz) shocks contactor closed 15 Gn for 11 ms) shocks contactor open 6 Gn for 11 ms)
Operating Altitude	0...9842.52 ft (0...3000 m)
Fire Resistance	850 °C IEC 60695-2-1
Width	155 mm
Depth	115 mm
Permissible Ambient Air Temperature Around The Device	-40-60 °C 60-70 °C with derating

IEC contactor, TeSys Deca, nonreversing, 200A resistive, 4 pole, 4 NO, 24VDC coil, open style
