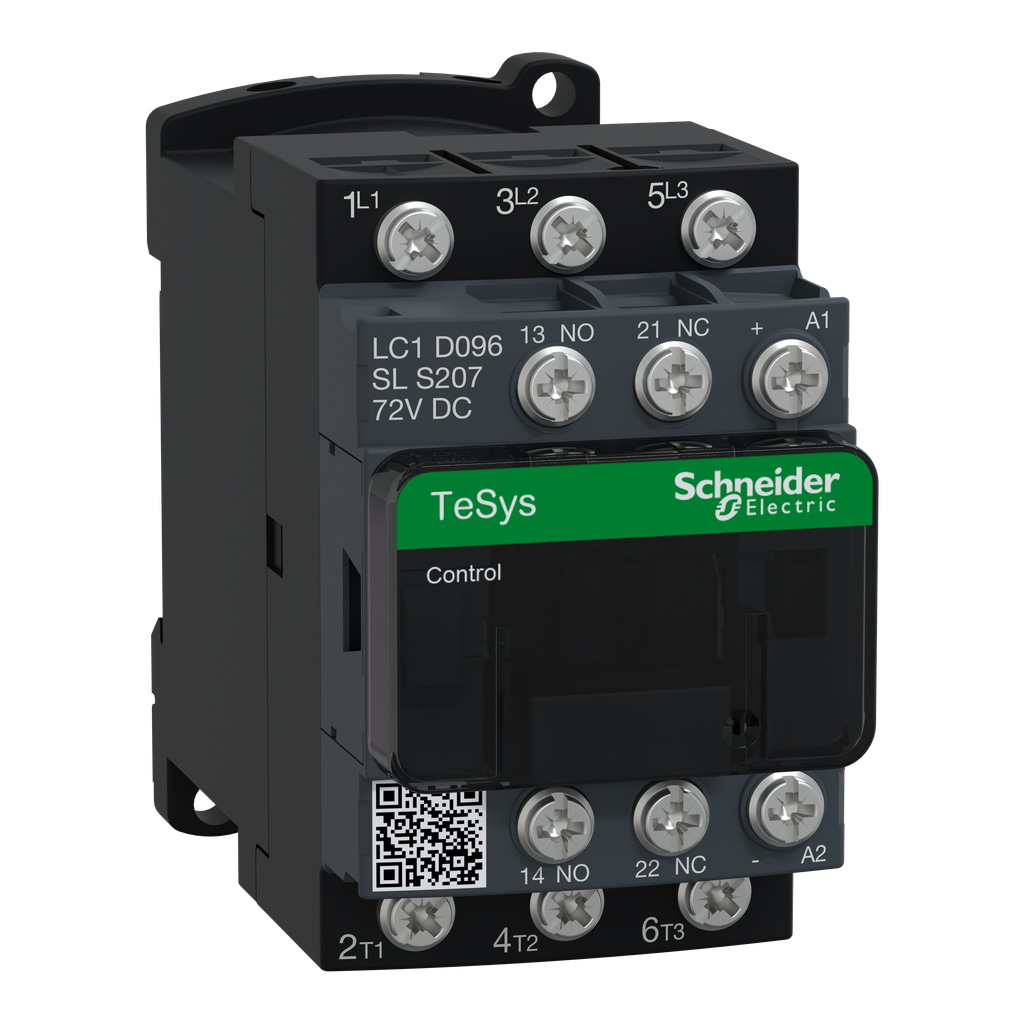

This TeSys D contactor has been designed for motor control in railway applications. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 9A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 2HP at 200 to 208VAC, 2HP at 240VAC, 5HP at 480VAC and 7.5HP at 600VAC three phase. Contactor is also rated for 0.33HP at 115VAC and 1HP at 240VAC single phase. Contactor is supplied with a low consumption 72 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as stanard. The NC contact is mirror certified. Ring-lug screw terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.15 inches tall, 1.77 inches wide and 3.74 inches deep. It weighs 1.06 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
Brand: Schneider Electric
Add to Quote Catalogue[Ue] Rated Operational Voltage | power circuit <= 690 V AC 25...400 Hz |
---|---|
Range Of Product | TeSys Deca |
Contactor Application |
|
Product Or Component Type | contactor |
Range |
|
Utilisation Category |
|
[Ie] Rated Operational Current |
|
Poles Description | 3P |
Device Short Name | LC1D |
Warranty | 18 months |
Product Certifications |
|
Non-Overlap Time |
|
Minimum Switching Current | 5 mA signalling circuit |
Power Dissipation Per Pole |
|
Average Impedance | 2.5 mOhm - Ith 25 A 50 Hz power circuit |
Auxiliary Contact Composition | 1 NO + 1 NC |
[Ith] Conventional Free Air Thermal Current |
|
Control Circuit Voltage Limits |
|
Mounting Support |
|
Contact Compatibility | M5 |
Control Circuit Type | DC low consumption |
Standards |
|
Safety Reliability Level |
|
Hold-In Power Consumption In W | 4-4 W 20 °C |
Insulation Resistance | > 10 MOhm signalling circuit |
Rated Breaking Capacity | 250 A 440 V power circuit IEC 60947 |
Irms Rated Making Capacity |
|
Associated Fuse Rating |
|
[Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
Pole Contact Composition | 3 NO |
Connections - Terminals |
|
Coil Technology | with integral suppression device |
Time Constant | 37 ms |
Operating Time |
|
Minimum Switching Voltage | 17 V signalling circuit |
Maximum Operating Rate | 3600 cyc/h 60 °C |
Tightening Torque |
|
Electrical Durability |
|
Mechanical Durability | 30 Mcycles |
Inrush Power In W | 4-4 W 20 °C) |
Auxiliary Contacts Type |
|
Compatibility Code | LC1D |
Operating Altitude | 0...9842.52 ft (0...3000 m) |
Overvoltage Category | III |
Motor Power Kw |
|
[Ui] Rated Insulation Voltage |
|
Protective Cover | with |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2205004 |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Compliant |
Height | 77 mm |
Climatic Withstand |
|
Net Weight | 0.32 kg |
Ambient Air Temperature For Storage | -60-80 °C |
Mechanical Robustness |
|
Fire Resistance | 850 °C IEC 60695-2-1 |
Width | 45 mm |
Depth | 95 mm |
