Home > Schneider Electric > Automation & Control > Starters & Contactors > LC1D093BL – IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style

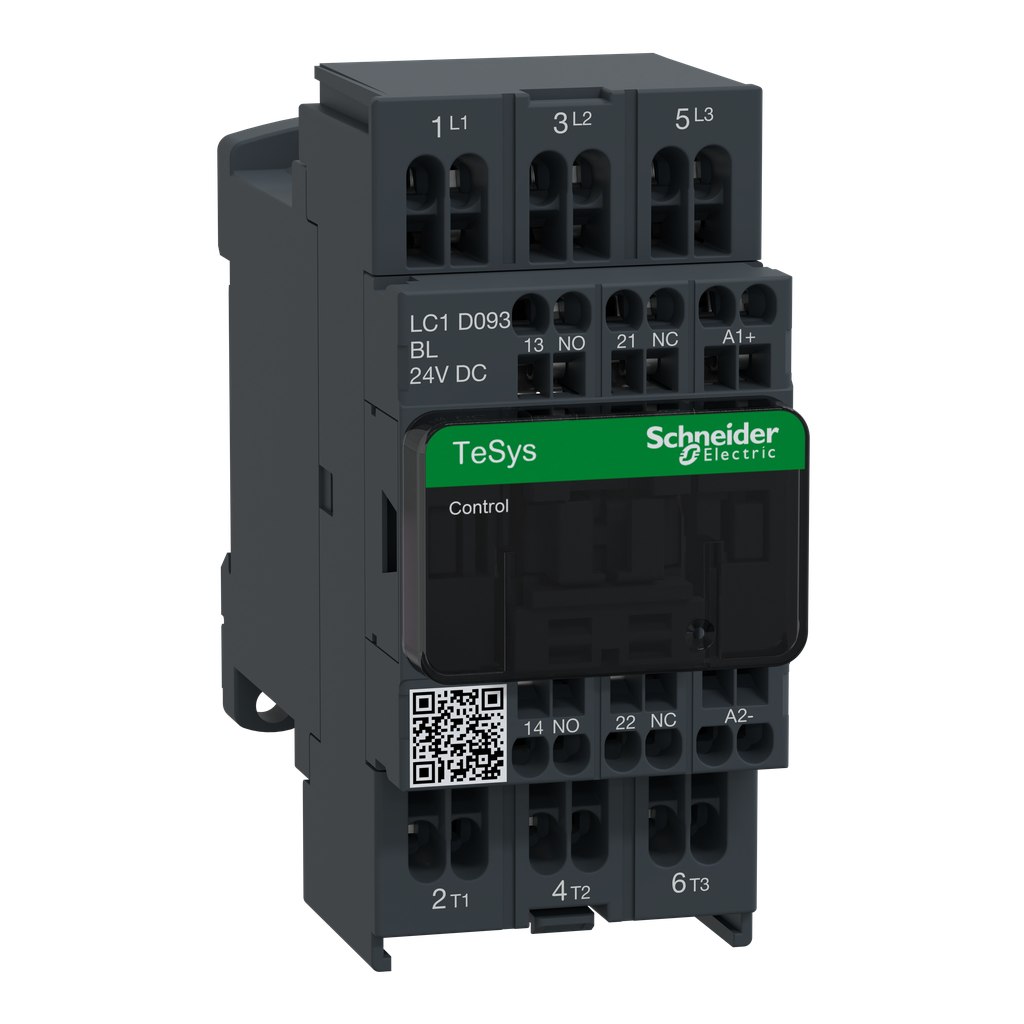

LC1D093BL – IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style
LC1D093BL
IEC contactor, TeSys Deca, nonreversing, 9A, 5HP at 480VAC, 3 phase, 3 pole, 3 NO, low consumption 24VDC coil, open style

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 9A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 2HP at 200 to 208VAC, 2HP at 240VAC, 5HP at 480VAC and 7.5HP at 600VAC three phase. Contactor is also rated for 0.33HP at 115VAC and 1HP at 240VAC single phase. Contactor is supplied with a low consumption 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as stanard. The NC contact is mirror certified. Spring terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.15 inches tall, 1.77 inches wide and 3.74 inches deep. It weighs 1.06 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
[Uc] Control Circuit Voltage 24 V DC
[Ue] Rated Operational Voltage
  • power circuit <= 690 V AC 25...400 Hz
  • power circuit <= 300 V DC
Range Of Product TeSys Deca
Contactor Application
  • resistive load
  • motor control
Product Or Component Type contactor
Utilisation Category
  • AC-1
  • AC-3
  • AC-4
  • AC-3e
[Ie] Rated Operational Current
  • 9 A 60 °C) <= 440 V AC AC-3 power circuit
  • 20 A 60 °C) <= 440 V AC AC-1 power circuit
  • 9 A 60 °C) <= 440 V AC AC-3e power circuit
Poles Description 3P
Device Short Name LC1D
Warranty 18 months
Non-Overlap Time
  • 1.5 ms on de-energisation between NC and NO contact
  • 1.5 ms on energisation between NC and NO contact
Minimum Switching Current 5 mA signalling circuit
Power Dissipation Per Pole
  • 1.56 W AC-1
  • 0.2 W AC-3
  • 0.2 W AC-3e
Average Impedance 2.5 mOhm - Ith 16 A 50 Hz power circuit
Auxiliary Contact Composition 1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current
  • 10 A 60 °C signalling circuit
  • 16 A 60 °C power circuit
Control Circuit Voltage Limits
  • 0.1...0.3 Uc -40-70 °C drop-out DC
  • 0.8...1.25 Uc -40-60 °C operational DC
  • 1...1.25 Uc 60-70 °C operational DC
Mounting Support
  • rail
  • plate
Contact Compatibility M5
Control Circuit Type DC low consumption
Safety Reliability Level
  • B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
  • B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Pollution Degree 3
Hold-In Power Consumption In W 2.4-2.4 W 20 °C
Insulation Resistance > 10 MOhm signalling circuit
Rated Breaking Capacity 250 A 440 V power circuit IEC 60947
Irms Rated Making Capacity
  • 250 A 440 V power circuit IEC 60947
  • 140 A AC signalling circuit IEC 60947-5-1
  • 250 A DC signalling circuit IEC 60947-5-1
Associated Fuse Rating
  • 10 A gG signalling circuit IEC 60947-5-1
  • 25 A gG <= 690 V type 1 power circuit
  • 20 A gG <= 690 V type 2 power circuit
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947
Pole Contact Composition 3 NO
Connections - Terminals
  • power circuit spring terminals 1 2.5-2.5 mm² flexible without cable end
  • power circuit spring terminals 2 2.5-2.5 mm² flexible without cable end
  • control circuit spring terminals 1 2.5-2.5 mm² flexible without cable end
  • control circuit spring terminals 2 2.5-2.5 mm² flexible without cable end
Coil Technology built-in bidirectional peak limiting diode suppressor
Time Constant 40 ms
Operating Time
  • 65.45...88.55 ms closing
  • 20...30 ms opening
Minimum Switching Voltage 17 V signalling circuit
Maximum Operating Rate 3600 cyc/h 60 °C
Signalling Circuit Frequency 25...400 Hz
Electrical Durability
  • 0.6 Mcycles 25 A AC-1 <= 440 V
  • 2 Mcycles 9 A AC-3 <= 440 V
  • 2 Mcycles 9 A AC-3e <= 440 V
Mechanical Durability 30 Mcycles
Inrush Power In W 2.4-2.4 W 20 °C)
Auxiliary Contacts Type
  • mechanically linked 1 NO + 1 NC IEC 60947-5-1
  • mirror contact 1 NC IEC 60947-4-1
Compatibility Code LC1D
Overvoltage Category III
Maximum Horse Power Rating
  • 1 hp 230/240 V at AC 50/60 Hz for 1 phase
  • 2 hp 200/208 V at AC 50/60 Hz for 3 phase
  • 2 hp 230/240 V at AC 50/60 Hz for 3 phase
  • 5 hp 460/480 V at AC 50/60 Hz for 3 phase
  • 7.5 hp 575/600 V at AC 50/60 Hz for 3 phase
  • 0.33 hp 115 V at AC 50/60 Hz for 1 phase
Motor Power Kw
  • 2.2 kW 220...230 V AC 50/60 Hz AC-3)
  • 4 kW 380...400 V AC 50/60 Hz AC-3)
  • 4 kW 415 V AC 50/60 Hz AC-3)
  • 4 kW 440 V AC 50/60 Hz AC-3)
  • 5.5 kW 500 V AC 50/60 Hz AC-3)
  • 5.5 kW 660...690 V AC 50/60 Hz AC-3)
  • 2.2 kW 220...230 V AC 50/60 Hz AC-3e)
  • 4 kW 380...400 V AC 50/60 Hz AC-3e)
  • 4 kW 415 V AC 50/60 Hz AC-3e)
  • 4 kW 440 V AC 50/60 Hz AC-3e)
  • 5.5 kW 500 V AC 50/60 Hz AC-3e)
  • 5.5 kW 660...690 V AC 50/60 Hz AC-3e)
  • 2.2 kW 400 V AC 50/60 Hz AC-4)
[Ui] Rated Insulation Voltage
  • power circuit 690 V IEC 60947-4-1
  • power circuit 600 V CSA
  • power circuit 600 V UL
  • signalling circuit 690 V IEC 60947-1
  • signalling circuit 600 V CSA
  • signalling circuit 600 V UL
[Icw] Rated Short-Time Withstand Current
  • 105 A 40 °C - 10 s power circuit
  • 210 A 40 °C - 1 s power circuit
  • 30 A 40 °C - 10 min power circuit
  • 61 A 40 °C - 1 min power circuit
  • 100 A - 1 s signalling circuit
  • 120 A - 500 ms signalling circuit
  • 140 A - 100 ms signalling circuit
Protective Cover with
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP110230EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
Toxic Heavy Metal Free Yes
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile ENVEOLI1102030EN
Eu Rohs Directive Compliant
Product Certifications
  • UL
  • GOST
  • CSA
  • CCC
  • GL
  • BV
  • LROS (Lloyds register of shipping)
  • DNV
  • RINA
  • UKCA
Height 99 mm
Standards
  • CSA C22.2 No 14
  • EN 60947-4-1
  • EN 60947-5-1
  • IEC 60947-4-1
  • IEC 60947-5-1
  • UL 508
  • IEC 60335-1
Climatic Withstand
  • IACS E10 exposure to damp heat
  • IEC 60947-1 Annex Q category D exposure to damp heat
Net Weight 0.48 kg
Flame Retardance V1 conforming to UL 94
Protective Treatment THIEC 60068-2-30
Ip Degree Of Protection IP20 front face IEC 60529
Mechanical Robustness
  • vibrations contactor open 2 Gn, 5...300 Hz)
  • vibrations contactor closed 4 Gn, 5...300 Hz)
  • shocks contactor open 10 Gn for 11 ms)
  • shocks contactor closed 15 Gn for 11 ms)
Operating Altitude 0...9842.52 ft (0...3000 m)
Fire Resistance 850 °C IEC 60695-2-1
Width 45 mm
Depth 95 mm
Permissible Ambient Air Temperature Around The Device
  • -40-60 °C
  • 60-70 °C with derating
