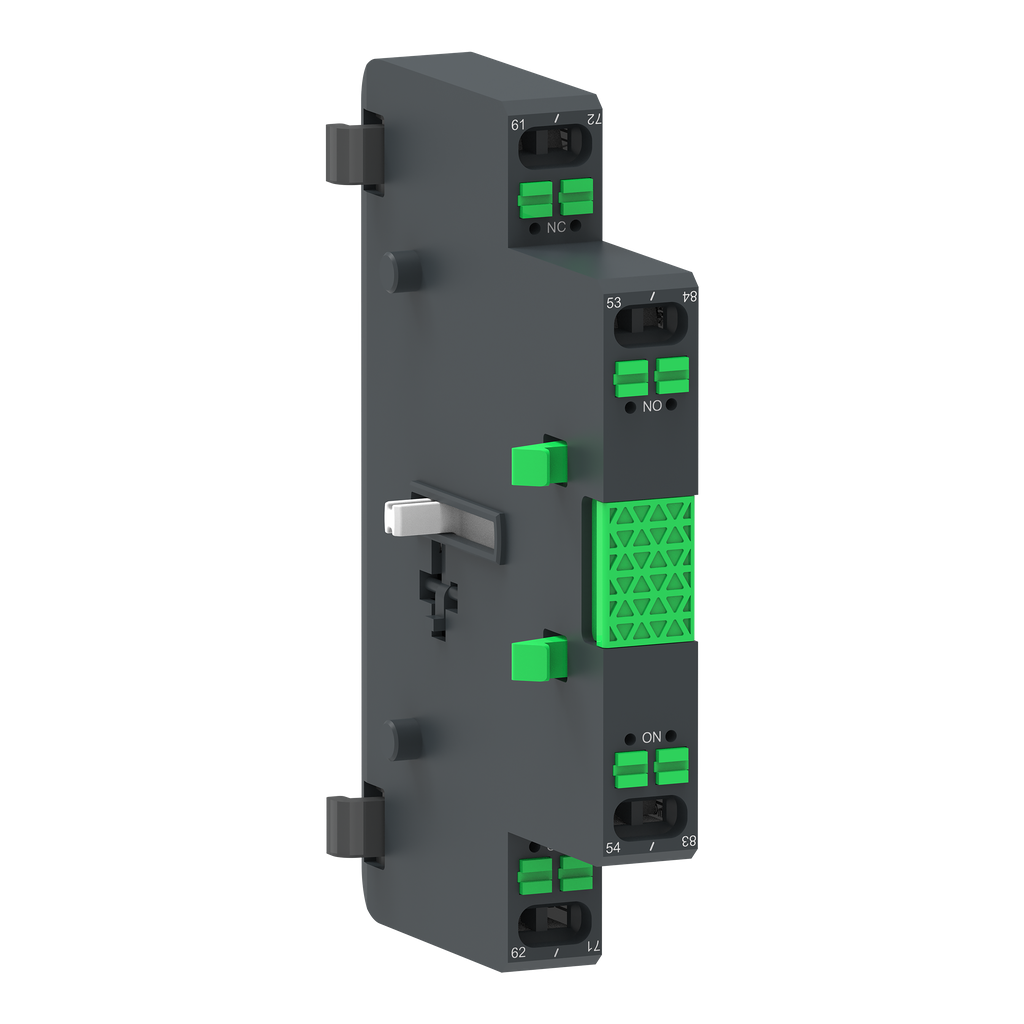

These accessories are auxiliary contact block 1NO+1NC for TeSys Giga contactors. Highly reliable and suitable for 17V 1mA to address more challenging specific control applications. It is designed to side mounting by spring terminals. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | TeSys G |
---|---|
Range Compatibility | TeSys G LC1G |
Product Or Component Type | auxiliary contact block |
Connections - Terminals |
|
Range | TeSys |
Pole Contact Composition | 1 NO + 1 NC |
Auxiliary Contacts Operation | instantaneous |
Device Short Name | LAG8N |
Non-Overlap Time |
|
Permissible Short-Time Rating |
|
Minimum Switching Current | 1 mA |
Height | 55.8 mm |
[Ith] Conventional Free Air Thermal Current | 10 A 60 °C |
[Ue] Rated Operational Voltage | 500 V AC 25...400 Hz |
Protection Type | gG fuse 10 A |
Insulation Resistance | > 10 MOhm |
Irms Rated Making Capacity |
|
Net Weight | 0.05 kg |
Mounting Location | side |
[Ui] Rated Insulation Voltage |
|
Minimum Switching Voltage | 17 V |
Mechanical Durability | 8 Mcycles |
Width | 15.4 mm |
Depth | 84.8 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2105013 |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI2105013 |
Eu Rohs Directive | Compliant |
Halogen Content Performance | Halogen free plastic parts product |
Product Certifications |
|
Ambient Air Temperature For Operation | -25-60 °C |
Standards |
|
Ip Degree Of Protection | IP20 conforming to IEC 60529 |
Ambient Air Temperature For Storage | -60-80 °C |
Protective Treatment | TH |
Operating Altitude | 9842.52 ft (3000 m) |
