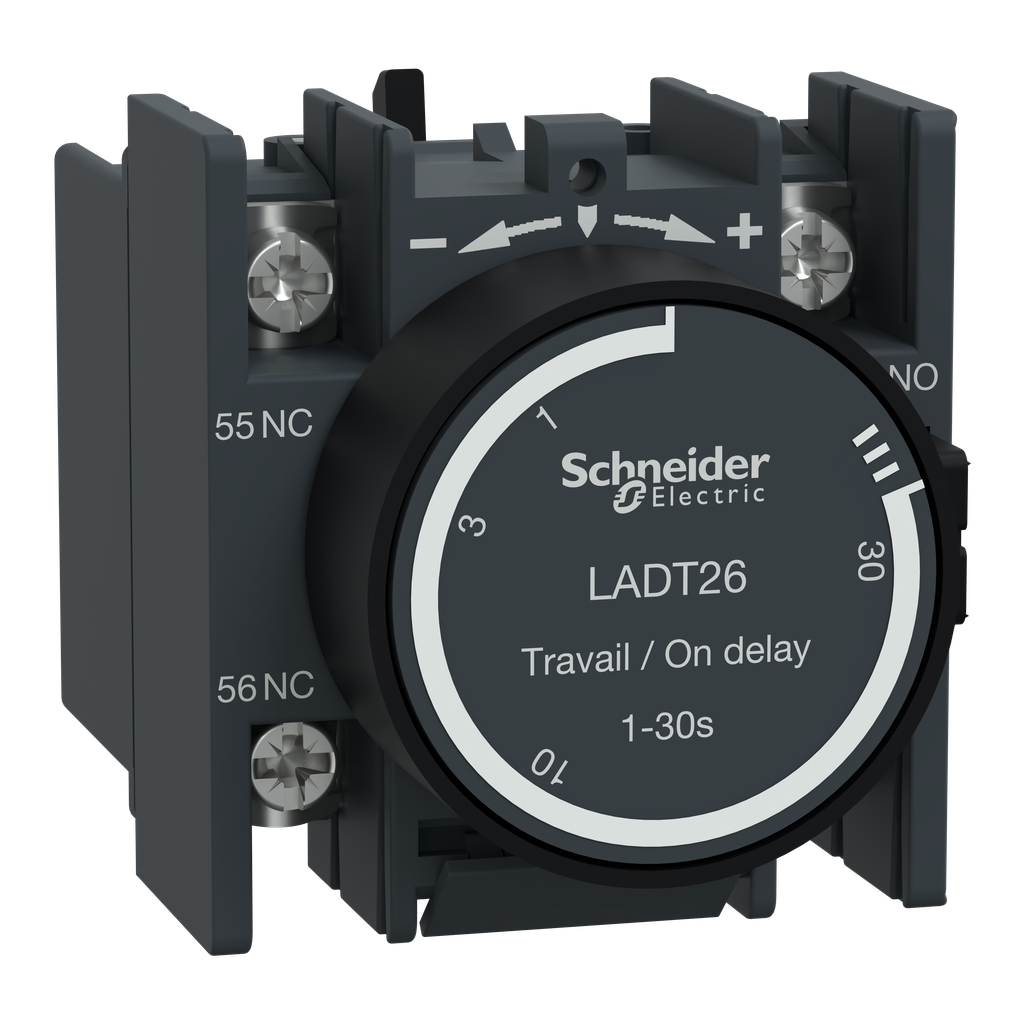

TeSys D time delay auxiliary contact block, for contactors LC1D and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 1-30s, connection by lugs-ring terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueProduct Certifications |
|
---|---|
[Ith] Conventional Free Air Thermal Current | 10 A 60 °C |
Standards |
|
Timer Type | on delay |
[Ue] Rated Operational Voltage | 690 V AC 25...400 Hz |
Range Compatibility |
|
Product Or Component Type | time delay auxiliary contact block |
Product Name | TeSys Deca |
Range |
|
Mounting Location | front |
Pole Contact Composition | 1 NO + 1 NC |
[Ui] Rated Insulation Voltage |
|
[Ie] Rated Operational Current |
|
Time Delay Range | 1...30 s |
Auxiliary Contacts Operation | time delay |
Warranty | 18 months |
Non-Overlap Time |
|
Permissible Short-Time Rating |
|
Minimum Switching Current | 5 mA |
Height | 48 mm |
Protection Type | gG fuse 10 A |
Insulation Resistance | > 10 MOhm |
Irms Rated Making Capacity |
|
Connections - Terminals | lugs-ring terminals 8 mm) |
Minimum Switching Voltage | 17 V |
Tightening Torque |
|
Mechanical Durability | 5 Mcycles |
Color | dark grey |
Width | 44 mm |
Depth | 61 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110702 |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: Cancer - www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | -40-70 °C |
Ip Degree Of Protection | IP2X conforming to IEC 60529 |
Ambient Air Temperature For Storage | -60-80 °C |
Environmental Characteristic | normal environment |
Protective Treatment | TH IEC 60068 |
Operating Altitude | 9842.52 ft (3000 m) |
