LADT23 - Time delay auxiliary contact block, TeSys Deca, 1NO 1NC, on delay 1-30s, front, spring terminals

LADT23

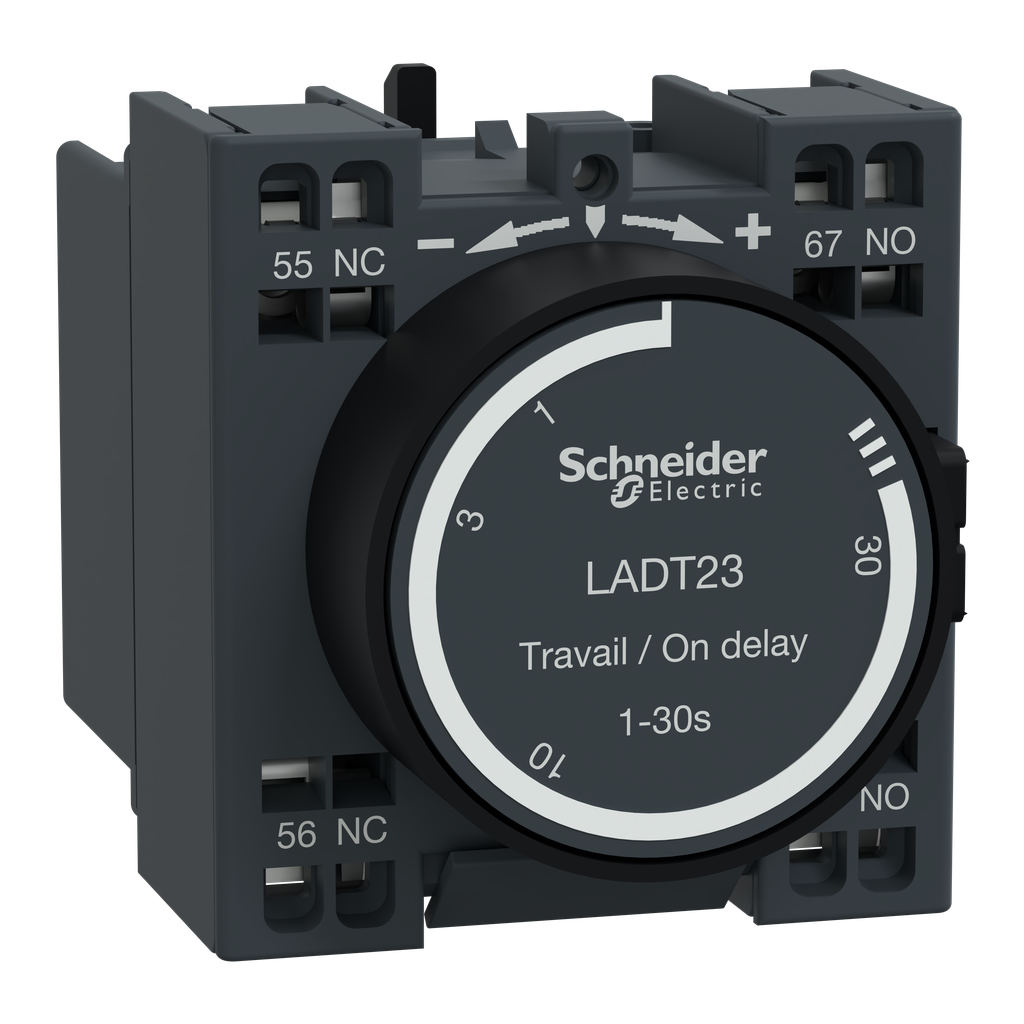

Time delay auxiliary contact block, TeSys Deca, 1NO + 1NC, on delay 1-30s, front, spring terminals

TeSys D time delay auxiliary contact block, for contactors LC1D and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 1-30s, connection by spring terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CB UL CSA CCC EAC UKCA
[Ith] Conventional Free Air Thermal Current	10 A 60 °C
Standards	GB/T 14048.5 EN/IEC 60947-5-1
Timer Type	on delay
[Ue] Rated Operational Voltage	690 V AC 25...400 Hz
Range Compatibility	TeSys D CAD TeSys D LC1D TeSys Deca CAD TeSys Deca LC1D
Product Or Component Type	time delay auxiliary contact block
Product Name	TeSys Deca
Range	TeSys TeSys Deca
Mounting Location	front
Pole Contact Composition	1 NO + 1 NC
[Ui] Rated Insulation Voltage	690 V IEC 60947-5-1 600 V UL 600 V CSA
[Ie] Rated Operational Current	6 A120 V AC-15 1.04 A690 V AC-15 0.55 A125 V DC-13 0.1 A600 V DC-13
Time Delay Range	1...30 s
Auxiliary Contacts Operation	time delay
Warranty	18 months
Non-Overlap Time	1.5 ms on de-energisation no overlap between NC and NO contact 1.5 ms on energisation no overlap between NC and NO contact
Permissible Short-Time Rating	100 A 60 °C 1 s 120 A 60 °C 500 ms 140 A 60 °C 100 ms
Minimum Switching Current	5 mA
Height	48 mm
Protection Type	gG fuse 10 A
Insulation Resistance	> 10 MOhm
Irms Rated Making Capacity	140 A AC 250 A DC
Connections - Terminals	spring terminals 2 2.5-2.5 mm²flexible without cable end spring terminals 2 2.5-2.5 mm²rigid
Minimum Switching Voltage	17 V
Mechanical Durability	5 Mcycles
Color	dark grey
Width	44 mm
Depth	61 mm
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110702
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: Cancer - www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant
Ambient Air Temperature For Operation	-40-70 °C
Ip Degree Of Protection	IP2X conforming to IEC 60529
Ambient Air Temperature For Storage	-60-80 °C
Environmental Characteristic	normal environment
Protective Treatment	TH IEC 60068
Operating Altitude	9842.52 ft (3000 m)
