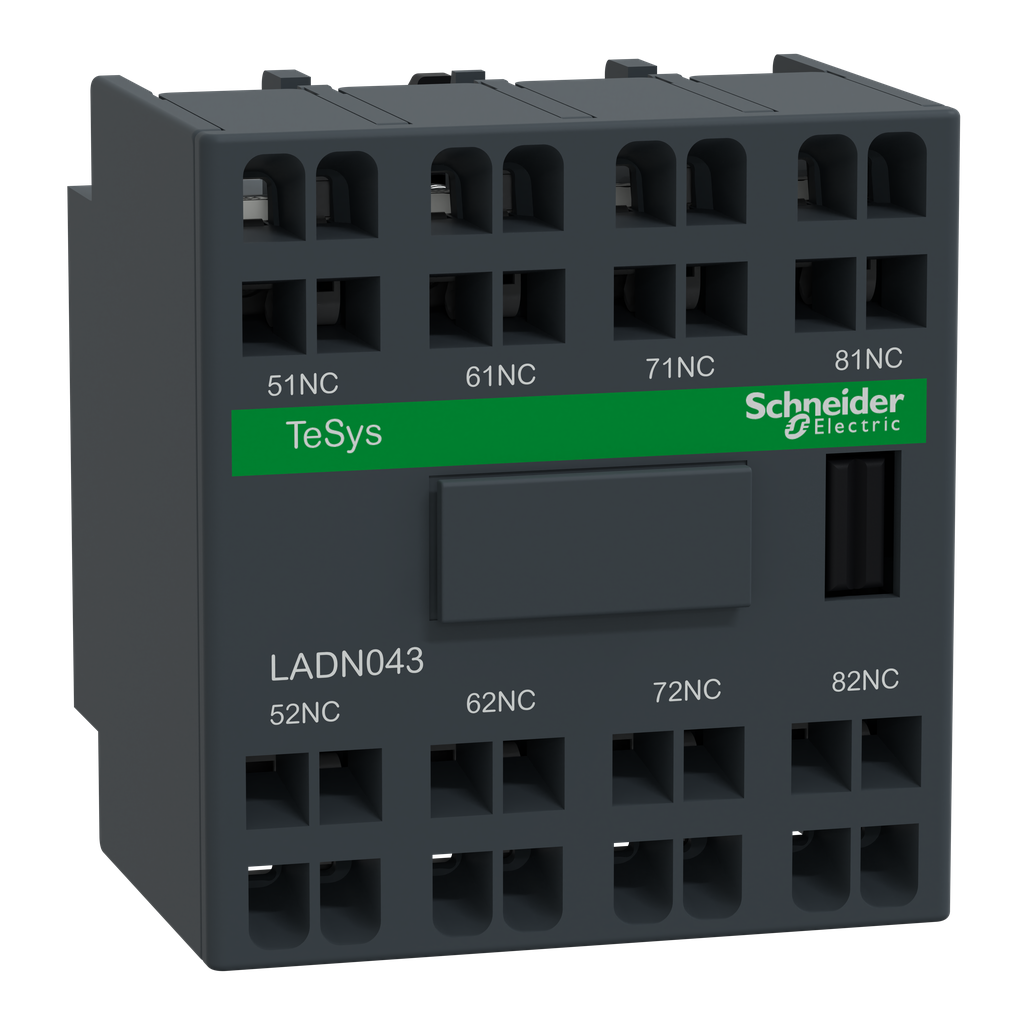

LADN043 is a Schneider Electric instantaneous auxiliary contact block for TeSys D contactors. It provides 4NC contacts rated up to 10A 690V AC, connection by spring terminals. Easy clip-on mounting on front, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC) and Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueProduct Certifications |
|
---|---|
[Ith] Conventional Free Air Thermal Current | 10 A 60 °C |
Standards |
|
[Ue] Rated Operational Voltage | 690 V AC 25...400 Hz |
Range Compatibility |
|
Product Or Component Type | auxiliary contact block |
Product Name | TeSys Deca |
Range |
|
Mounting Location | front |
Pole Contact Composition | 4 NC |
[Ui] Rated Insulation Voltage |
|
[Ie] Rated Operational Current |
|
Auxiliary Contacts Operation | instantaneous |
Device Short Name | LADN |
Warranty | 18 months |
Non-Overlap Time |
|
Permissible Short-Time Rating |
|
Minimum Switching Current | 5 mA |
Height | 48 mm |
Protection Type | gG fuse 10 A |
Insulation Resistance | > 10 MOhm |
Irms Rated Making Capacity |
|
Net Weight | 0.05 kg |
Connections - Terminals |
|
Minimum Switching Voltage | 17 V |
Mechanical Durability | 30 Mcycles |
Color | dark grey |
Width | 44 mm |
Depth | 42 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110807EN_V2 |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | -5-60 °C |
Ip Degree Of Protection | IP20 conforming to IEC 60529 |
Ambient Air Temperature For Storage | -60-80 °C |
Environmental Characteristic | normal environment |
Protective Treatment | TH IEC 60068 |
Operating Altitude | 9842.52 ft (3000 m) |
