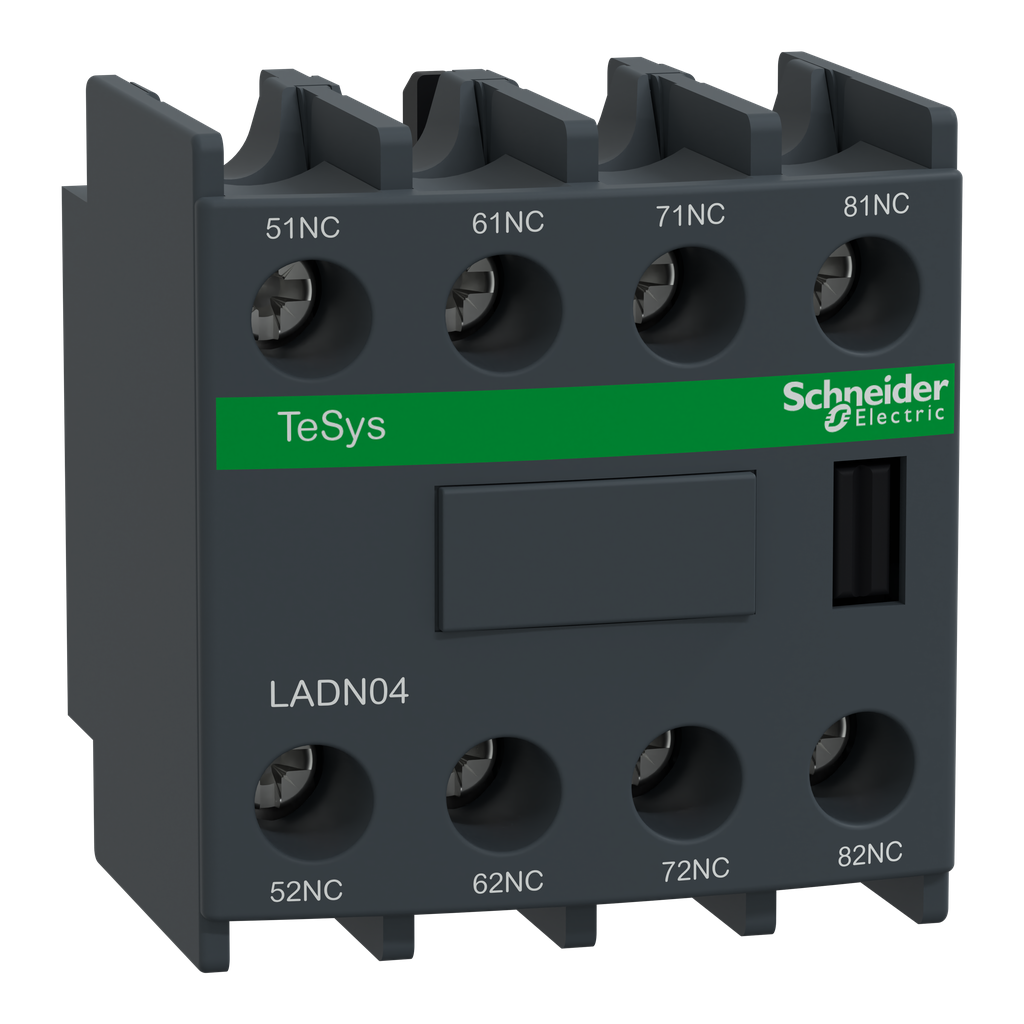

LADN04 is a Schneider Electric add-on auxiliary contact block for TeSys D and TeSys F contactors. Front mounting block, it provides 4NC instantaneous contacts rated up to 10A 690V AC. It can be used in safety applications. LADN04 is a Schneider Electric add-on auxiliary contact block for TeSys D and TeSys F contactors. It provides 4NC instantaneous contacts rated up to 10A 690V AC. It can be used in safety applications thanks to its NC certified mirror contacts. Easy to mount on front by clip-on, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Add-on block with 4NC mechanically linked auxiliary contacts, with instantaneous operation. Suitable to be included in the control of safety systems thanks to its NC certified mirror contacts. High electrical durability , several millions of operating cycles in AC-14/AC-15/DC-13 according conditions. Mounting by clip-on on front of all TeSys D and TeSys F contactors.
Brand: Schneider Electric
Add to Quote CatalogueProduct Certifications |
|
---|---|
[Ith] Conventional Free Air Thermal Current | 10 A 60 °C |
Standards |
|
[Ue] Rated Operational Voltage | 690 V AC 25...400 Hz |
Range Compatibility |
|
Product Or Component Type | auxiliary contact block |
Product Name | TeSys Deca |
Range |
|
Mounting Location | front |
Pole Contact Composition | 4 NC |
[Ui] Rated Insulation Voltage |
|
[Ie] Rated Operational Current |
|
Auxiliary Contacts Operation | instantaneous |
Device Short Name | LADN |
Warranty | 18 months |
Non-Overlap Time |
|
Permissible Short-Time Rating |
|
Minimum Switching Current | 5 mA |
Height | 48 mm |
Protection Type | gG fuse 10 A |
Insulation Resistance | > 10 MOhm |
Irms Rated Making Capacity |
|
Net Weight | 0.05 kg |
Connections - Terminals |
|
Minimum Switching Voltage | 17 V |
Tightening Torque |
|
Mechanical Durability | 30 Mcycles |
Color | dark grey |
Width | 44 mm |
Depth | 42 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110807EN_V2 |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | -5-60 °C |
Ip Degree Of Protection | IP20 conforming to IEC 60529 |
Ambient Air Temperature For Storage | -60-80 °C |
Environmental Characteristic | normal environment |
Protective Treatment | TH IEC 60068 |
Operating Altitude | 9842.52 ft (3000 m) |
