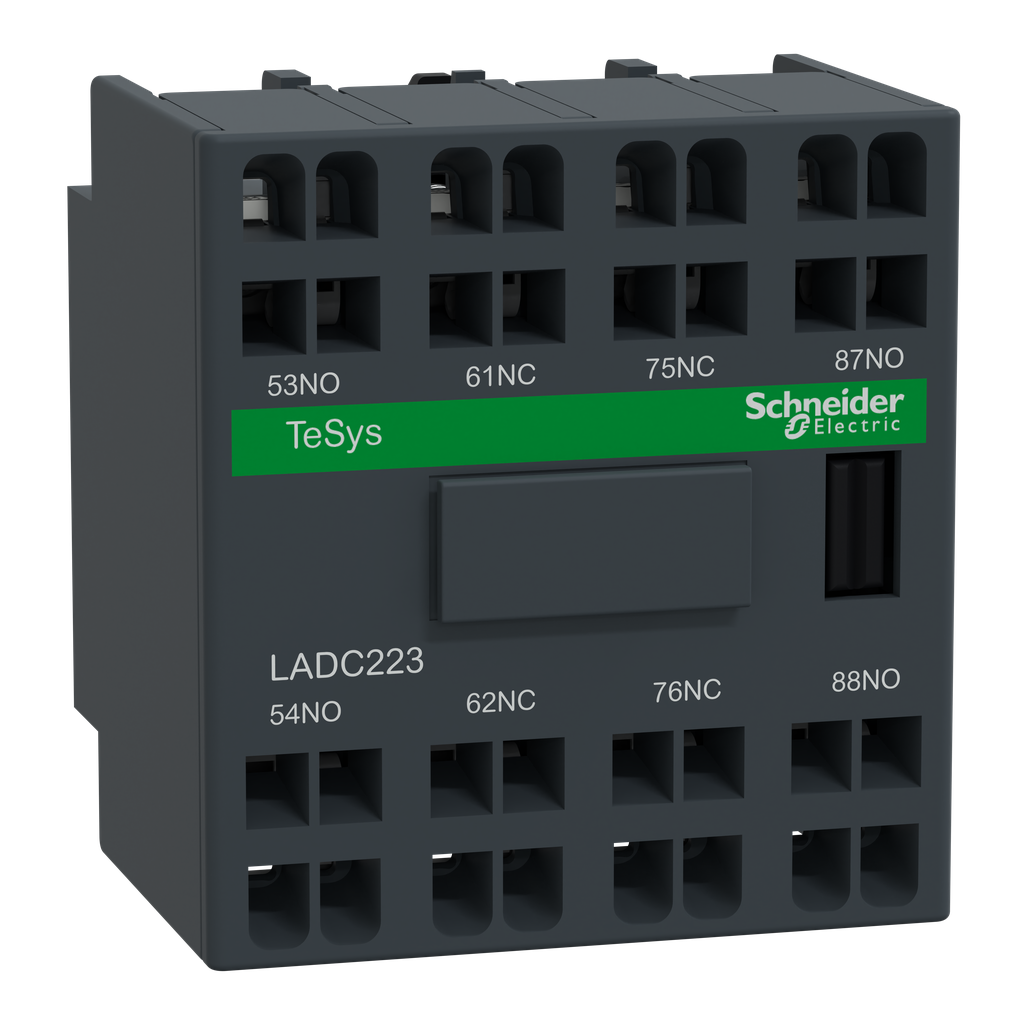

LADC223 - Auxiliary contact block, TeSys Deca, 2NO 2NC (inc. 1NO 1NC make before break), front, spring terminals

LADC223

Auxiliary contact block, TeSys Deca, 2NO + 2NC (inc. 1NO + 1NC make before break), front, spring terminals

LADC223 is a Schneider Electric instantaneous auxiliary contact block for TeSys D contactors. It provides 2NO+2NC contacts (with 1NO+1NC make before break) rated up to 10A 690V AC, connection by spring terminals. Easy clip-on mounting on front, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC) and Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, EAC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Certifications	CB UL CSA EAC CE UKCA
[Ith] Conventional Free Air Thermal Current	10 A 60 °C
Standards	EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5
[Ue] Rated Operational Voltage	690 V AC 25...400 Hz
Range Compatibility	TeSys D CAD TeSys D LC1D TeSys Deca CAD TeSys Deca LC1D
Product Or Component Type	auxiliary contact block
Product Name	TeSys Deca
Range	TeSys TeSys Deca
Mounting Location	front
Pole Contact Composition	2 NO + 2 NC
[Ui] Rated Insulation Voltage	690 V IEC 60947-5-1 600 V UL 600 V CSA
[Ie] Rated Operational Current	6 A120 V AC-15 1.04 A690 V AC-15 0.55 A125 V DC-13 0.1 A600 V DC-13
Auxiliary Contacts Operation	make before break 1 NO + 1 NC instantaneous 1 NO + 1 NC
Warranty	18 months
Non-Overlap Time	1.5 ms on de-energisation no overlap between NC and NO contact 1.5 ms on energisation no overlap between NC and NO contact
Permissible Short-Time Rating	100 A 1 s 120 A 500 ms 140 A 100 ms
Minimum Switching Current	5 mA
Height	48 mm
Protection Type	gG fuse 10 A
Overlap Time	1.5 ms
Insulation Resistance	> 10 MOhm
Irms Rated Making Capacity	140 A AC IEC 60947-5-1 250 A DC IEC 60947-5-1
Net Weight	0.05 kg
Connections - Terminals	spring terminals 2 2.5-2.5 mm²flexible without cable end spring terminals 2 2.5-2.5 mm²rigid
Minimum Switching Voltage	17 V
Mechanical Durability	30 Mcycles
Width	44 mm
Depth	42 mm
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110807EN_V2
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive	Compliant
Ambient Air Temperature For Operation	-5-60 °C
Ip Degree Of Protection	IP20 conforming to IEC 60529
Ambient Air Temperature For Storage	-60-80 °C
Environmental Characteristic	normal environment
Protective Treatment	TH IEC 60068
Operating Altitude	9842.52 ft (3000 m)
