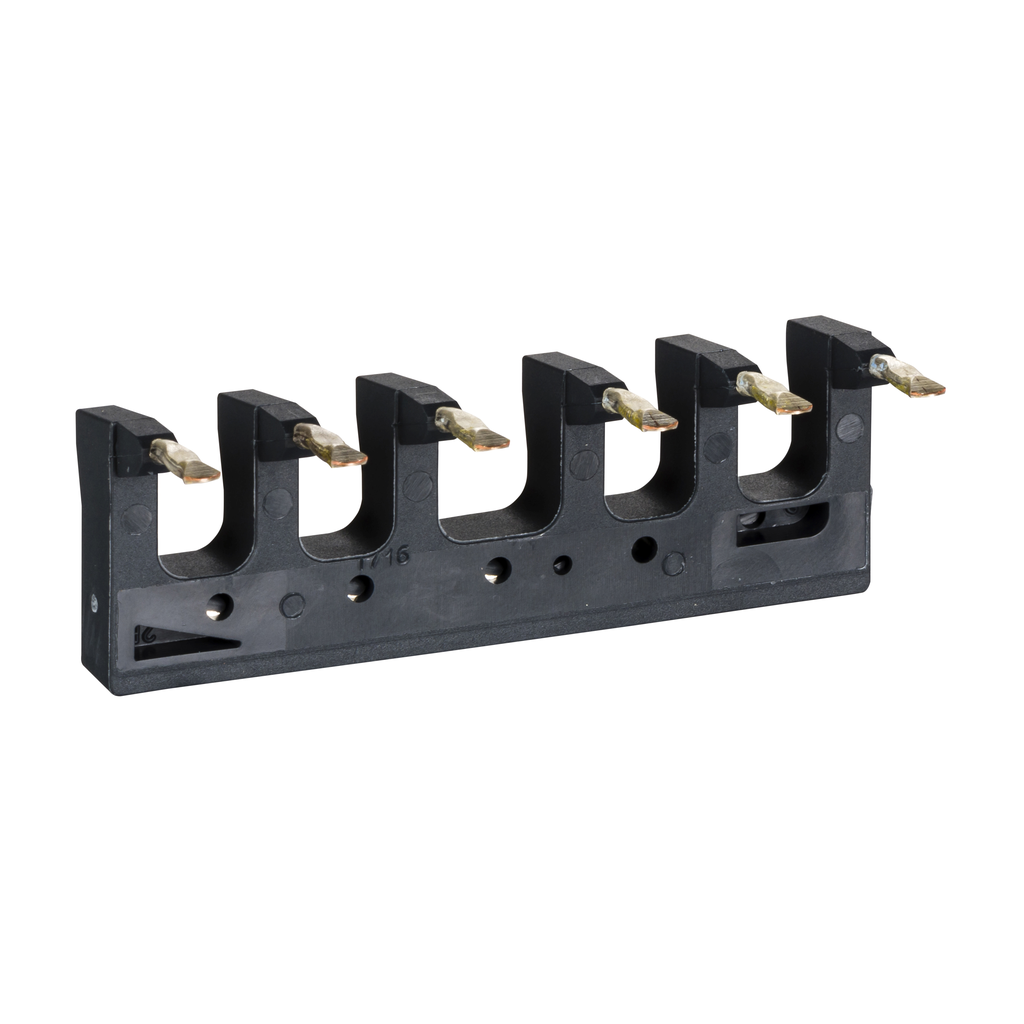

LAD9V12
Set of power connections, parallel busbar, for 3P reversing contactors assembly, LC1D09-D38 spring terminals
TeSys D power connection module for 3-pole contactors LC1D093-D323 (with spring terminals). For assembling contactors in reversing motor starters. It provides the parallel connection of 2 contactors on line side. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | TeSys Deca |
|---|---|
| Range Compatibility |
|
| Product Or Component Type | set of connections |
| Range |
|
| Poles Description | 3P |
| Electrical Circuit Type | reversing contactor |
| Product Compatibility |
|
| Device Short Name | LAD9 |
| Warranty | 18 months |
| Connections - Terminals | spring terminals |
| Mounting Location | upstream |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111213EN_V1 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
Documents
- Spec Sheet
- Industrial Automation and Control Product Lines Brochure - 998-20256927_2019_Line_Card_GM (pdf)
- TeSys Refresh Informational Guide - Brochure - 998-20803955_GMA-US (pdf)
- Square D Model 6 Intelligent Motor Control Centers Brochure - 8998BR0001 (pdf)
- LA9 V974 Kit to build a complete reversing contactor - 1511431_01A55 (pdf)
- LAD3PVGV - LAD3PVGV10 Kit for low speed / high speed starters 9 to 32 A with spring terminals - 1511494_01A55 (pdf)
- 2 x LC1D..3, LC2D..3, LAD9V.. Contactors and reversing contactors 9 to 32 A with spring terminals and accessories - 164339301A50_07 (pdf)
