LAD9SD3
Kit for assembling star delta starters, for 3 x contactors LC1D40A-D80A, with time delay block

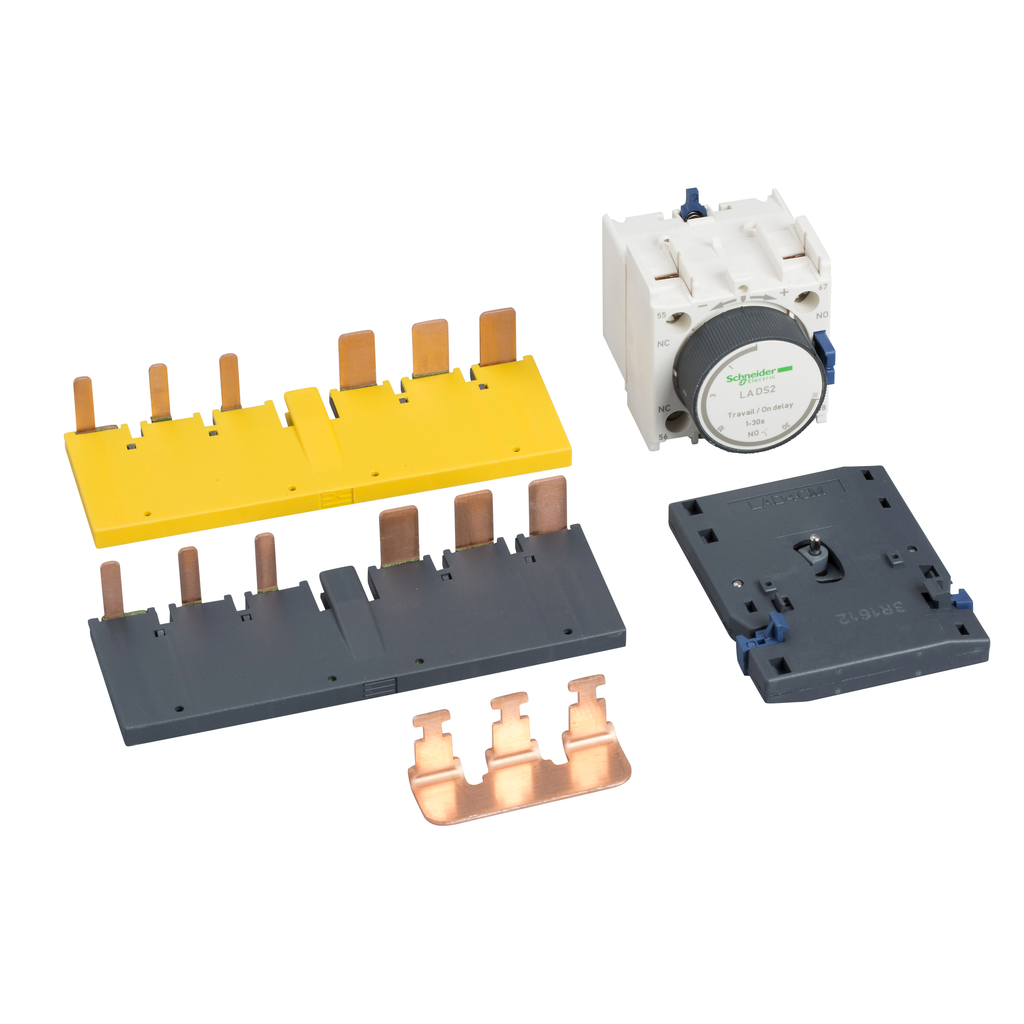

TeSys D mounting kit for star-delta starter assembly, for 3-pole contactors LC1D40A-D80A. For assembling 3 identical contactors horizontally mounted, connection by screw clamp Everlink terminals. It contains a mechanical interlock LAD4CM, power circuit connections, a time delay contact block LADS2 (1-30s). It conforms to RoHS/REACh regulation.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | TeSys Deca |
|---|---|
| Range Compatibility | TeSys (TeSys Deca) |
| Product Or Component Type | stater assembly |
| Range |
|
| Poles Description | 3P |
| Product Compatibility |
|
| Device Short Name | LAD9 |
| Warranty | 18 months |
| Net Weight | 0.38 kg |
| Kit Composition |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1503009EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI1503009EN |
| Eu Rohs Directive | Compliant |
Documents
- Spec Sheet
- Square D Model 6 Intelligent Motor Control Centers Brochure - 8998BR0001 (pdf)
- Industrial Automation and Control Product Lines Brochure - 998-20256927_2019_Line_Card_GM (pdf)
- TeSys Refresh Informational Guide - Brochure - 998-20803955_GMA-US (pdf)
- LAD9SD3 Star-Delta accessory for LC1D..A Everlink 3-pole contactors 40 to 65 A AC-1 - AAV74604 (pdf)
