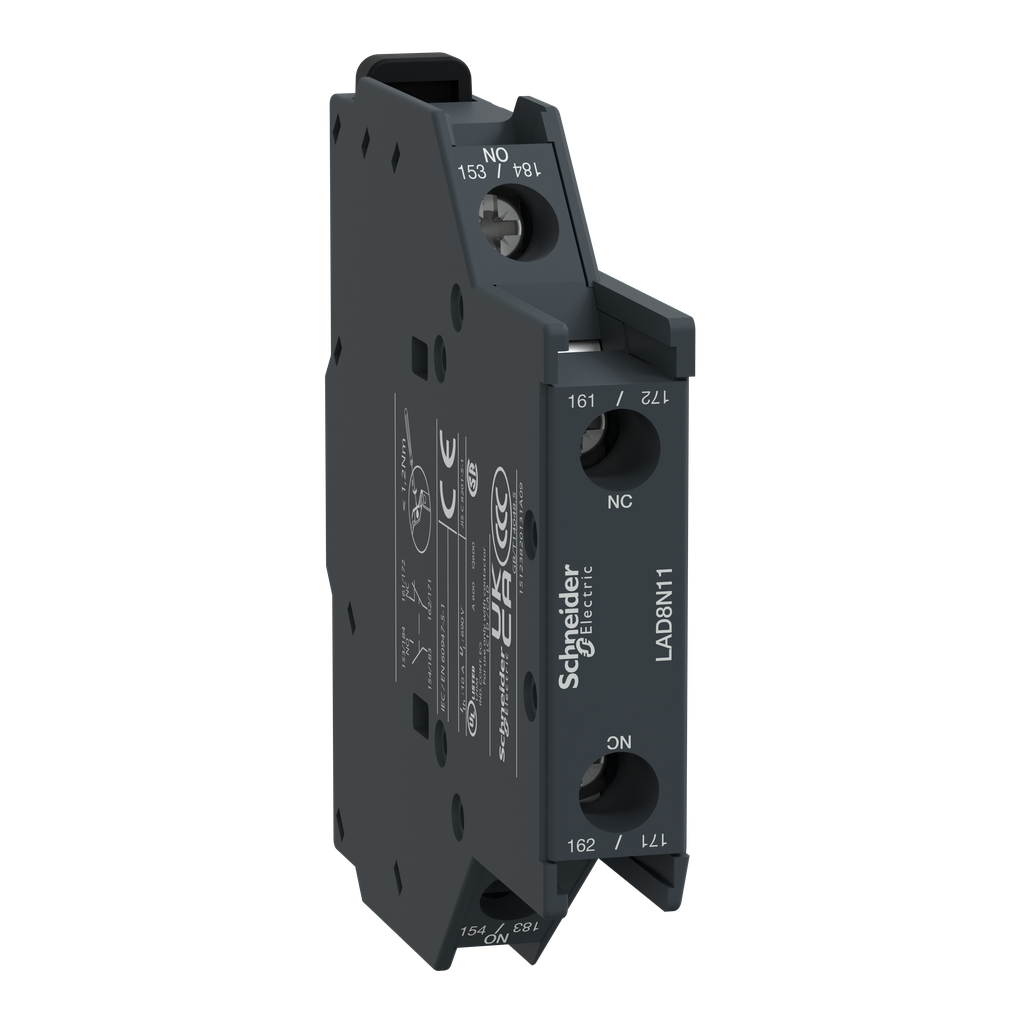

TeSys D contactors have a variety of auxiliary contacts. This auxiliary contact mounts on the side of contactors with rating from 9 amp to 150 amp. The one NO and one NC contacts can be used in the control circuit. TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for any type of application. TeSys D contactors offer quick simple setup, while maintaining a compact size. Contactors have both horsepower and Kw motor rating for international acceptance. An extennsive line of accessories makes it easy to meet the requirements of most applications. These contactors have UL, CSA, GOST, RINA, BV, CCC, DNV, GL, LROS certifications.
Brand: Schneider Electric
Add to Quote CatalogueProduct Certifications |
|
---|---|
[Ith] Conventional Free Air Thermal Current | 10 A 60 °C |
Standards |
|
[Ue] Rated Operational Voltage | 690 V AC 25...400 Hz |
Range Compatibility |
|
Product Or Component Type | auxiliary contact block |
Product Name | TeSys Deca |
Range | TeSys |
Mounting Location | side |
Pole Contact Composition | 1 NO + 1 NC |
[Ui] Rated Insulation Voltage |
|
[Ie] Rated Operational Current |
|
Auxiliary Contacts Operation | instantaneous |
Warranty | 18 months |
Non-Overlap Time |
|
Permissible Short-Time Rating |
|
Minimum Switching Current | 5 mA |
Height | 76 mm |
Protection Type | gG fuse 10 A |
Insulation Resistance | > 10 MOhm |
Irms Rated Making Capacity |
|
Connections - Terminals |
|
Minimum Switching Voltage | 17 V |
Tightening Torque |
|
Mechanical Durability | 30 Mcycles |
Width | 12.5 mm |
Depth | 76 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110807EN_V2 |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | -5-60 °C |
Ip Degree Of Protection | IP20 conforming to IEC 60529 |
Ambient Air Temperature For Storage | -60-80 °C |
Environmental Characteristic | normal environment |
Protective Treatment | TH IEC 60068 |
Operating Altitude | 9842.52 ft (3000 m) |
