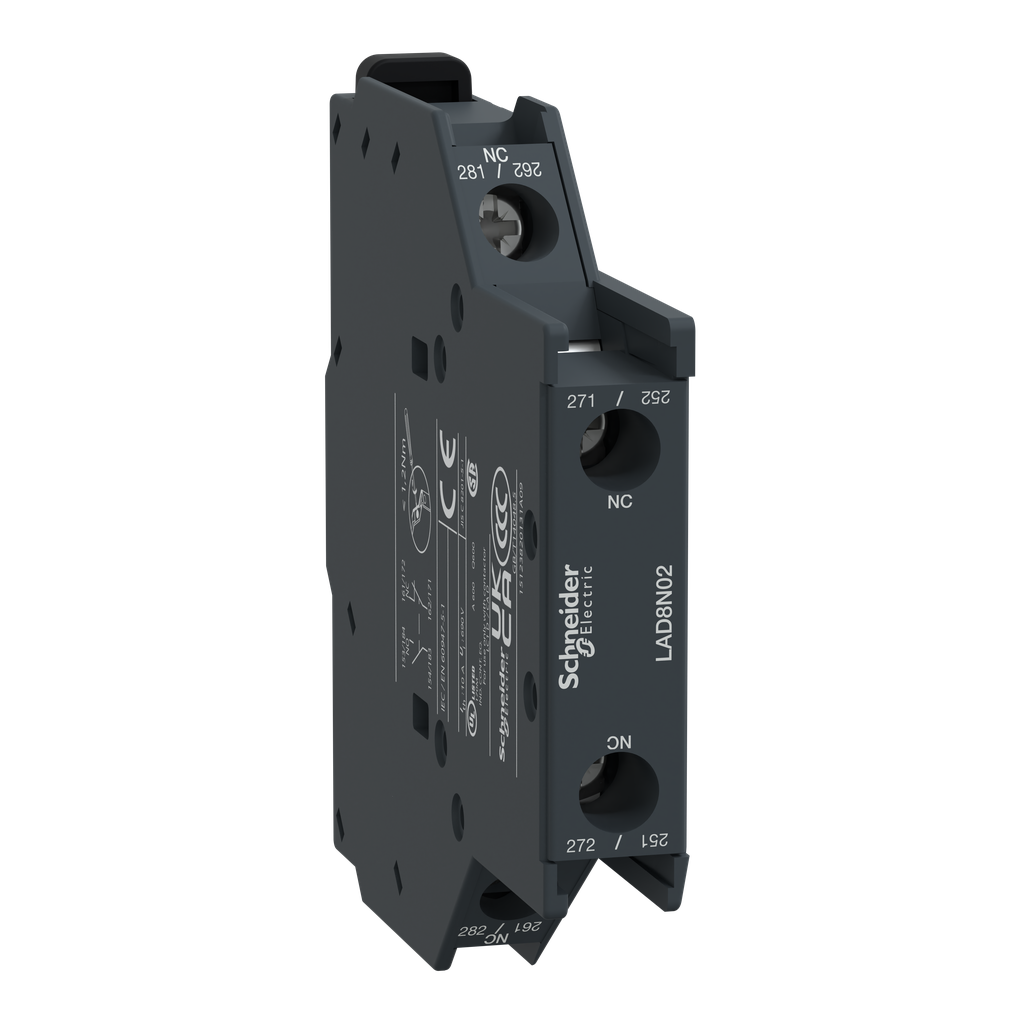

TeSys Deca instantaneous auxiliary contact block, for LC.D contactors and CAD control relays with AC coils only. It provides 2NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by screw clamp terminals. Clip-on side mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueProduct Certifications |
|
---|---|
[Ith] Conventional Free Air Thermal Current | 10 A 60 °C |
Standards |
|
[Ue] Rated Operational Voltage | 690 V AC 25...400 Hz |
Range Compatibility |
|
Product Or Component Type | auxiliary contact block |
Product Name | TeSys Deca |
Range | TeSys |
Mounting Location | side |
Pole Contact Composition | 2 NC |
[Ui] Rated Insulation Voltage |
|
[Ie] Rated Operational Current |
|
Product Compatibility | LC1D80...D95 |
Auxiliary Contacts Operation | instantaneous |
Warranty | 18 months |
Non-Overlap Time |
|
Permissible Short-Time Rating |
|
Minimum Switching Current | 5 mA |
Height | 76 mm |
Protection Type | gG fuse 10 A |
Insulation Resistance | > 10 MOhm |
Irms Rated Making Capacity |
|
Connections - Terminals |
|
Minimum Switching Voltage | 17 V |
Tightening Torque |
|
Mechanical Durability | 30 Mcycles |
Width | 12.5 mm |
Depth | 76 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP110807EN_V2 |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | -5-60 °C |
Ip Degree Of Protection | IP20 conforming to IEC 60529 |
Ambient Air Temperature For Storage | -60-80 °C |
Environmental Characteristic | normal environment |
Protective Treatment | TH IEC 60068 |
Operating Altitude | 9842.52 ft (3000 m) |
