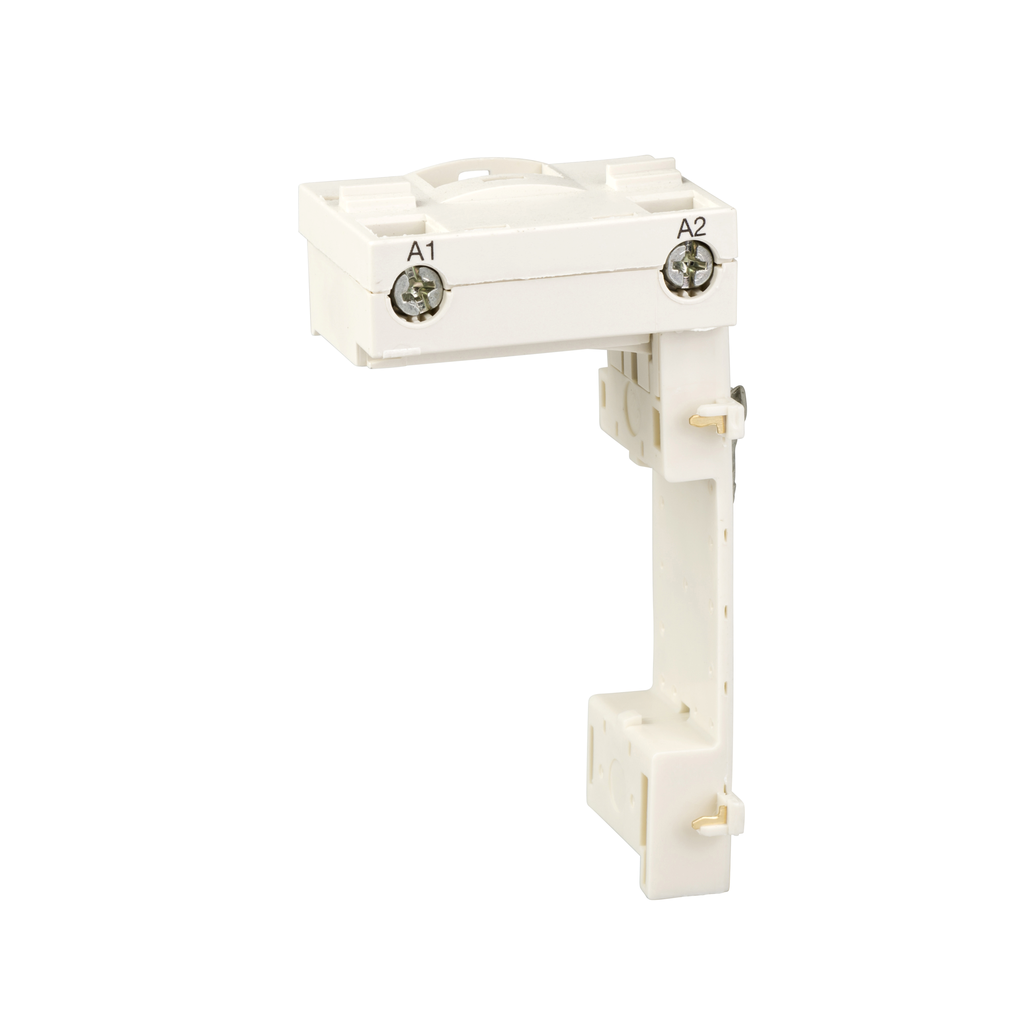

LAD4BB
Contactor cabling accessory IEC
TeSys D wiring adapter, for connection to the coil circuit of 3-pole contactors LC1D09-D38. It allows connection to the coil circuit from the top of the contactor, for adapting existing wiring to a new product. Also used for mounting of an electronic timer module LA4DT (to be ordered separately). Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Accessory / Separate Part Category | connection accessory |
|---|---|
| Product Or Component Type | retrofit coil without coil suppression |
| Range | TeSys |
| Product Compatibility | LC1D09...D38 |
| Device Short Name | LAD |
| Warranty | 18 months |
| Net Weight | 0.019 kg |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111213EN_V1 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
