LA9GTS331

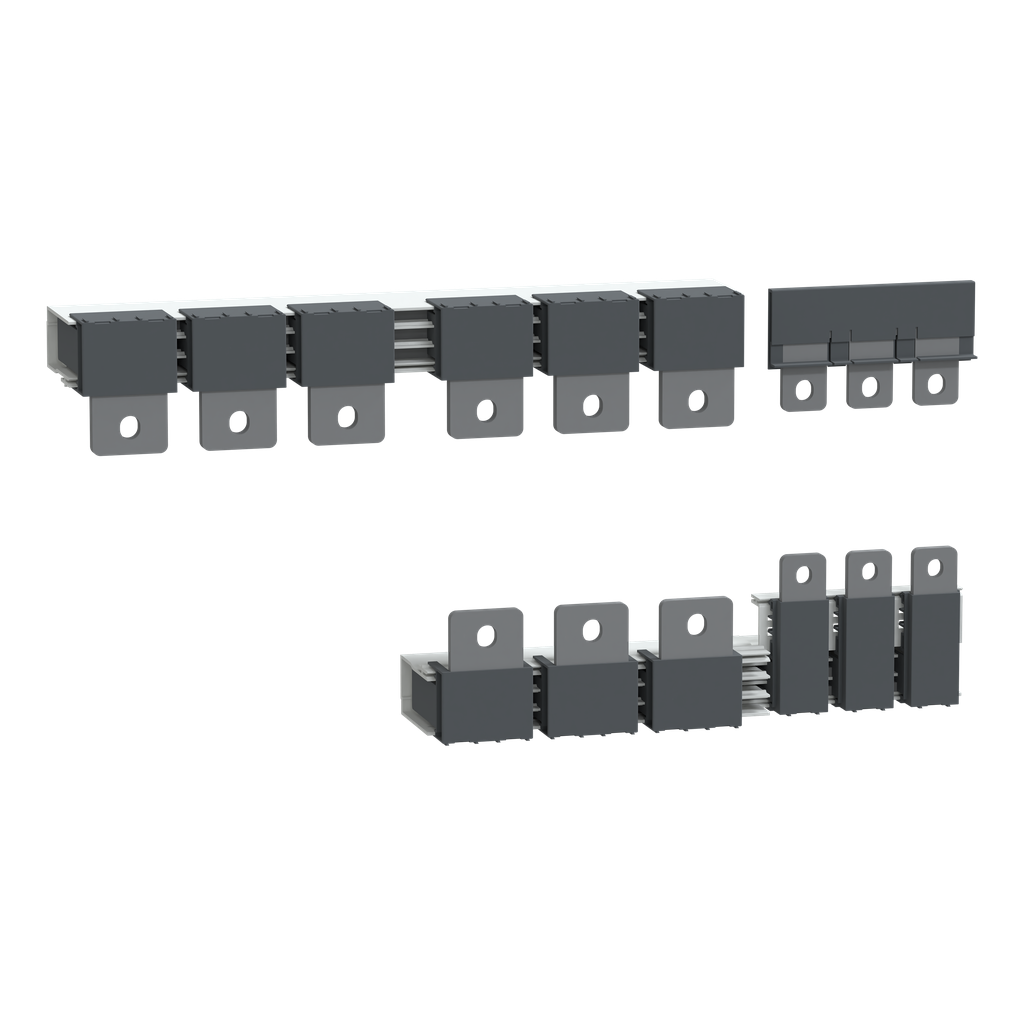

Star-Delta connection bar, for TeSys Giga contactor LC1G630-800 (Line & Delta)/LC1G265-500 (Star) with cable memory kit
These accessories are star delta bars with cable memory for TeSys Giga contactor. To be used by Line-Delta bars for TeSys Giga 630-800 contactor and star bars for TeSys Giga 265-500 contactor. They are sold by set of 1 part. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | connection accessories |
|---|---|
| Range | TeSys |
| Device Short Name | LA9G |
| Height | 648.5 mm |
| Net Weight | 11.45 kg |
| Poles Description | 3P |
| Quantity Per Set | set of 1 |
| Electrical Circuit Type | star-delta |
| Width | 176 mm |
| Depth | 88 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2105013 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2105013 |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-60 °C |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Operating Altitude |
|
