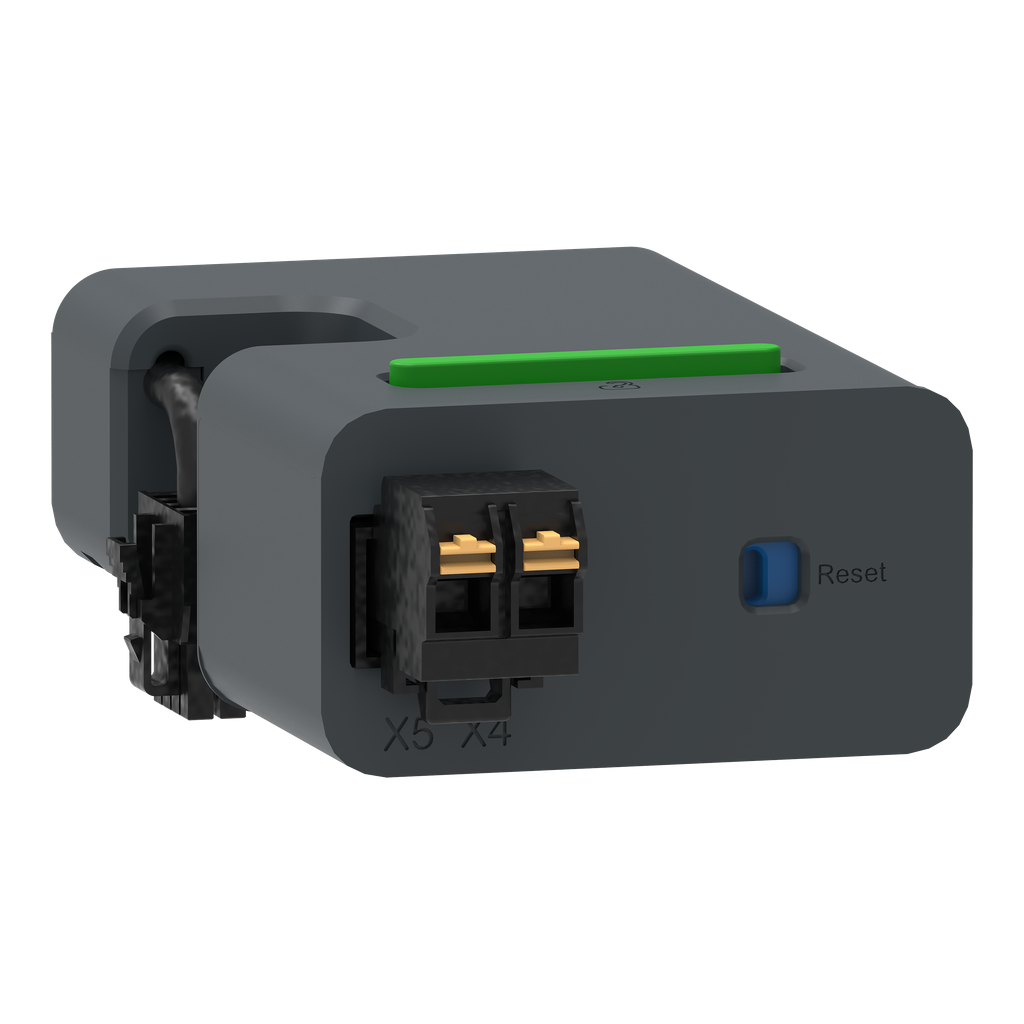

LA9GRD01
Remote Wear Diagnostic Module (NC), for TeSys Giga contactor LC1G
These accessories are remote wear diagnostic module for TeSys Giga contactor. It outputs 1NC contact for continuous remote monitoring of contact wear by a contactor opening-speed algorithm. It could be better for optimizes maintenance by allowing you to replace contacts only when necessary. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | function module |
|---|---|
| Range | TeSys |
| Device Short Name | LA9G |
| Height | 91.5 mm |
| [Ith] Conventional Free Air Thermal Current | 5 A |
| Auxiliary Contact Composition | 1 NC |
| Connection Pitch | 5.08 mm |
| Net Weight | 0.1 kg |
| Mounting Location | top |
| Function Available | remote alarm |
| Quantity Per Set | set of 1 |
| Width | 30 mm |
| Depth | 50 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2105013 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2105013 |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Ambient Air Temperature For Operation | -25-60 °C |
| Standards |
|
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Operating Altitude |
|
