LA9G3751

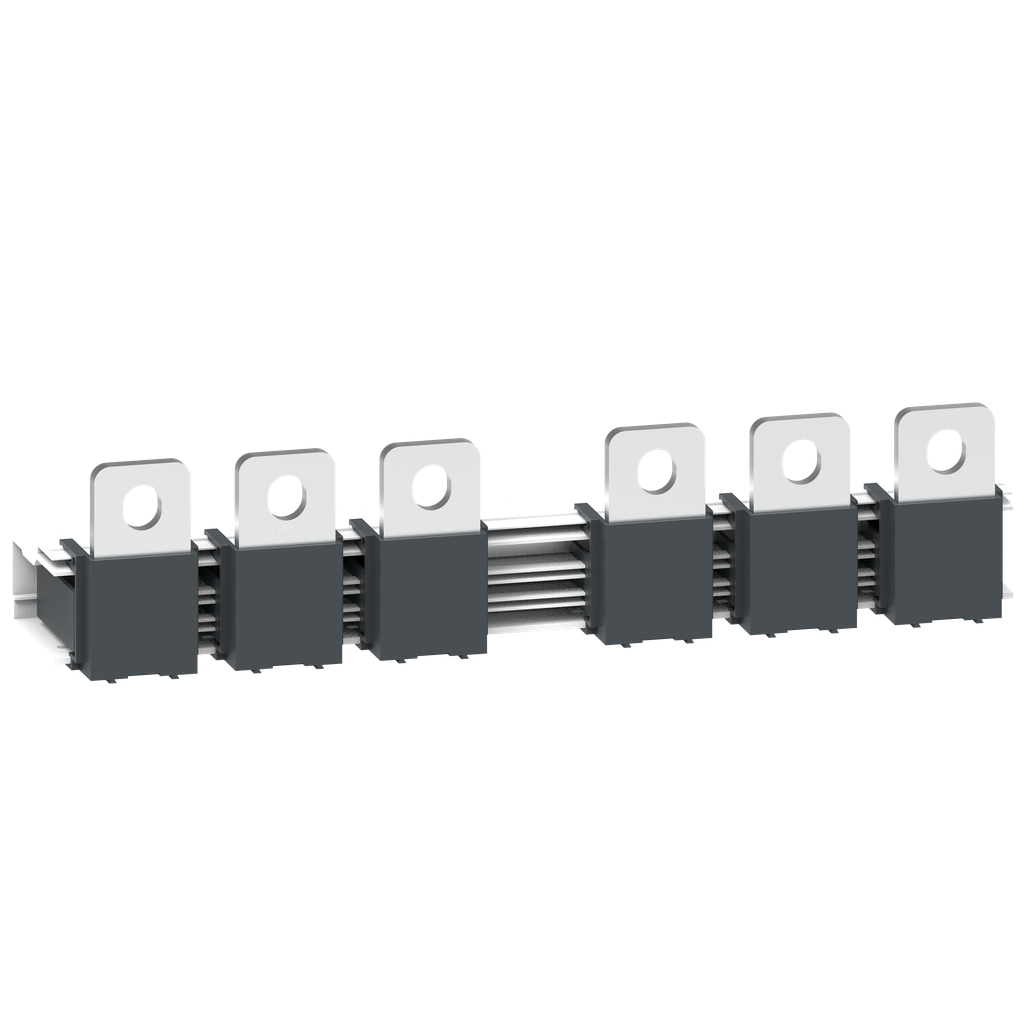

Change-over connection bar, for TeSys Giga contactor LC1G265-500, 3 pole
These accessories are change-over bars for TeSys Giga 265-500 contactor. It is used to 3 Poles electrical circuit. These terminal extensions can be attached to the standard terminals. The rated current is up to 500 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Accessory / Separate Part Category | connection accessory |
|---|---|
| Product Or Component Type | set of connections |
| Range | TeSys |
| Quantity Per Set | set of 1 |
| Electrical Circuit Type | changeover |
| Device Short Name | LA9G |
| Height | 65 mm |
| Range Compatibility | TeSys Giga |
| Net Weight | 0.8 kg |
| Poles Description | 3P |
| Width | 74 mm |
| Depth | 298 mm |
| Product Compatibility |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2105013 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2105013 |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Ambient Air Temperature For Operation | -40-60 °C |
| Standards |
|
| Product Certifications |
|
| Ambient Air Temperature For Storage | -60-80 °C |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Operating Altitude |
|
