LA9G3707

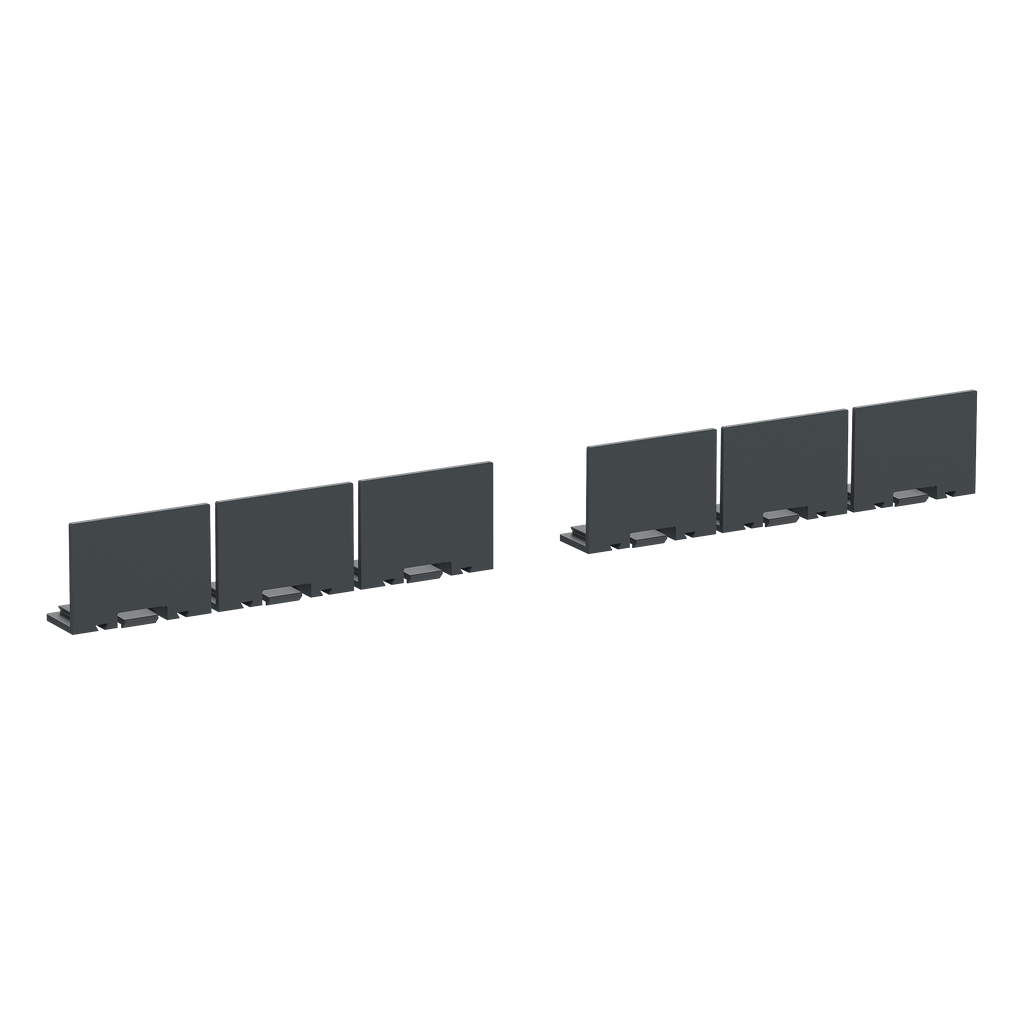

Lug cover,TeSys Giga contactor,for LC1G115-800,3 Pole,coupling assembly,IP20
These accessories are lug cover for TeSys Giga 115-800 contactor. It is used to 3 Poles electrical circuit. It provides IP20 protection conforming to IEC 60529. It could be assembled by coupling. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Or Component Type | lug shield |
|---|---|
| Poles Description | 3P |
| Quantity Per Set | set of 6 |
| Height | 40 mm |
| Net Weight | 0.055 kg |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Range Compatibility | TeSys G |
| Width | 30 mm |
| Depth | 35 mm |
| Product Compatibility |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2105013 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2105013 |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Ambient Air Temperature For Operation | -25-60 °C |
| Standards |
|
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Operating Altitude |
|
