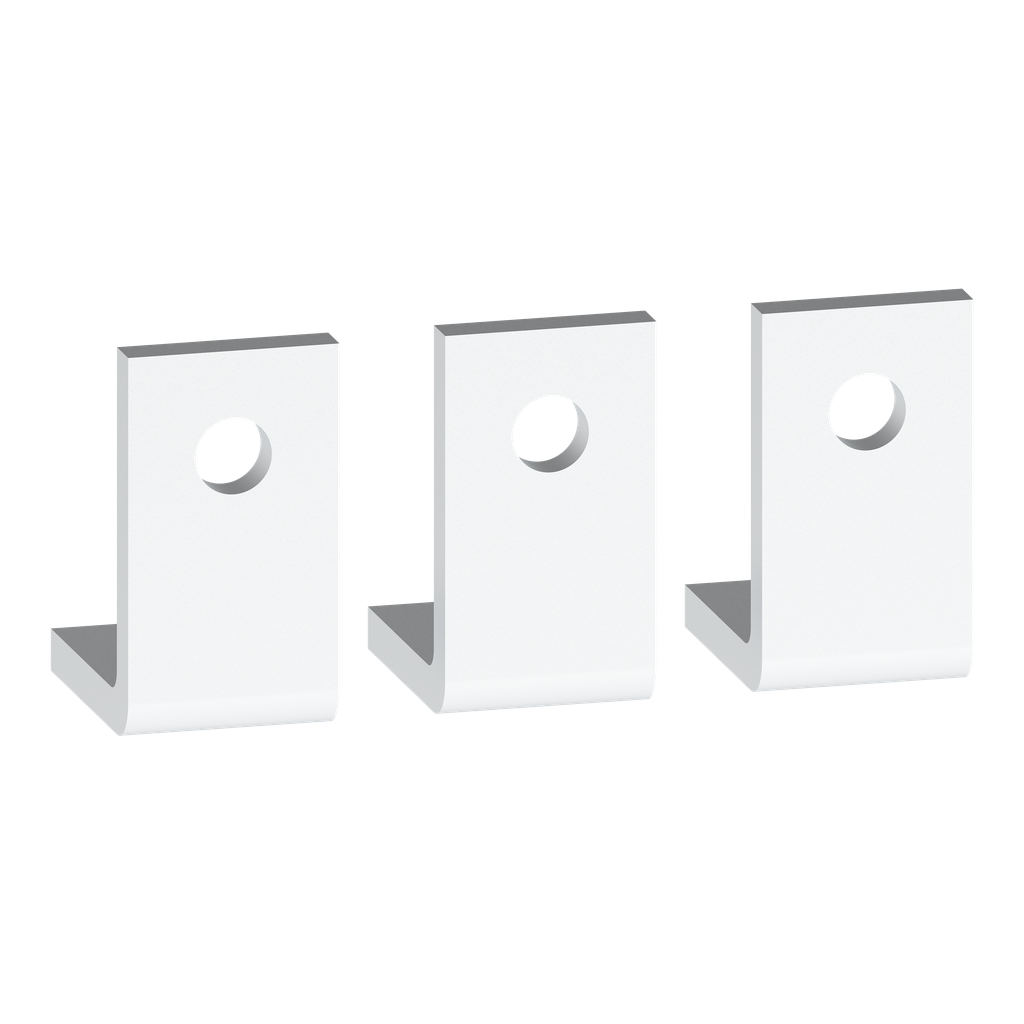

These accessories are right angled rear terminal extension bars for TeSys Giga 265-500 contactor. It is used to 3 Poles electrical circuit. These terminal extensions can be attached to the standard terminals. The rated current is up to 500 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueAccessory / Separate Part Category | extension accessories |
---|---|
Product Or Component Type | terminal extension |
Range | TeSys |
Device Short Name | LA9G |
Height | 45 mm |
Range Compatibility | TeSys LC1G |
Net Weight | 0.65 kg |
Mounting Location | back side |
Connector Type | short rear |
Quantity Per Set | set of 3 |
Width | 60 mm |
Depth | 35 mm |
Product Compatibility |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2105013 |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI2105013 |
Eu Rohs Directive | Compliant |
Halogen Content Performance | Halogen free plastic parts product |
Ambient Air Temperature For Operation | -40-60 °C |
Standards |
|
Pollution Degree | 3 IEC 60947-1 |
Ambient Air Temperature For Storage | -60-80 °C |
Operating Altitude |
|
