LA9G3652

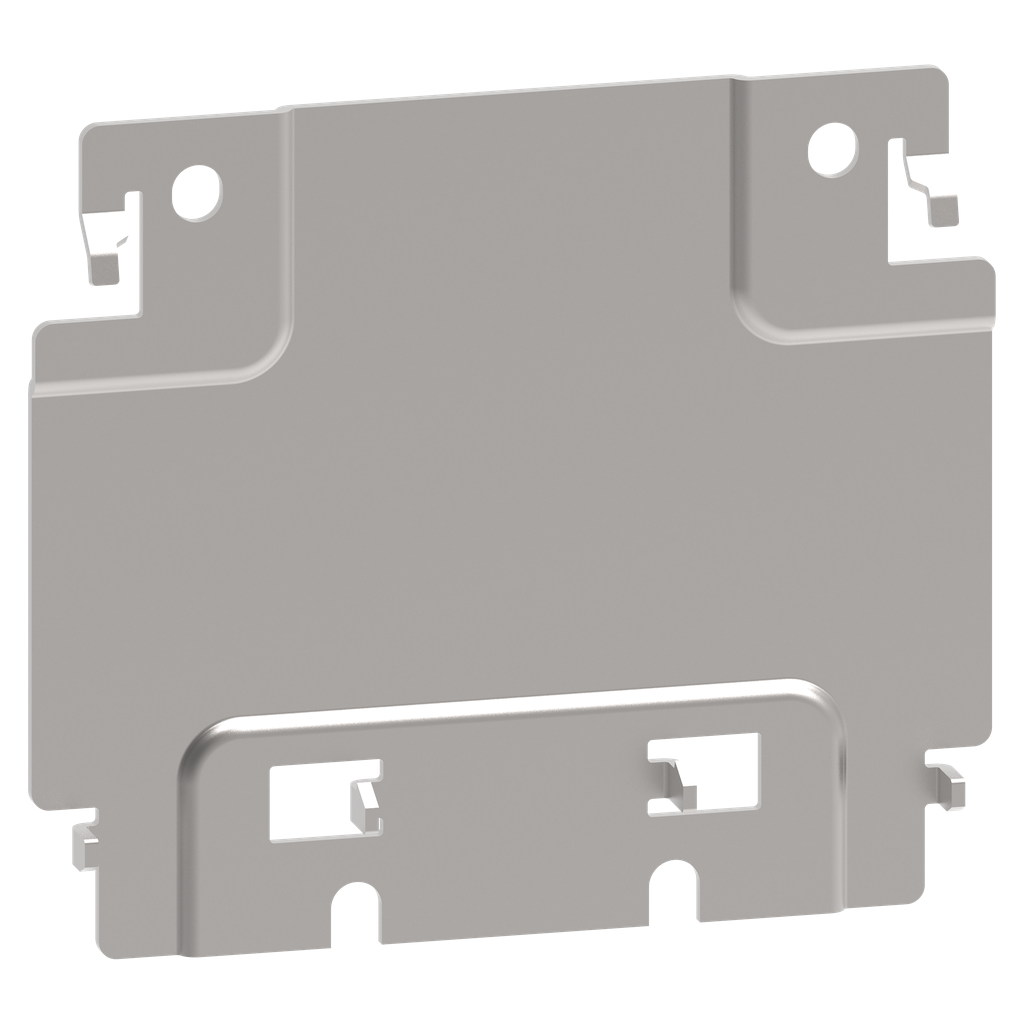

Mounting base, for TeSys Giga electronic overload relay LR9G500, independent mounting below contactor LC1G630-800
These accessories are mounting base for TeSys LR9G500 align with LC1G400-500. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility | TeSys G LC1G contactor |
|---|---|
| Accessory / Separate Part Category | installation accessories |
| Product Or Component Type | mounting base |
| Range | TeSys |
| Quantity Per Set | set of 1 |
| Product Compatibility |
|
| Device Short Name | LA9G |
| Height | 15 mm |
| Thickness | 8 mm |
| Net Weight | 0.5 kg |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| [Ie] Rated Operational Current | 500 A |
| Width | 95 mm |
| Depth | 145 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2105014 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2105014 |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free plastic parts product |
| Ambient Air Temperature For Operation | -40-60 °C |
| Standards |
|
| Pollution Degree | 3 IEC 60947-1 |
| Ambient Air Temperature For Storage | -60-80 °C |
| Operating Altitude |
|
