LA9D6569

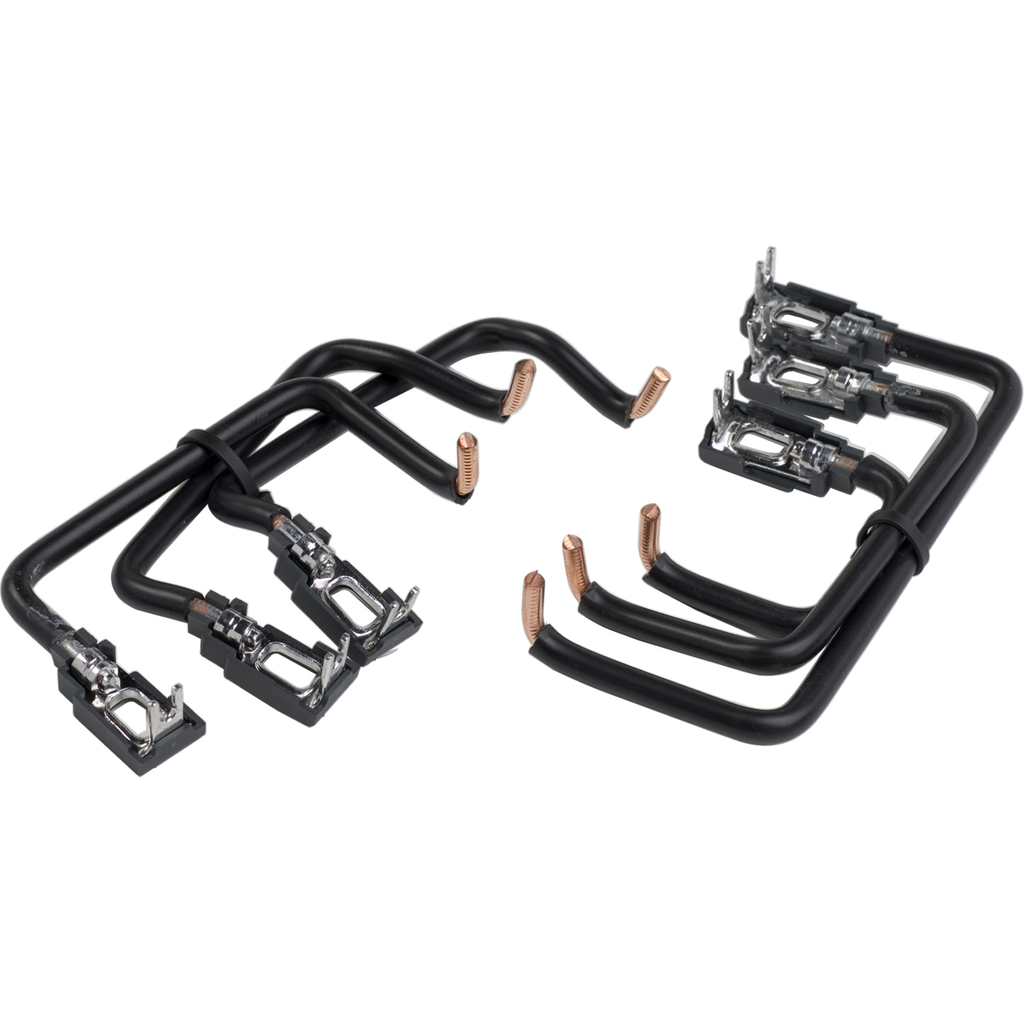

Power connector, TeSys Deca
TeSys D set of power connections, for 3-pole contactors LC1D40-D65. To be used for assembling contactors in reversing motor starters. It includes a set of parallel bars for the line side, a set of reverser bars for the load side. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Accessory / Separate Part Category | connection accessory |
|---|---|
| Product Or Component Type | terminal block |
| Range | TeSys |
| Product Compatibility | LC1D40...65 |
| Device Short Name | LA9D |
| Warranty | 18 months |
| Net Weight | 0.13 kg |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP080204EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI100414 |
| Eu Rohs Directive | Compliant |
Documents
- Spec Sheet
- Industrial Automation and Control Product Lines Brochure - 998-20256927_2019_Line_Card_GM (pdf)
- TeSys Refresh Informational Guide - Brochure - 998-20803955_GMA-US (pdf)
- Square D Model 6 Intelligent Motor Control Centers Brochure - 8998BR0001 (pdf)
- LA9 D..69 / LA9 D..70 Connection kit for 3-pole reversing contactors up to 75 kW - 0444820_01A55_06 (pdf)
