LA9D09981

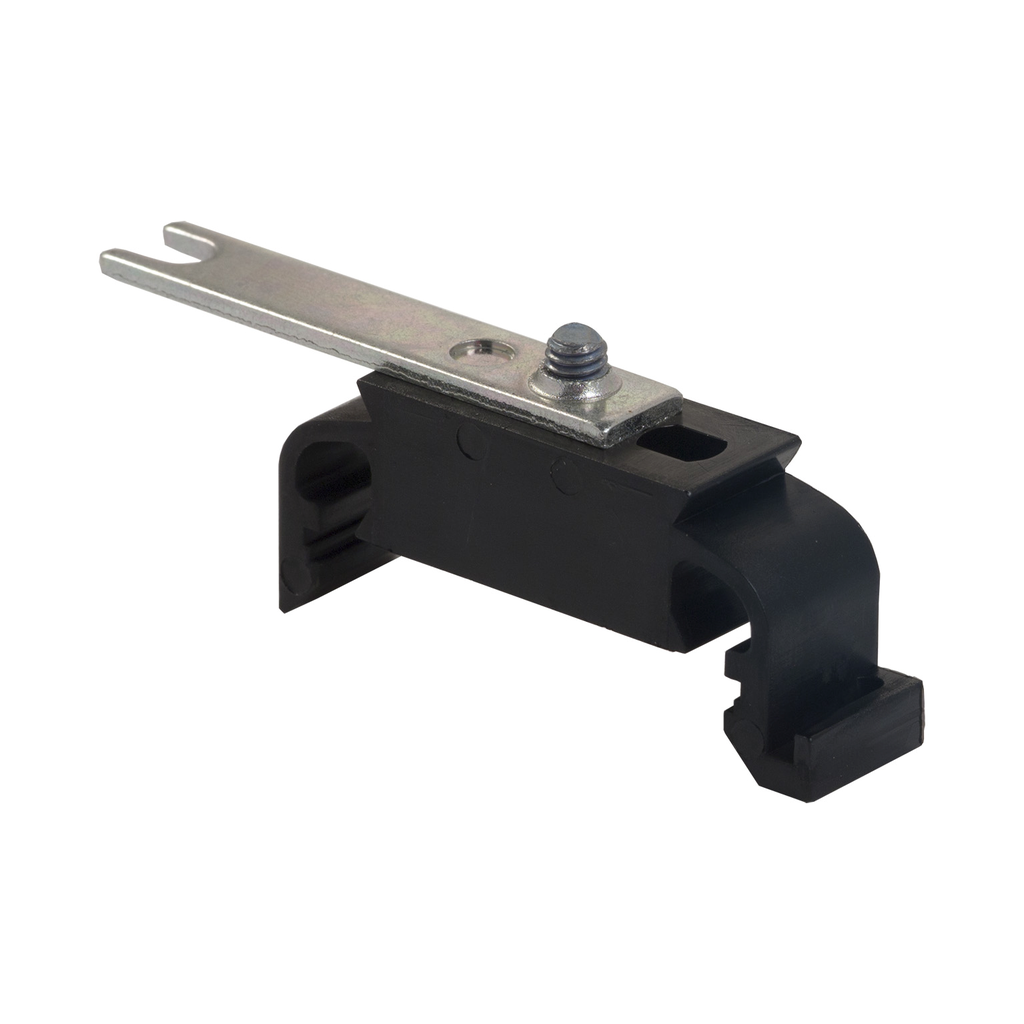

suppressor bracket, for TeSys F
TeSys F mounting bracket, for suppressor blocks LA4FRC, LA4FV, LA4FD, LA4FT (all models) and LA9F980. It allows the mounting of a suppressor block on a 35mm DIN rail or a panel. It conforms to RoHS/REACh regulation.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | TeSys F |
|---|---|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | suppressor bracket |
| Product Compatibility | LA4F |
| Device Short Name | LA9D |
| Warranty | 18 months |
| Net Weight | 0.01 kg |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP060301EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI100405 |
| Eu Rohs Directive | Compliant |
