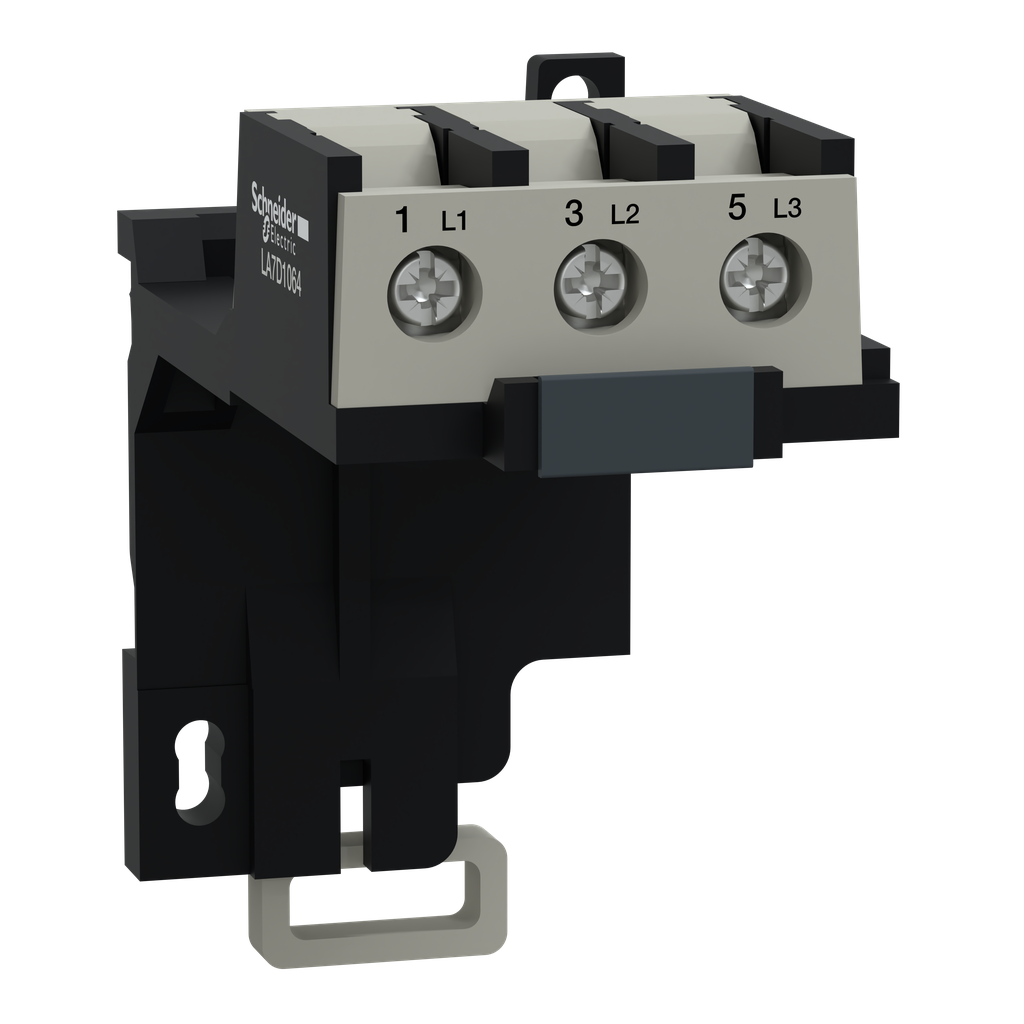

LA7D1064
Adapter terminal block, TeSys Deca, for separate mounting of LR2D1… LR3D1…
Specifications
| Accessory / Separate Part Category | connection accessory |
|---|---|
| Product Or Component Type | terminal block |
| Range | TeSys |
| Quantity Per Set | set of 1 |
| Product Compatibility |
|
| Device Short Name | LA7D |
| Warranty | 18 months |
| Connections - Terminals | screw terminals |
| Height | 78 mm |
| Net Weight | 0.10 kg |
| Width | 45 mm |
| Depth | 86 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110101EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI1101001 |
| Eu Rohs Directive | Compliant |
