LA6DK20M
CONTACTOR LATCH BLOCK IEC

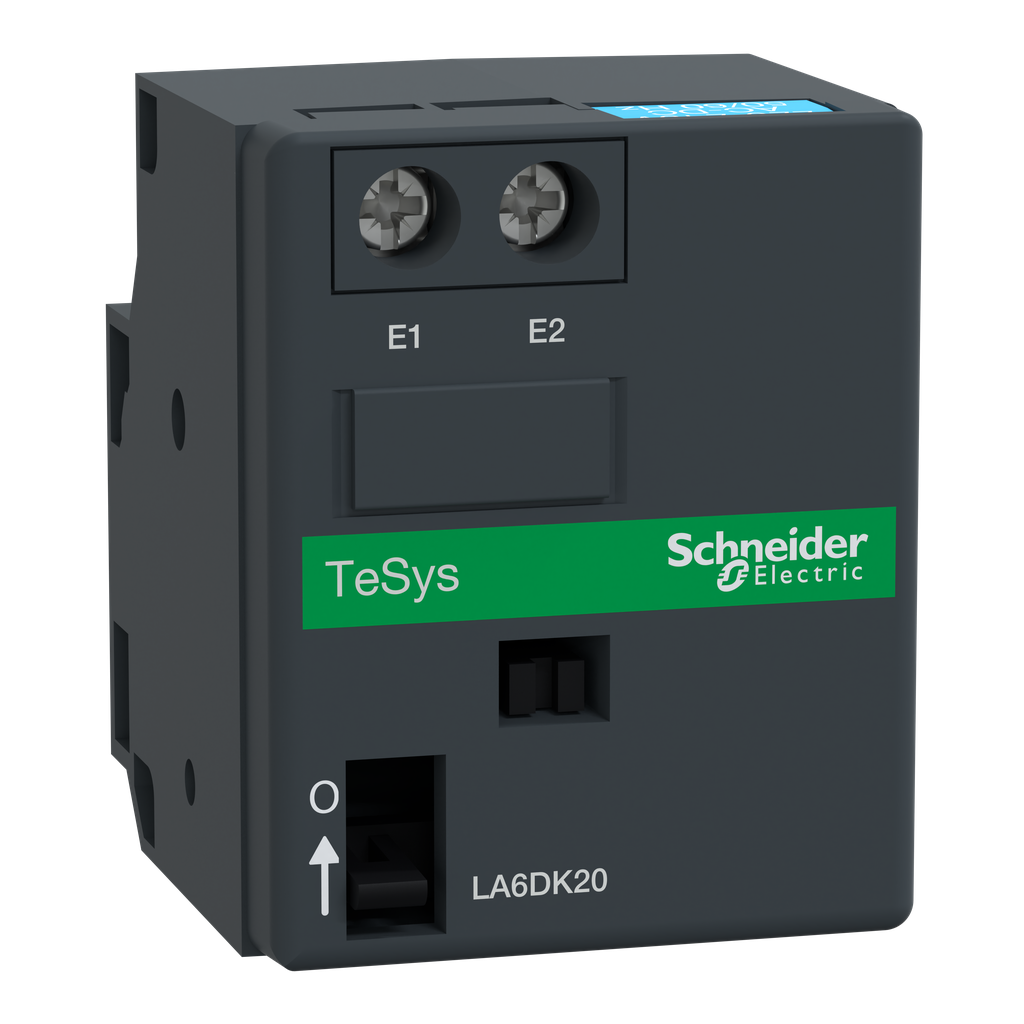

TeSys Deca mechanical latch block, for contactors LC1D80-D150 (3P/4P) and LP1D40-80 (4P). Electrical latching and unlatching is performed applying a 220-240V control voltage pulse (> 100ms in AC, 250ms in DC). Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. For applications with high operating rates until 1200 cycles/hour. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Uc] Control Circuit Voltage |
|
|---|---|
| Product Compatibility |
|
| Product Or Component Type | mechanical latch block |
| Range | TeSys |
| Warranty | 18 months |
| Power Required In W | 30 W DC |
| Tripping Control |
|
| Net Weight | 0.09 kg |
| Mounting Location | front side |
| [Ui] Rated Insulation Voltage | 690 V IEC 60947-5-1 |
| Maximum Operating Rate | 1200 cyc/h |
| Mechanical Durability | 500000 cycles |
| On-Load Factor | 10 % |
| Power Required In Va | 25 AC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2011001 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2011001 |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-55 °C |
| Ip Degree Of Protection | IP2XIEC 60529 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Protective Treatment | THIEC 60068 |
